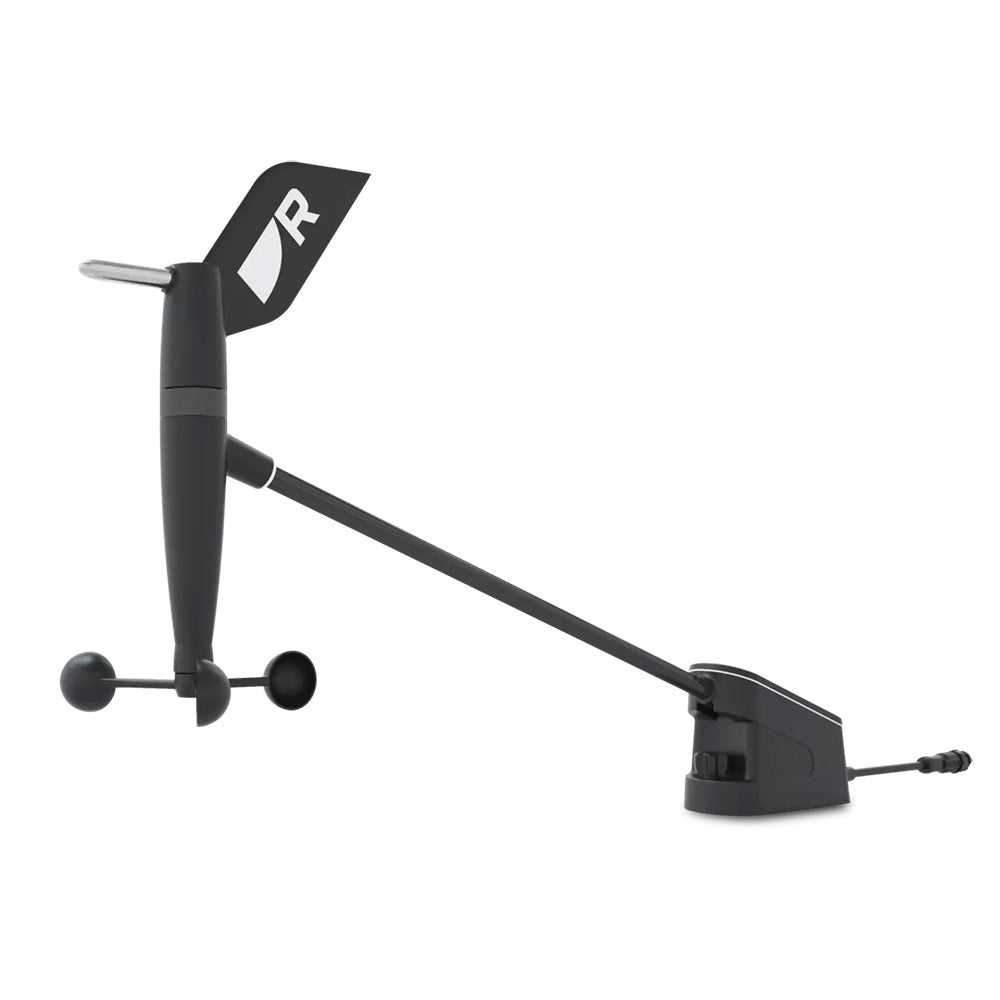

Raymarine RSW Wired Smart Wind Transducer, Short Arm – Ultrasonic, 30M Cable

Elevate your sailing experience with the Raymarine RSW Wired Smart Wind Transducer. This professional-level wind sensor, honored with the prestigious Dame Award, delivers exceptional accuracy and reliability without complex calibration or expensive processors. Utilizing advanced ultrasonic technology and an integrated 3D motion sensor, it provides precise wind speed and direction data, compensating for vessel pitch, roll, mast twist, and bend. Sail smarter and gain a competitive edge with trusted true wind data at your fingertips. Upgrade your marine electronics today for unparalleled wind awareness.

In the Box:

• Raymarine RSW Wired Wind Transducer
• Smart Wind Wired Gateway
• 30m (98.43 ft) Mast Cable
• SeaTalk NG to DeviceNet Adaptor Cable, 120 mm (4.72 in)
• No.10 x 3/4" Self-Tapping Screws x 4 (for transducer mounting)
• No.7 x 3/4" Self-Tapping Screws x 2 (for gateway mounting)
• 40 mm (1.57 in) Heat Shrink Tube
• Ring Crimp Terminal
• Documentation

Key Benefits & Specifications:

• Ultrasonic Wind Measurement: Delivers precise wind speed and direction with no moving parts, eliminating mechanical wear and maintenance.
• Expert-Level Accuracy: Smart Wind technology provides calibrated data without extensive setup, compensating for mast dynamics and up-wash against sails.
• Integrated 3D Motion Sensor: AHRS technology accounts for vessel pitch and roll, ensuring improved true wind accuracy.
• Robust Environmental Resistance: Withstands wind speeds up to 115 mph (185 kph) and operates in temperatures from -25°C to +55°C (-13°F to +131°F).
• Superior Waterproofing: Wind transducer rated IPx6/IPx7, and wired gateway rated IPx3 for reliable performance in harsh marine conditions.
• Seamless Network Integration: Features NMEA 2000 LEN of 1 and connects directly to your SeaTalkng / NMEA2000 network for broad compatibility.
• Durable Construction: Lightweight yet strong carbon fiber arm built for life at sea.

Compatibility & Pairings:

Integrates flawlessly with Raymarine Alpha Performance Displays, Axiom Chartplotters, i70s instruments, Evolution autopilots, and other SeaTalkng-based systems, enhancing your navigation and performance sailing decisions.
