Product details

Review the details before ordering.

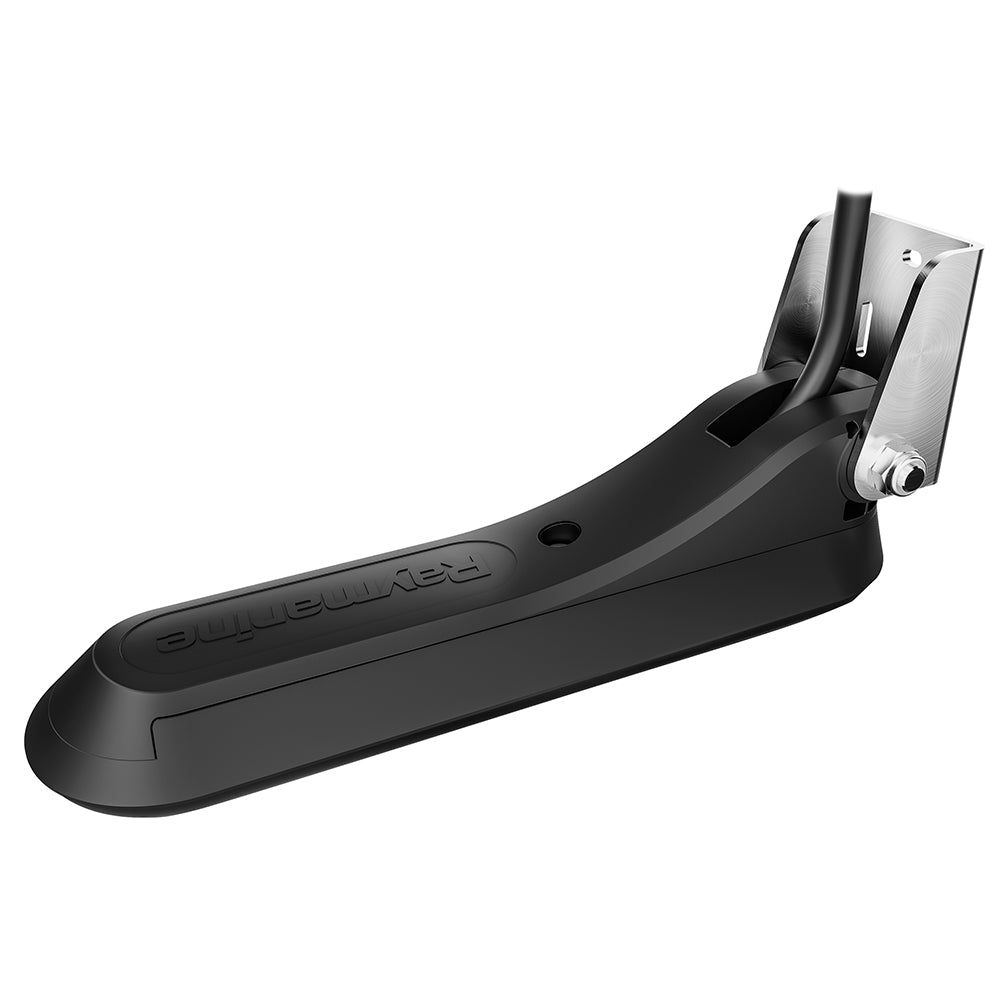

Uncover the underwater world with unprecedented clarity using the Raymarine RV-100 RealVision 3D All-In-One Transom Mount Transducer. This advanced 4-channel, Wide Spectrum CHIRP transducer delivers lifelike RealVision 3D sonar imagery, combining DownVision, SideVision, and high-frequency CHIRP fish targeting into a single unit. Equipped with a built-in Attitude and Heading Reference System (AHRS), the RV-100 actively stabilizes sonar imagery, compensating for vessel motion to provide crystal-clear views even in challenging conditions. Enhance your fishing and navigation experience with this robust, high-performance transducer.

In the Box:

  • RV-100 All-In-One Transom Mount Transducer with 8-meter (26-foot) cable
  • Transom bracket
  • Mounting hardware
  • Installation instructions

Key Features & Benefits:

  • Comprehensive Sonar Capabilities: Integrates RealVision 3D, DownVision, SideVision, and high-frequency CHIRP sonar for a complete underwater view.
  • Gyro-Stabilized Imagery: Built-in AHRS technology compensates for vessel motion, ensuring stable and lifelike 3D sonar views in waves and while maneuvering.
  • Precise Temperature Readings: Features a fast-response water temperature sensor for quick, accurate readings.
  • Durable Transom Mount: Designed for easy transom mounting on outboard-powered boats, featuring a rugged, marine-grade stainless steel bracket with an integrated kick-up system to prevent damage from underwater strikes.
  • Optimal Depth Performance: Achieves maximum depths of 900 feet for traditional sonar, and 300 feet for RealVision 3D, DownVision, and SideVision.
  • Extended Reach: Comes with a generous 26-foot (8-meter) cable for flexible installation.

Compatibility & Pairings:

The Raymarine RV-100 is fully compatible with Raymarine Axiom and Axiom Pro Multifunction Displays, providing seamless integration for detailed sonar and navigation. Optional stainless steel Jack-Plate mounting brackets and step-mounting brackets are available (sold separately) for specialized hull types like bass boats, flats boats, and stepped hull vessels.
