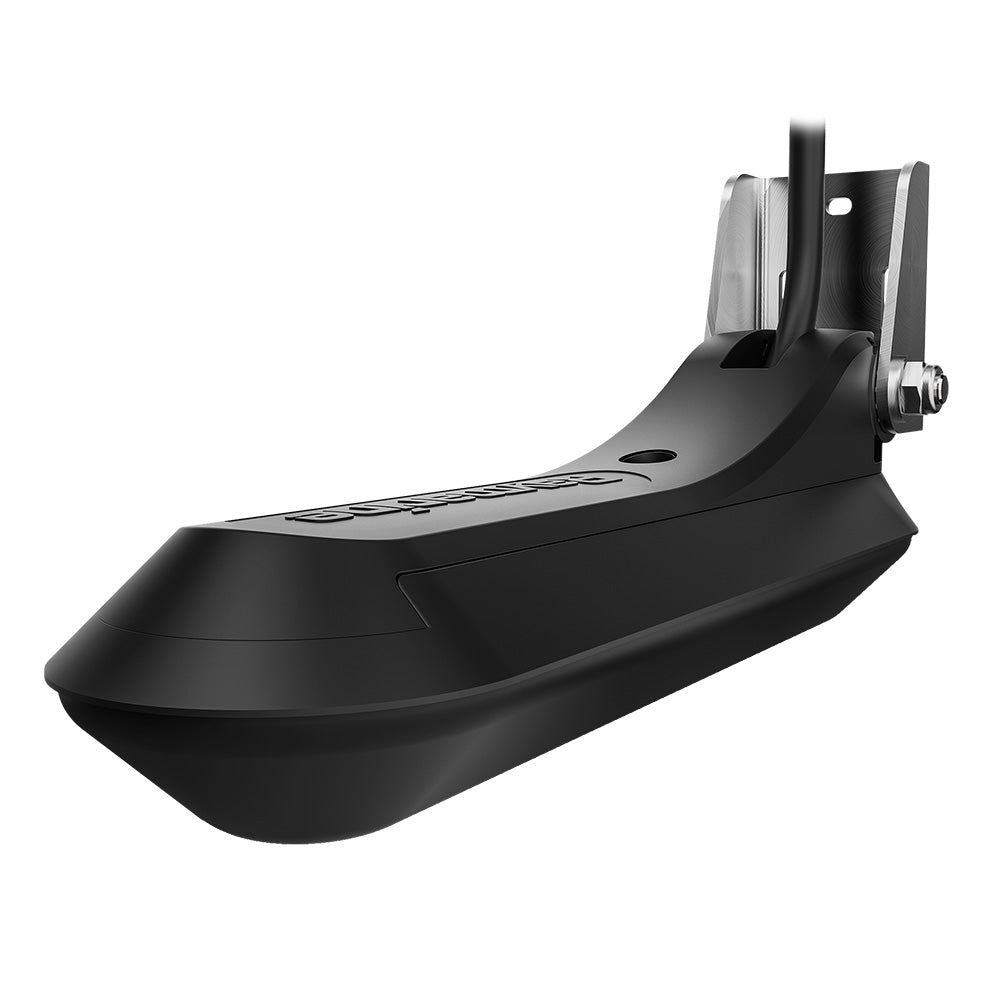

Raymarine RVM-100 Transom Mount Transducer with RealVision MAX Sonar

Experience unparalleled underwater clarity with the Raymarine RVM-100 Transom Mount Transducer. Engineered with advanced RealVision MAX technology, this all-in-one transducer delivers life-like imaging of structures and effortless fish identification, transforming your marine navigation and fishing experience. Its robust design and innovative features ensure precise performance even in challenging conditions. Upgrade your vessel with cutting-edge sonar technology today.

In the Box:

• RVM-100 Transducer with 8-meter (26.2 ft) cable
• Transducer mounting bracket
• Escutcheon plate
• Cable clips (x5)
• Cable connector kit (O-ring, split rings, locking collar, split ring fitting tool)
• Self-tapping screws for mounting (various sizes)
• M10 x 65 serrated bolt and serrated nylock nut
• Documentation

Key Benefits & Features:

• RealVision MAX Technology: Provides unparalleled, life-like clarity for easy identification of underwater structures and fish.
• 4-Channel Wide Spectrum CHIRP: Integrates DownVision, SideVision, high-frequency CHIRP fish targeting, and 3D sonar for a comprehensive view of the underwater environment.
• Built-in AHRS (Attitude and Heading Reference System): Stabilizes 3D sonar imagery by automatically compensating for vessel motion, ensuring accurate, distortion-free visuals in rough conditions.
• Fast-Response Water Temperature Sensor: Delivers instant and precise temperature readings, crucial for locating fish and planning underwater activities effectively.
• Rugged Stainless Steel Mounting Bracket: Designed for easy transom mounting on outboard-powered motor boats, featuring an integrated kick-up to prevent damage from debris strikes.
• Multi-Channel Depth Capability: Offers a maximum depth of 1200ft for CHIRP Sonar, 600ft for DownVision, and 300ft for SideVision and RealVision MAX 3D.
• Powerful 600-Watt Output: Delivers robust traditional CHIRP performance at 200 kHz for reliable fish targeting.
• 8-Meter (26.2 ft) Cable: Provides ample length for flexible and convenient installation on various boat sizes.
• Superior Waterproofing: Rated IPx6 (for surfaces exterior to hull only), IPx7, and IPx8, ensuring durability and performance in harsh marine environments.

Compatibility & Pairings:

• Compatible with Raymarine RealVision MAX sonar modules and RealVision MAX equipped chartplotters, including Axiom 2 Pro RVM series and RVM1600 Sounder Modules.
• For bass boats, flats boats, and skiffs, optional stainless steel Jack-Plate mounting bracket (A80480) and spacer kit (A80482) are available.
• For stepped hull vessels, an optional stainless steel step-mounting bracket (A80479) is available (sold separately).
