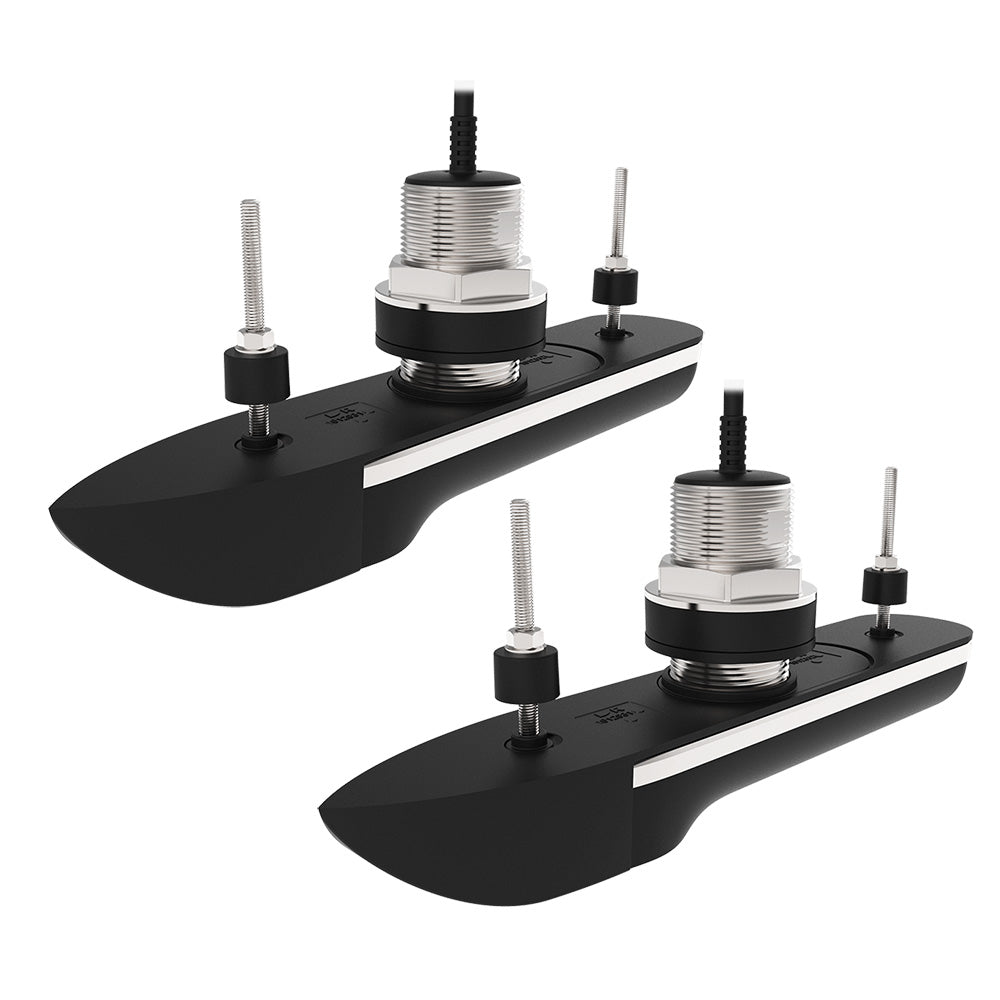

Raymarine RVM-420 Stainless Steel Thru-Hull Transducer Pair, 20 deg

Experience unparalleled underwater clarity and detail with the Raymarine RVM-420 Stainless Steel Thru-Hull Transducer Pair. Engineered for serious anglers and mariners, this all-in-one sonar solution combines DownVision™, SideVision™, 600-Watt High CHIRP, and RealVision MAX 3D sonar capabilities to deliver a comprehensive view of the marine environment. Its integrated Attitude and Heading Reference System (AHRS) actively stabilizes 3D sonar imagery, ensuring consistently clear and accurate readings even in challenging sea conditions. Upgrade your marine electronics today for a superior understanding of the world beneath your hull.

In the Box:

• Raymarine RVM-420 Port Thru-Hull Transducer
• Raymarine RVM-420 Starboard Thru-Hull Transducer
• Y-Cable Harness (2 meters)
• 8-Meter Transducer Extension Cable

Key Benefits & Specifications:

• Advanced Multi-Sonar Technology: Features DownVision™, SideVision™, 600-Watt High CHIRP, and RealVision MAX 3D sonar to provide a comprehensive underwater view.
• Stable 3D Imagery: Built-in AHRS (Attitude and Heading Reference System) compensates for vessel motion, filtering out distortions from waves and swells for clear 3D sonar returns.
• Optimized for Deadrise: Designed for hulls with 15° to 25° of deadrise, featuring 20° tilted elements to ensure sonar beam patterns are correctly aligned for maximum performance.
• Rugged Stainless Steel Construction: Durable thru-hull design suitable for fiberglass, wood, or metal hulls, with a low-profile form factor to minimize drag.
• Integrated Temperature Sensor: Provides fast-response, accurate water temperature readings directly to your display.
• Extended Reach: Includes a 2-meter Y-cable and an 8-meter extension cable, totaling a 10-meter cable length for flexible installation.
• Deep Sonar Capabilities: Achieve maximum depths of 1200ft for CHIRP Sonar, 600ft for DownVision, and 300ft for SideVision and RealVision MAX 3D.

Compatibility & Pairings:

• Fully compatible with Raymarine Axiom 2 Pro RVM series multifunction displays.
• Works seamlessly with the Raymarine RVM1600 Sonar Module for enhanced sounder performance.
