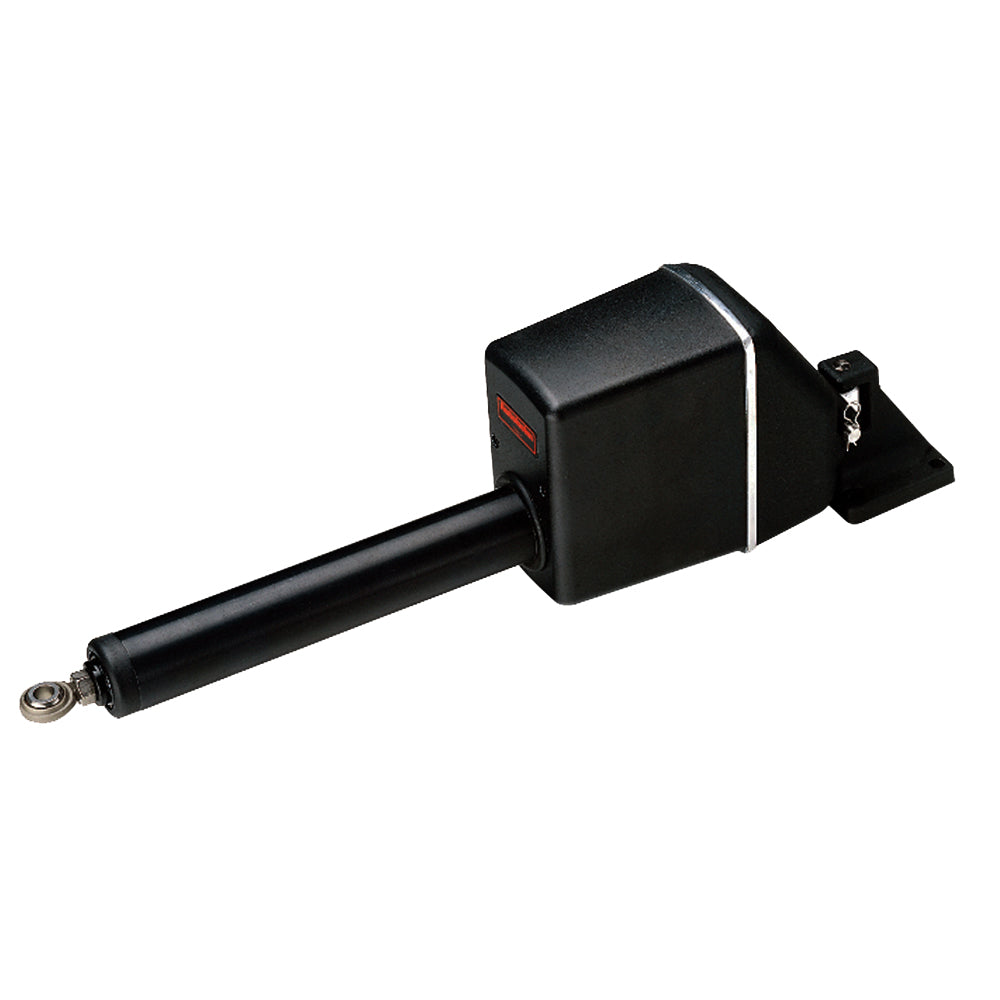

Raymarine Type 2 Short-Stroke Linear Drive, 12V (M81131)

Achieve precise and reliable autopilot control with the Raymarine Type 2 Short-Stroke Linear Drive. Engineered for mechanically steered vessels up to 33,000 lbs (15,000 kg), this robust 12V drive delivers powerful thrust, fast hard-over times, and quiet operation, ensuring your vessel stays on course with minimal effort. Its below-decks mounting and high-grade design provide an extended lifespan, making it an essential upgrade for enhanced navigation and steering performance. Upgrade your vessel's autopilot system for unmatched reliability and control today.

Key Benefits & Specifications:

• Broad Vessel Compatibility: Supports mechanically steered vessels with a maximum displacement of up to 33,000 lbs (15,000 kg), suitable for a wide range of boats.
• Responsive Steering Control: Delivers a peak thrust of 1,050 lbs (480 kg) and rapid 11-second hard-over to hard-over times for immediate and effective rudder adjustments.
• Minimized Steering Interference: Features low backdrive force, ensuring natural and unobstructed manual steering when the autopilot is in standby mode.
• Robust Power Transmission: Incorporates a powerful electric motor, an electromagnetic fail-safe clutch, a high-tensile belt drive, and an epicyclic gearbox for durable and efficient operation.
• Optimal Rudder Movement: Provides a maximum stroke of 300 mm (12 inches), allowing for full and effective rudder control.
• Efficient Power Consumption: Operates with a power consumption of 48-72 W, ensuring efficient use of your vessel's 12V DC electrical system.

Compatibility & Pairings:

This Raymarine Type 2 Short-Stroke Linear Drive (M81131) is designed for seamless integration with Raymarine Evolution Autopilot systems and requires an ACU-400 Actuator Control Unit for full functionality. Accessory fittings from your steering system manufacturer may be required for installation to the rudder stock via an independent tiller arm.
