Ronstan 40QT Orbit Winch with QuickTrim, 39.5:1 Power Ratio

Achieve superior control and efficiency on the water with the Ronstan 40QT Orbit Winch. Engineered for high-performance sailing, this lightweight, two-speed self-tailing winch features a patented QuickTrim™ system for rapid sail adjustments without removing the handle, ensuring precise handling in demanding conditions. Its innovative design, drawing on the heritage of Andersen winches, delivers impressive line grip and minimal rope wear, making it a reliable component for serious marine applications. Elevate your vessel's performance and enjoy effortless trimming with Ronstan's cutting-edge technology.

Key Features & Benefits:

• Lightweight Machined Aluminum Drum with Power Ribs™: Ensures superior, controlled rope grip and significantly reduces rope wear, outperforming traditional cast aluminum drums in both strength and weight.
• Patented QuickTrim™ Self-Tailer: Allows sailors to conveniently and safely ease line tension for minor sail trim adjustments without removing the winch handle or taking the line out of the self-tailer, offering an unmatched advantage for frequent adjustments.
• Tool-Free Servicing: Designed for easy disassembly and reassembly without the need for any tools, simplifying maintenance and extending the winch's lifespan.
• Versatile Line Capacity: Sprung self-tailing jaws accept line sizes from 7-12mm, providing secure and consistent handling for a wide range of rigging.

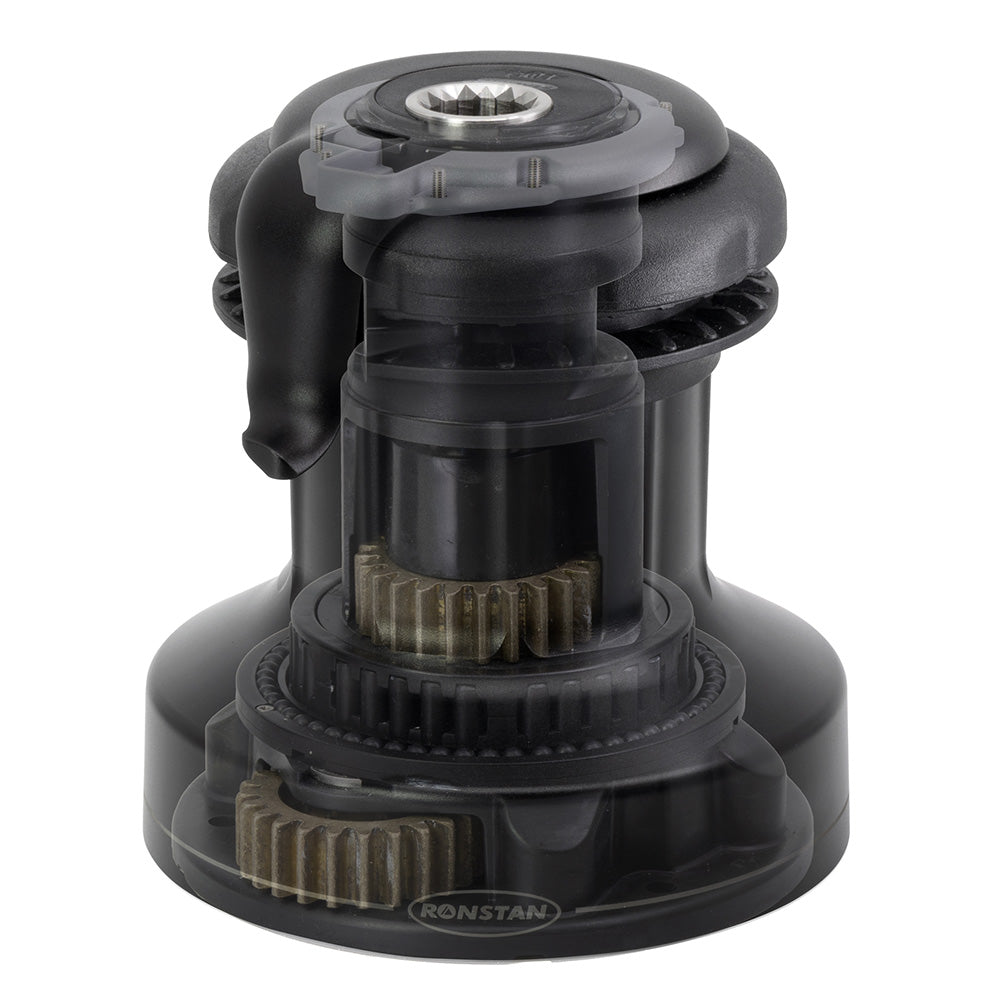

• Proven Gearing Configuration: Utilizes the reliable Andersen winch gearing configuration for smooth, durable, two-speed operation.
• Durable Marine-Grade Construction: Features a hard anodized aluminum drum and center stem, Grade 316 stainless steel shaft and pawls, and aluminum bronze gears for maximum corrosion resistance and longevity in harsh marine environments.

Specifications:

• Weight: 3.1 kg (6.82 lbs)
• Power Ratio (2nd Speed): 39.5:1
• Maximum Pulling Load: 850 kg (1,870 lbs)
• Base Diameter: 151 mm (5 15/16 inches)
• Drum Diameter: 86 mm (3 3/8 inches)
• Height: 166 mm (6 1/2 inches)
• Line Entry Height: 57 mm (2 1/4 inches)
• Recommended Max Boat Length: 40 ft (12 m)
• Gear Ratio 1st Speed: 1.4:1
• Gear Ratio 2nd Speed: 6.8:1
• Power Ratio 1st Speed: 8.3:1
