Brand: Ronstan
Ronstan Series 25 High Load Lashing Orbit Block (RF28109HL)
Ronstan Series 25 High Load Lashing Orbit Block (RF28109HL)
4 available
About this product

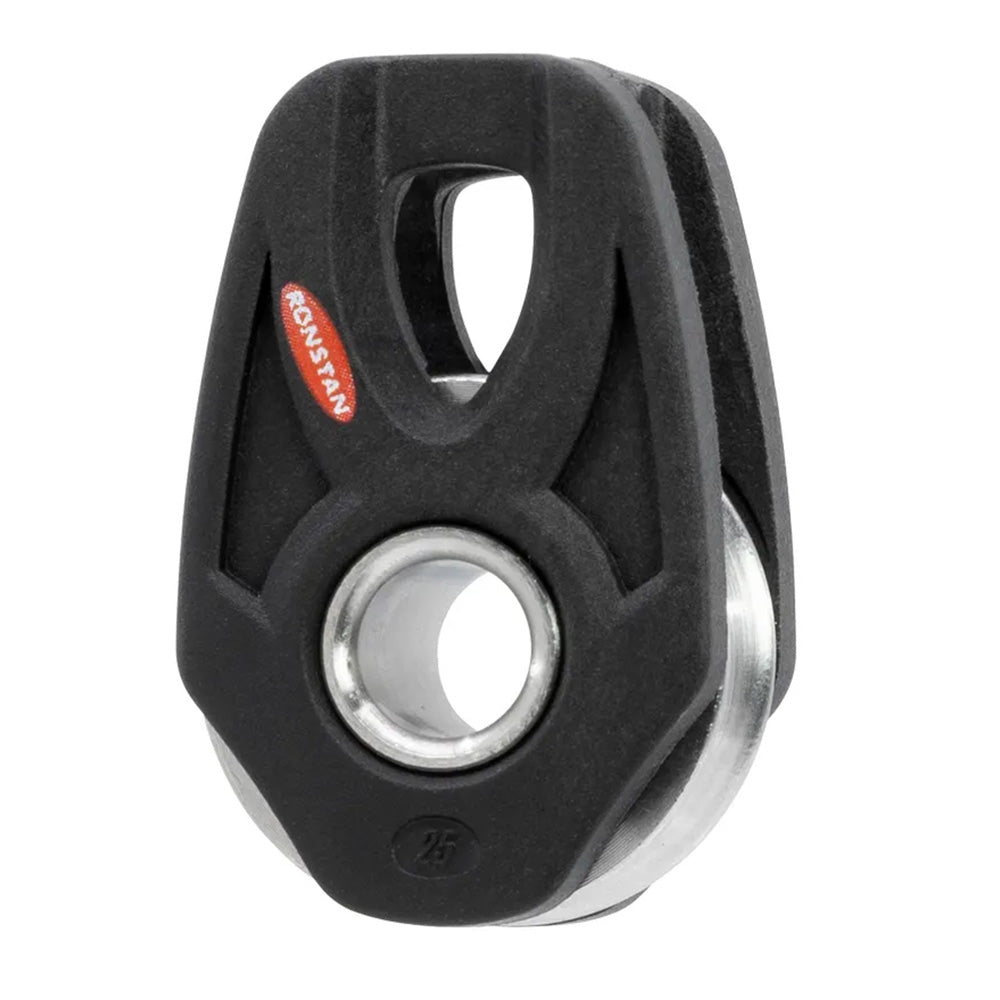

The Ronstan Series 25 High Load (HHL) Lashing Orbit Block is a single sheave, ball-bearing block engineered for high-demand performance in dinghy and small boat rigging. This compact 25mm block features a stainless steel hub designed for versatile lashing attachments and through-sheave becket functionality.
Built for modern performance and foiling boats that require small-diameter lines to carry significant loads, this HHL variant utilizes a Grade 2205 stainless steel sheave and bearing race with Grade 304 stainless steel ball bearings.
- Sheave diameter: 1 in.
- Max. rope diameter: 5/16 in.
- Max. lashing diameter: 5/32 in. (4mm)
- Maximum Working Load (M.W.L.): 880 lbs.
- Breaking Load (B.L.): 2650 lbs.
- Weight: 1.2 oz.
- Materials: Glass fiber reinforced nylon cheeks with Grade 2205 stainless steel sheave and race.
- Applications: Mainsheet and spinnaker sheet turning blocks for dinghies up to 13 ft., control lines, cascading vangs, leech lines, and cunningham systems.
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-116820
- Model / MPN
- RF28109HL
- UPC / GTIN
- 9316800661930
- Package dimensions (H × W × L)
- 1" X 2" X 4"
- Package weight
- 0.02 lb
Specifications
- Type
- Ronstan Series 25 Ball Bearing HHL Lashing Orbit Block™
