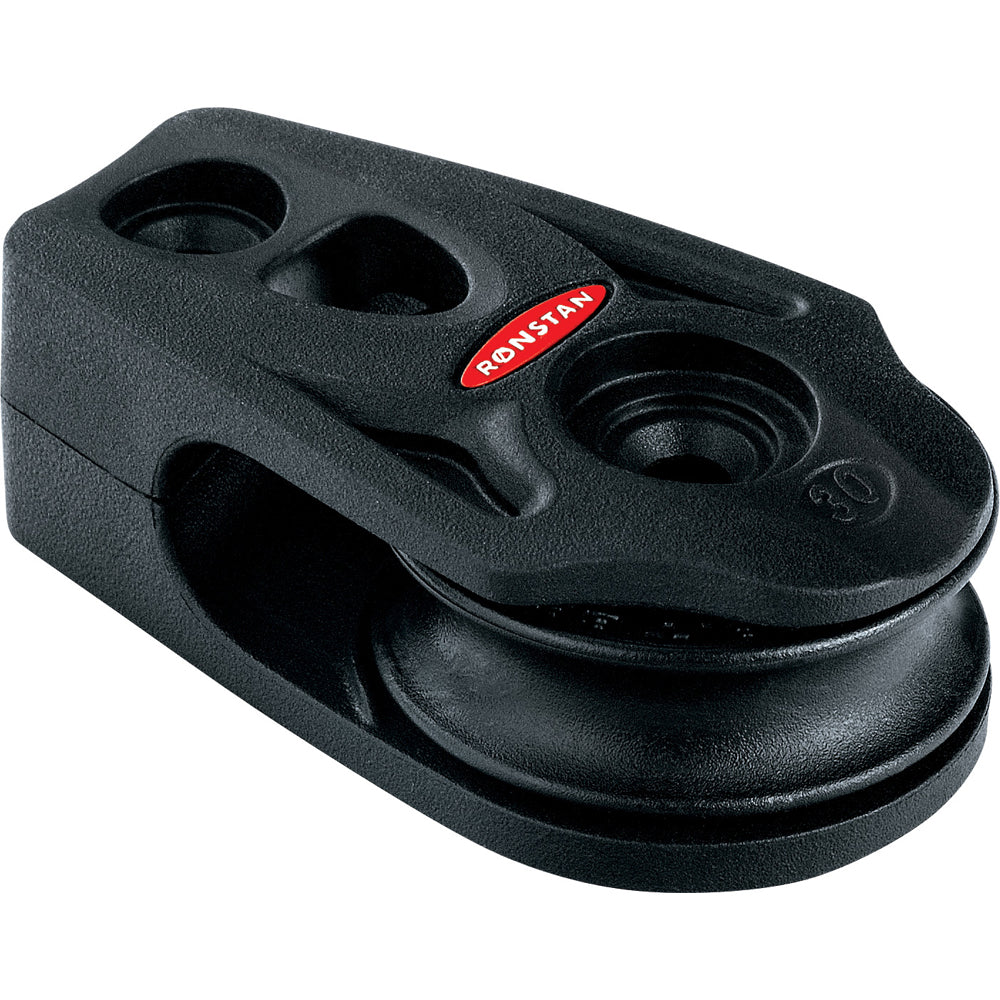

• Ronstan Series 30 Orbit Block - Cheek, 30mm
1 1

Brand: Ronstan

Ronstan Series 30 Orbit Block - Cheek, 30mm

Ronstan Series 30 Orbit Block - Cheek, 30mm

$19.25
$19.25
Sale Sold out
Shipping calculated at checkout.

9 available

About this product

The Ronstan Series 30 Ball Bearing Orbit Block is a cheek-mount block engineered for a high strength-to-weight ratio. It features a precision design that optimizes the number of ball bearings to minimize friction, utilizing fiber-reinforced composites to reduce overall weight.

Key Features and Specifications:

  • Sheave diameter: 30mm (1-3/16 in.)
  • Maximum rope diameter: 8mm (5/16 in.)
  • Maximum Working Load (M.W.L.): 300kg (660 lbs.)
  • Breaking Load (B.L.): 600kg (1,320 lbs.)
  • Weight: 21g (0.7 oz.)
  • Sheave material: High compression strength carbon black Acetal
  • Ball bearing material: High compression strength Acetal
  • Frame and cheek material: Toughened, glass fiber reinforced Nylon
  • Link material: UV stabilized, multi-strand impregnated SK75 Dyneema
  • Design features: Lightweight, low profile, and compact construction

Recommended Applications:

  • Mainsheet and spinnaker sheet systems on dinghies up to 5m (16 ft.)
  • Halyard, vang, and backstay applications on boats up to 5m (16 ft.)
  • Control line applications on larger yachts

Manuals & videos

  • Secure checkout
  • 21-day return requests
  • Free standard shipping $100+

Product facts

CT SKU
CT-103696
Model / MPN
RF35151
UPC / GTIN
9316800404964
Package dimensions (H × W × L)
1" X 2" X 4"
Package weight
0.06 lb
Country of origin
INDONESIA
