Brand: Ronstan

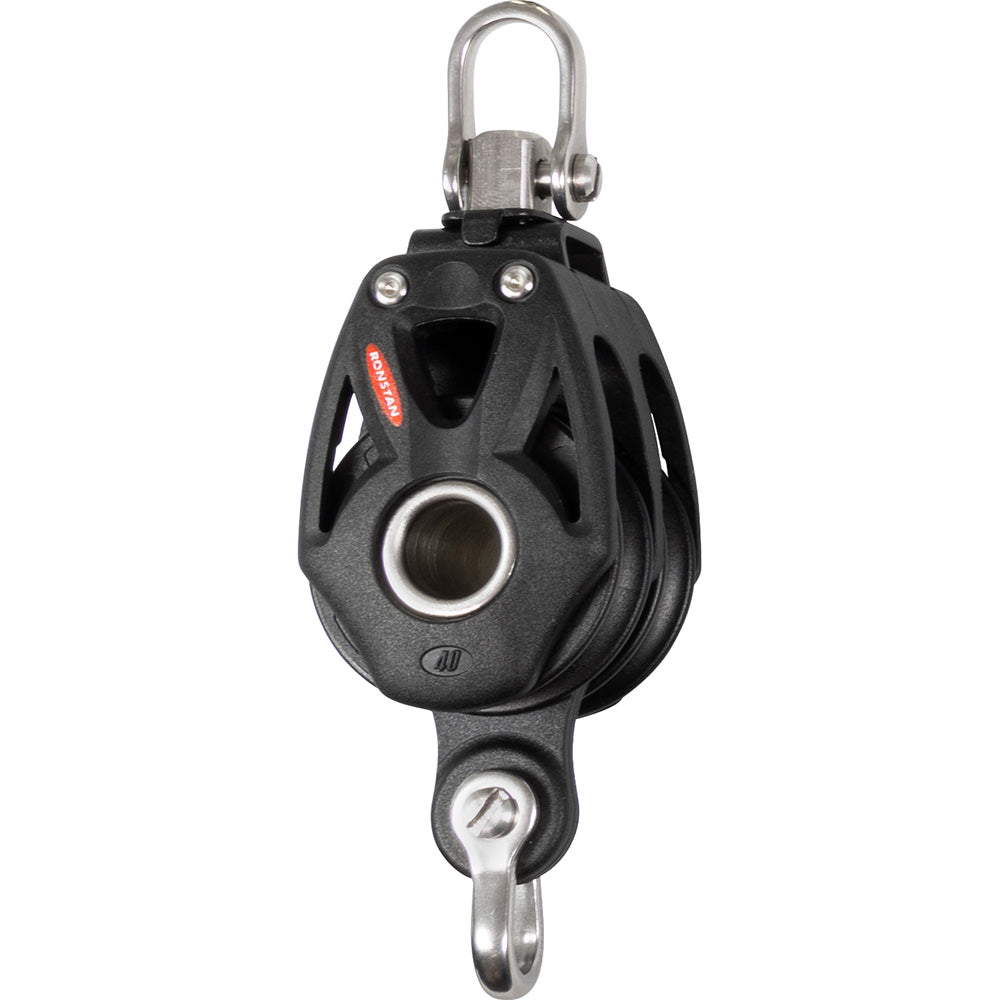

Ronstan Series 40 Orbit Double Block with Becket and Swivel Shackle (RF48210)
Ronstan Series 40 Orbit Double Block with Becket and Swivel Shackle (RF48210)
5 available
About this product
The Ronstan Series 40 Orbit Double Block with becket and swivel shackle provides a balance of strength and performance for various marine rigging applications. These blocks feature a 2-stage bearing system that utilizes ball bearings for minimal friction, supported by a secondary full-contact bearing to ensure efficiency across the full working load range. The cheeks are constructed from lightweight, glass fiber-reinforced nylon, offering a high-strength alternative to traditional stainless steel straps.
- Sheave Diameter: 1-9/16"
- Maximum Rope Diameter: 3/8"
- Pin Diameter: 5/32"
- Maximum Working Load: 1320 lb.
- Breaking Load: 2650 lb.
- Weight: 4.6 oz.
These blocks are suitable for mainsheet systems and spinnaker sheets on dinghies, off-the-beach catamarans, and sportsboats up to 8m (26ft), as well as halyard, vang, and backstay applications on boats up to 9m (30ft).
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-112189
- Model / MPN
- RF48210
- UPC / GTIN
- 9316800625529
- Package dimensions (H × W × L)
- 2" X 3" X 5"
- Package weight
- 0.3 lb
Specifications
- Type
- Ronstan Series 40 Orbit BB Double Block w/Becket & Swivel Sh
