Brand: Ronstan

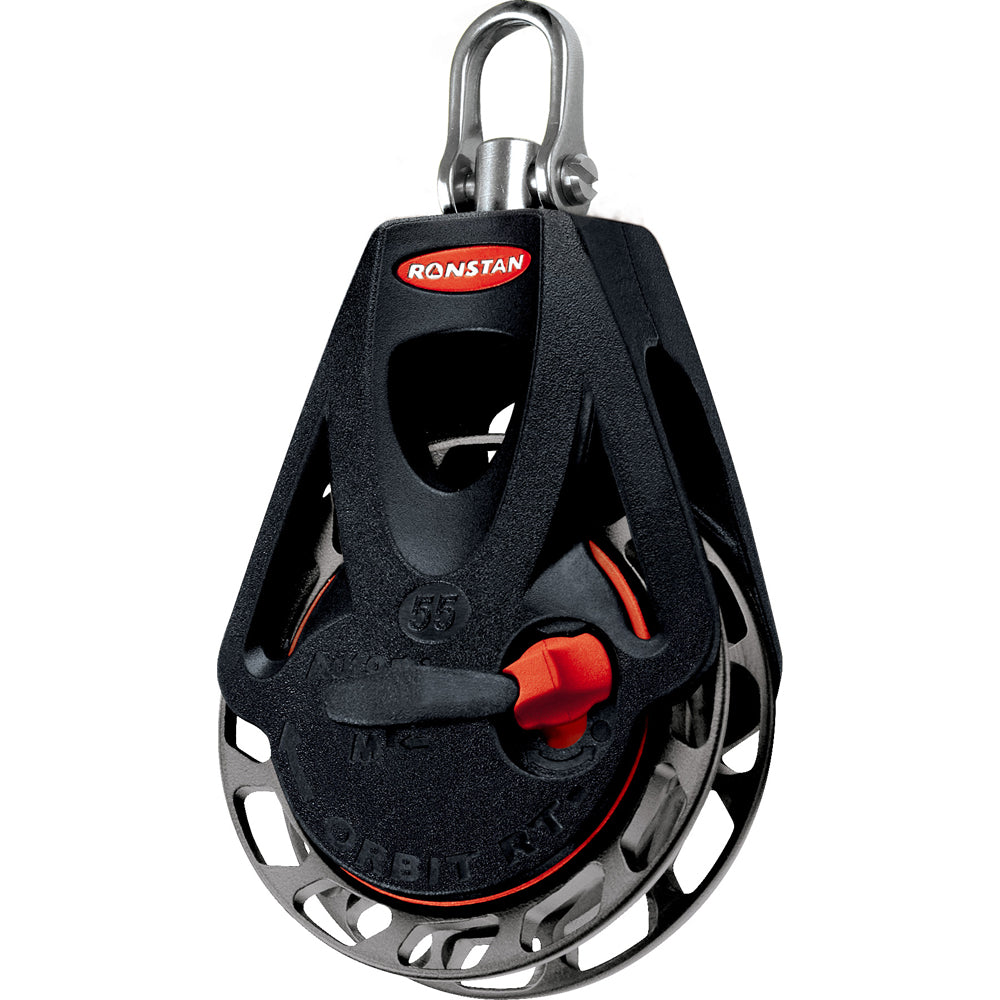

Ronstan Series 55 Orbit Ratchet Block, Single Swivel Head, RF56100
Ronstan Series 55 Orbit Ratchet Block, Single Swivel Head, RF56100
Sold out
The Ronstan Series 55 Orbit Ratchet Block features both automatic and manual engagement modes, allowing sailors to tailor the ratchet performance to their specific needs. In auto mode, the ratchet engages under load and releases when the tension is eased, facilitating smooth gybes and rapid sheet management. The manual mode allows the ratchet to be switched on or off as desired, providing consistent control for mainsheet systems.
This high-performance block utilizes Generation 2 sheave geometry with 12 straight-resistance gripping faces to provide up to 20:1 holding power while minimizing rope wear. It is engineered with a swivel shackle head for unlimited rotation and is suitable for use on dinghies, sportsboats, and small keel boats up to 8m (26').
Key Features:
- Automatic and manual ratchet engagement modes
- Swivel shackle head made of 316-grade stainless steel
- Hard-anodized aluminum sheave
- High compression strength carbon black Acetal ball bearings
- Toughened, glass fiber reinforced nylon cheeks
- UV-stabilized, multi-strand SK75 Dyneema rope link
- Compatible with ropes up to 10mm (1/2")
- Maximum working load: 250kg (550 lbs)
- Breaking load: 650kg (1,430 lbs)
- Sheave diameter: 55mm (2")
- Weight: 82g (2.9 oz)
- Manufacturer Part Number: RF56100
Product facts
- CT SKU
- CT-103720
- Model / MPN
- RF56100
- UPC / GTIN
- 9316800440375
- Package dimensions
- 1" X 2" X 3"
- Package weight
- 0.21 lb
Fit-sensitive item: confirm measurements, model numbers, and manufacturer details before ordering. Tug & Tow does not guarantee universal compatibility from a product page alone.
