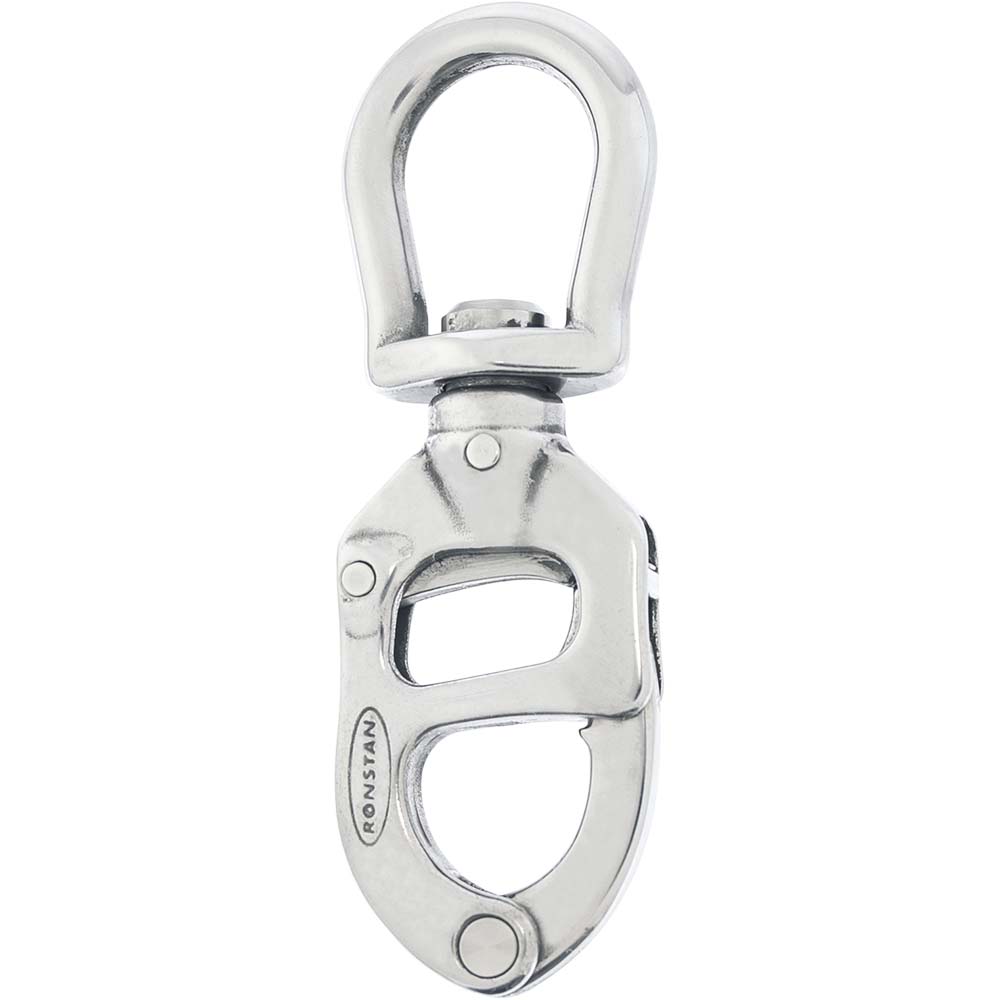

Ronstan Series 100 TriggerSnap™ Shackle, 89mm Large Swivel Bail

Ronstan Series 100 TriggerSnap™ Shackle, 89mm Large Swivel Bail

SKUCT-110550

$169.88
$169.88
Sale Sold out
Shipping calculated at checkout.
Shipping rewards at $100 U.S. orders of $100 or more get free standard shipping, plus $10 off Expedited and Overnight.

Out of stock

Use the Tug & Tow SKUInclude this SKU when you contact us about fit, availability, or reorders.
Delivery shown at checkoutShipping options, final costs, and delivery estimates appear before payment.
Check fit before orderingReview dimensions, part numbers, model details, and compatibility notes.
Confirm the details before checkoutFit can depend on your boat, RV, trailer, vehicle, or equipment. Contact us before ordering if compatibility is critical.Ask a product question

Product details

Review the details before ordering.

Experience unparalleled reliability and rapid operation with the Ronstan Series 100 TriggerSnap™ Shackle. Engineered from heat-treated, investment cast 15-5PH stainless steel, this shackle provides exceptional strength and superior corrosion resistance for the most demanding marine environments. Its innovative trigger mechanism allows for swift, one-handed attachment and safe release, even under load, making it an indispensable component for high-performance sailing. Each shackle is individually proof-load tested and stamped for complete traceability, ensuring unwavering quality. Upgrade your rigging with Ronstan's trusted performance today.

Key Benefits:
  • Intuitive TriggerSnap™ Latch: Designed for quick, one-handed attachment and safe release, enhancing efficiency and safety during critical maneuvers, even when under load.
  • Premium Marine-Grade Construction: Crafted from heat-treated, investment cast 15-5PH stainless steel for the body, bail, latch, and trigger, complemented by Grade 316 stainless steel rivets and spring, ensuring maximum strength and exceptional corrosion resistance in harsh saltwater conditions.
  • Certified Strength & Traceability: Individually proof-load tested to a 1000 kg (2205 lb) Maximum Working Load (MWL) and a 2000 kg (4410 lb) Breaking Load (BL), providing robust security. Each unit is stamped with a production code for full traceability, guaranteeing quality and performance.
  • Optimized Dimensions: Measures 89mm (3 1/2 inches) in length and features a large swivel bail, expertly designed to accommodate rope diameters up to 18mm, making it versatile for a wide range of rigging applications.
  • High Strength-to-Weight Ratio: Engineered for robust performance while maintaining a light weight of just 66g (2.3 oz), contributing to overall system efficiency without compromising durability.
Recommended Pairings:
  • Ideal for mainsheet, halyard, and spinnaker systems on dinghies, sportsboats, and small keelboats up to 9m (30ft).
  • Enhance release control under extreme loads with the Ronstan RF1322 Triggersnap™ Shackle Release Spike (sold separately).
