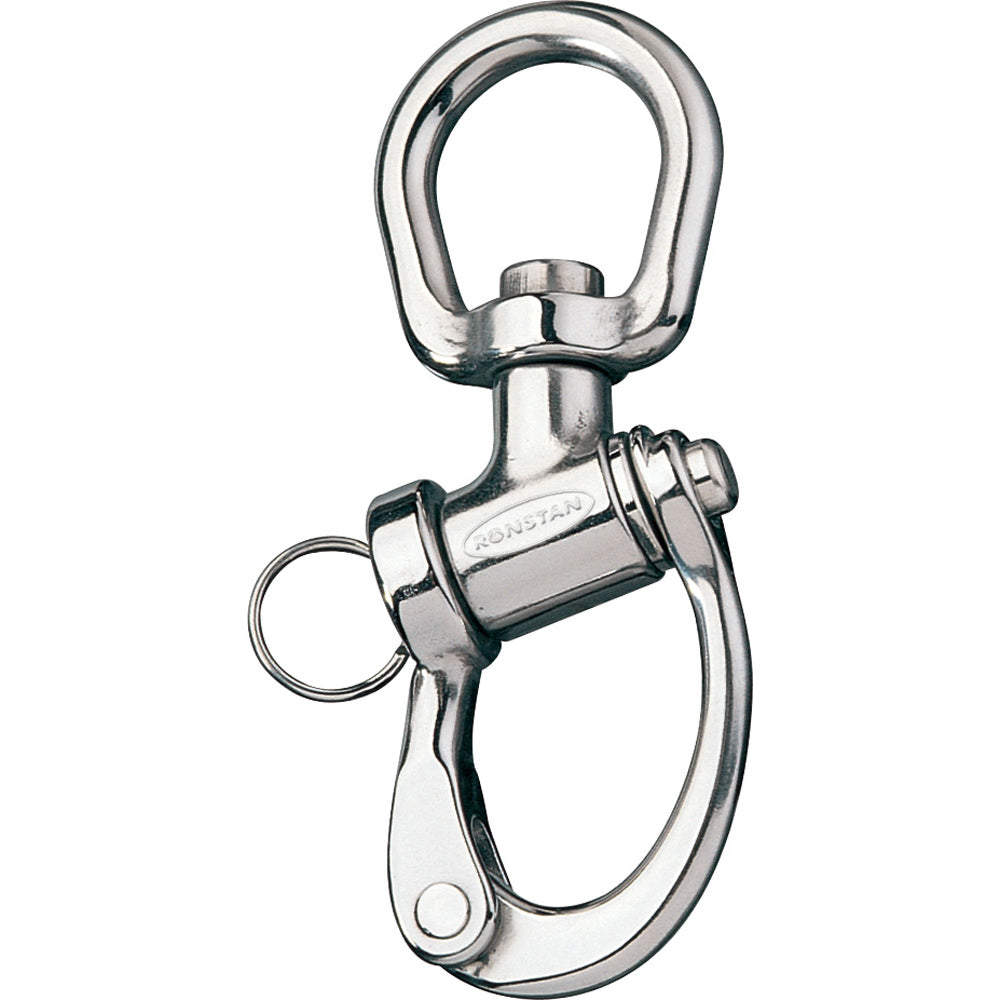

Ronstan Swiveling Large Bail Trunnion Snap Shackle, 122mm, 2980 lbs MWL

Optimize your marine rigging with the Ronstan Swiveling Large Bail Trunnion Snap Shackle. Engineered for demanding applications, its unique trunnion swivel head offers unparalleled articulation, ensuring optimal load orientation even in restricted spaces like perforated toe rails or low-profile pad eyes. Crafted for robust performance and dependable service, this shackle provides quick and secure connections essential for serious sailing. Upgrade your sailboat's hardware with Ronstan's trusted reliability.

Key Features & Benefits:

• Advanced Articulation: Trunnion swivel head allows both 360° rotation and side-to-side articulation, maintaining correct load orientation.
• High Strength Construction: Body, hasp, and bail are made from Grade 15-5PH investment cast stainless steel for superior durability.
• Corrosion Resistance: Plunger pin and spring are constructed from Grade 316 stainless steel, ensuring long-term resilience in harsh marine environments.
• Dependable Operation: Features heavy-duty plunger springs and precision components designed for consistent, reliable service.
• Easy Handling: Body and hasp profiles are designed to provide easy clearance for lines and fittings upon release. A spot-welded split ring on the plunger pin enhances security, and a lanyard can be attached for effortless opening.
• Impressive Load Capacity: Offers a Maximum Working Load (MWL) of 2980 lbs (1350 kg) and a Breaking Load (BL) of 5950 lbs (2700 kg), suitable for heavy-duty tasks.
• Compact & Lightweight Design: With a total length of 122mm (4-13/16") and a weight of just 7 oz (198 g), it provides a high strength-to-weight ratio.

Compatibility & Pairings:

• Suits RF6360 Replacement Plunger Pin Kit for easy maintenance.
