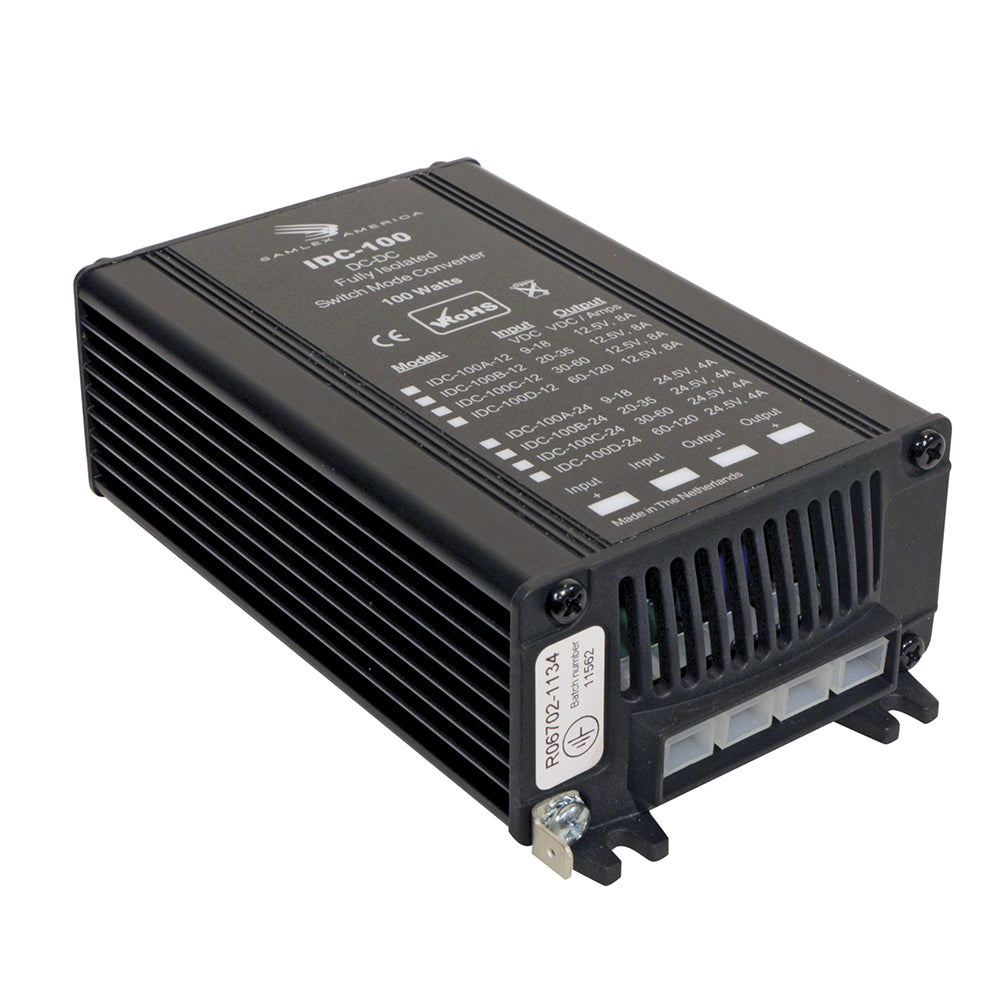

Samlex America IDC-100C-12 100W Fully Isolated DC-DC Converter, 30-60V Input to 12.5V Output

The Samlex America IDC-100C-12 is a 100-watt isolated DC-DC converter designed for applications requiring galvanic isolation between input and output. It provides a regulated 12.5V DC output from an input range of 30-60V DC, supporting a rated output current of 8 amps. This unit features a compact, durable housing and includes built-in protection against short circuits, overheating, overvoltage, and reverse polarity. It utilizes 1/4" push-on flat blade connectors for installation.

• Input Voltage: 30-60 VDC
• Output Voltage: 12.5 VDC
• Rated Output Current: 8 Amps
• Protection: Fold-back current limiting, short circuit, overheat, overvoltage, and reverse polarity
• Connectors: 1/4" push-on flat blade
• Dimensions: 6 in. x 3.5 in. x 1.9 in.
• Weight: 1.2 lbs. (0.54 kg)
• Compliance: CE Approved, EMI/EMC compliant (EN50081-1, EN50082-1)
• Warranty: 2-year limited

Typical applications include heavy trucks, buses, earth-moving equipment, marine vehicles, 12V lighting systems, and sound systems. Regulatory note: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
