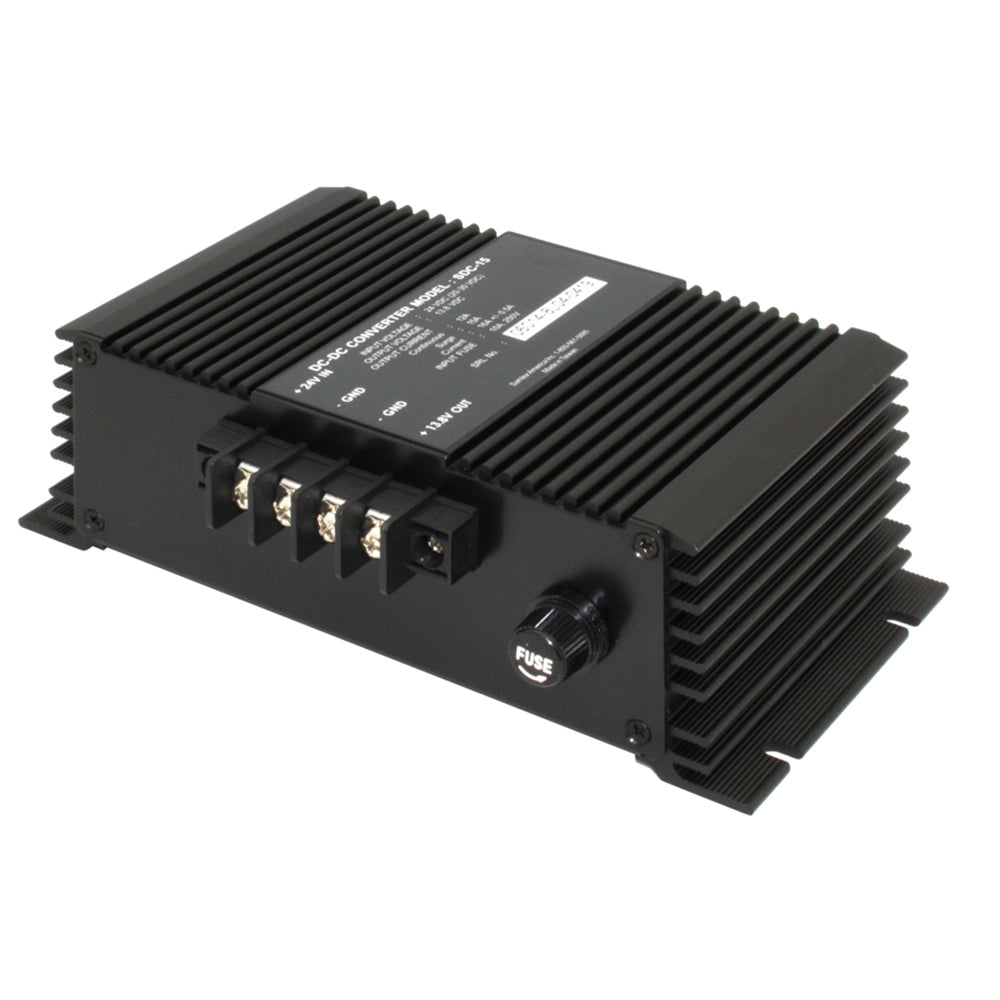

Samlex America SDC-15 12A Non-Isolated 24VDC to 12VDC Step-Down Converter

The Samlex America SDC-15 is a high-efficiency, switch-mode step-down DC-DC converter designed for heavy-duty applications. This unit converts a 24 VDC nominal input (20 VDC to 35 VDC range) to a regulated 13.8 VDC output at 12 Amps. It features a non-isolated design intended for use in negative ground systems and includes integrated circuit protection for reliable performance in automotive, marine, and industrial environments.

Key Features:

• Input voltage range: 20-35 VDC
• Output voltage: 13.8 VDC at 12 Amps
• Compact and lightweight construction for flexible mounting
• Integrated short-circuit, reverse polarity, and overvoltage protection
• Temperature-compensated current limiting
• Weight: 2 lbs (0.9 kg)
• Dimensions: 7.75 in x 5 in x 2.5 in
• Suitable for heavy trucks, buses, earth-moving equipment, marine vehicles, 12V lighting, and sound systems
• 2-year limited warranty

Regulatory note: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
