Brand: Samlex America

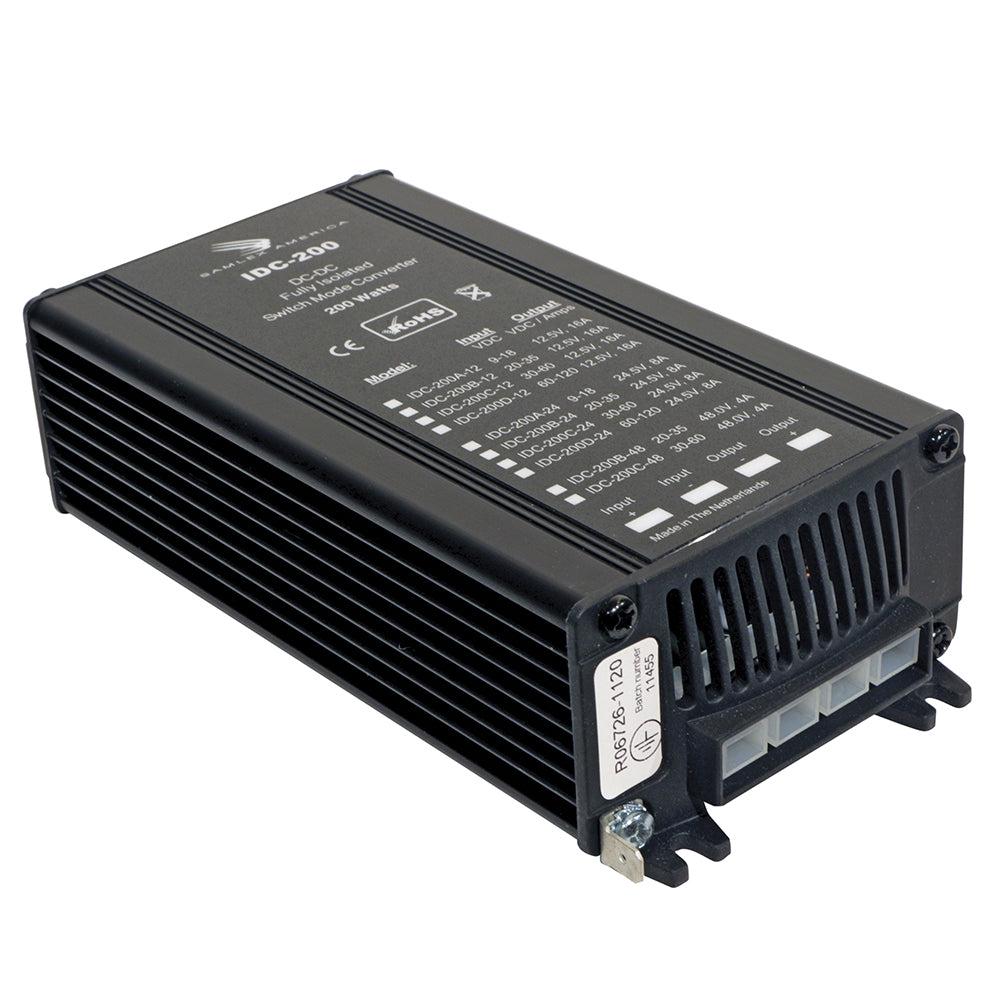

Samlex America IDC-200C-24 200W Fully Isolated DC-DC Converter, 30-60V Input to 24V Output
Samlex America IDC-200C-24 200W Fully Isolated DC-DC Converter, 30-60V Input to 24V Output
Sold out
About this product
The Samlex America IDC-200C-24 is a 200-watt fully isolated DC-DC converter designed for applications requiring galvanic isolation between input and output. This unit provides a highly regulated 24.5V output from an input range of 30-60V DC, with a rated output current of 8A at 60V input.
Key Features:
- Fully isolated design with fold-back current limiting
- Protection against short circuit, overheating, overvoltage, and reverse polarity
- Equipped with 1/4 in. push-on flat blade quick-disconnect connectors
- EMI/EMC compliant, conforming to EN50081-1 and EN50082-1 standards
- Compact design suitable for marine, heavy truck, bus, and earth-moving equipment applications
- Weight: 1.5 lbs (0.68 kg)
- Dimensions: 6.9 in. x 3.5 in. x 1.9 in.
- Two-year limited warranty
Regulatory Note: This product carries a California Proposition 65 warning regarding potential exposure to chemicals known to cause cancer, birth defects, or other reproductive harm.
Manuals & videos
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-105851
- Model / MPN
- IDC-200C-24
- UPC / GTIN
- 622988067280
- Package dimensions (H × W × L)
- 2" X 3" X 7"
- Package weight
- 1.5 lb
- Country of origin
- NETHERLANDS
Specifications
- Type
- Samlex 200W Fully Isolated DC-DC Converter - 8A - 30-60V Inp
