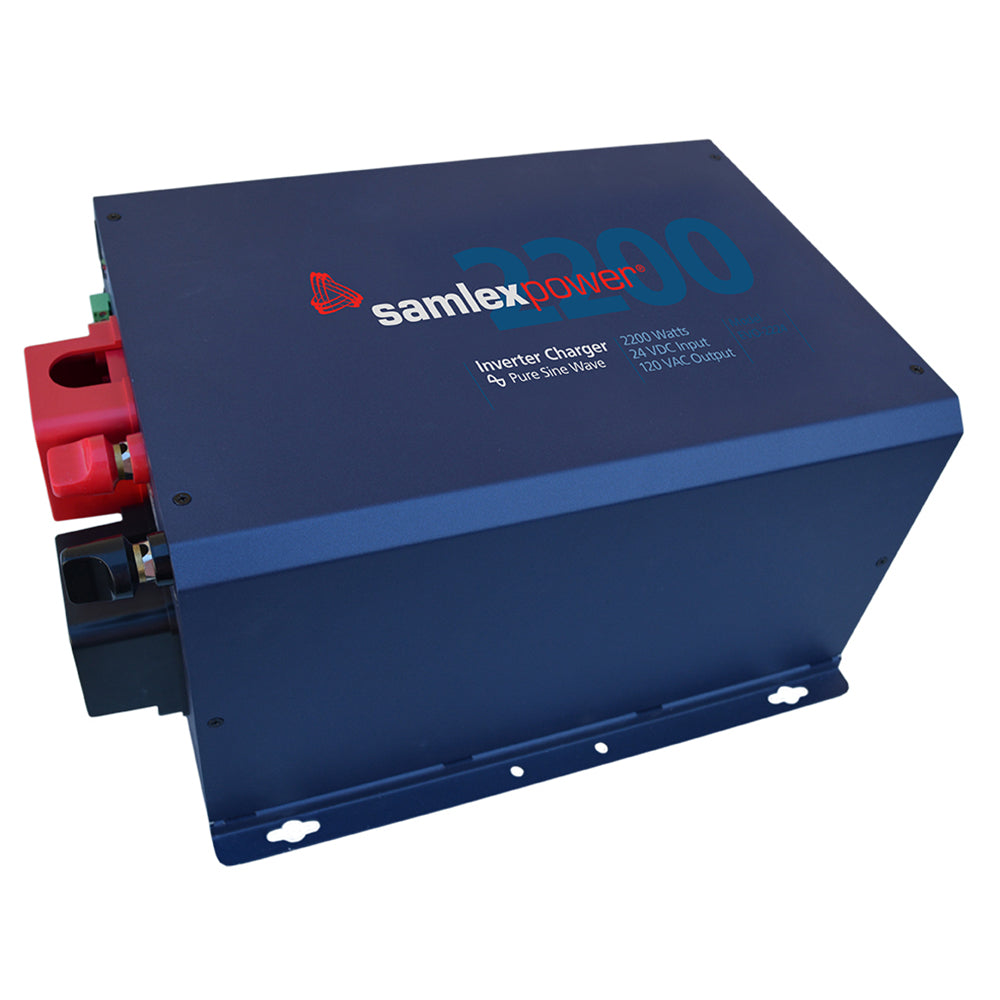

Samlex America EVO-2224 Evolution 2200W Pure Sine Inverter/Charger, 24V

The Samlex America EVO-2224 Evolution Series is a versatile all-in-one power solution that integrates a 2200W pure sine wave inverter, a 70A 4-stage adaptive battery charger, and a 40A transfer relay. Designed for off-grid, marine, RV, and emergency backup applications, this unit provides reliable AC power with advanced protection monitoring that scans for fault conditions up to 10,000 times per second.

Key Features and Specifications:

• Input: 24 VDC
• Output: 120 VAC, 2200W continuous output with 6600W surge capacity
• Dual AC inputs for grid and generator connectivity with programmable thresholds
• Adaptive 3 or 4-stage battery charging algorithm with equalization
• Zero transfer time from inverter to grid; less than 16ms transfer from grid to inverter
• Five internal temperature sensors with two speed-controlled cooling fans
• Hard-wired connectivity
• Dimensions: 12.79" x 16.77" x 8.15"
• Weight: 57 lbs
• Safety certified: ETL listed to UL 1741, 458, and CSA C22.2 No. 107.1-01; ABYC compliant; FCC Part 15(B) and RoHS compliant
• Warranty: 2-year limited

The EVO-2224 features programmable settings and allows for direct integration with solar charge controllers via the battery charger DC input. An optional EVO-RC remote control is available for detailed performance data logging to an SD card. Regulatory note: This product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
