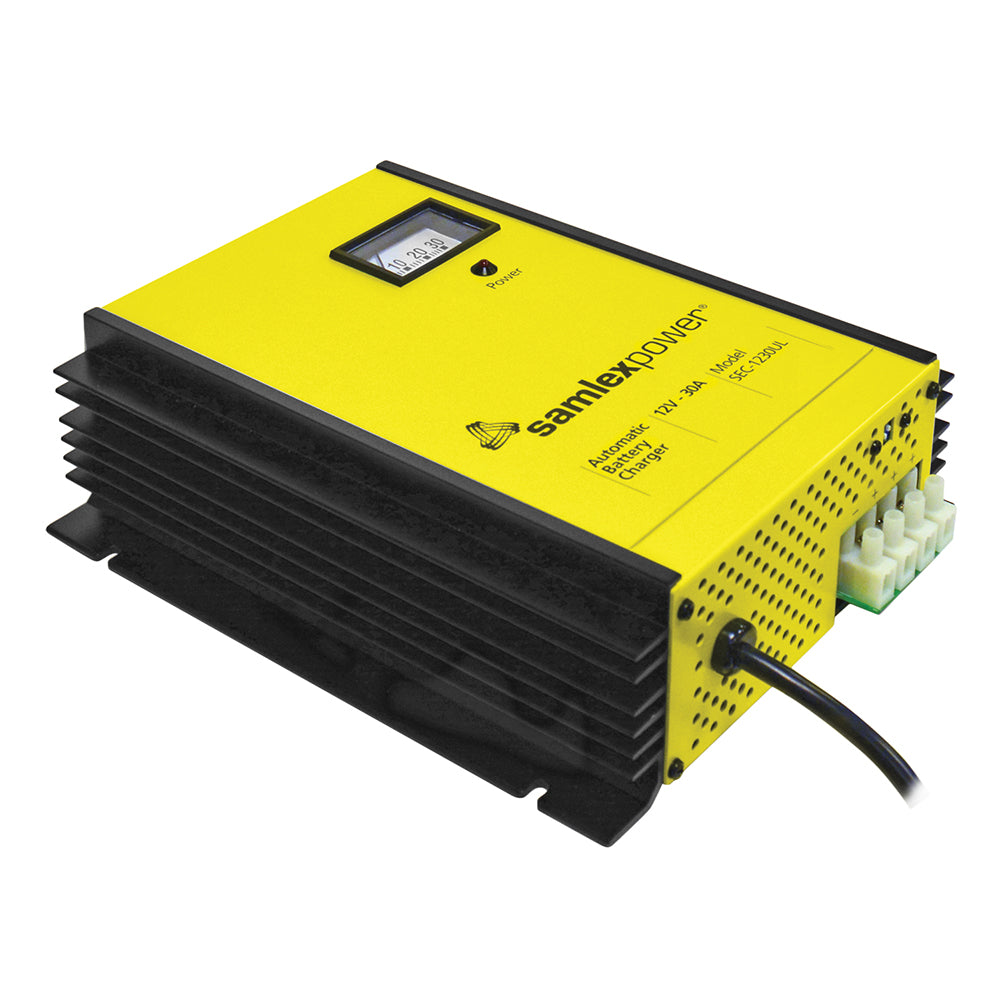

Samlex America SEC-1230UL 30A 12V 3-Bank 3-Stage Battery Charger
Samlex America SEC-1230UL 30A 12V 3-Bank 3-Stage Battery Charger
4 available
About this product
The Samlex America SEC-1230UL is a 30-amp, 3-bank, 3-stage battery charger designed for 12V lead-acid, AGM, and gel cell batteries. This versatile unit operates on 120V or 230V AC input and features user-selectable charging stages, allowing it to function as a battery charger, DC power supply, or DC UPS.
Key Features and Specifications:
- Output: 30 Amps at 12V DC
- Input Voltage: 120V AC (60 Hz) or 230V AC (50 Hz), user-selectable
- Charges up to 3 separate battery banks simultaneously without requiring an isolator
- Selectable 2-stage or 3-stage charging algorithm via DIP switch
- Includes ammeter and LED status display
- Built-in protection against overload, short-circuit, reverse polarity, and over-temperature
- Dimensions: 10.5 in. x 8.5 in. x 3 in.
- Weight: 7 lbs. (3.17 kg)
- Safety: Listed to UL-1564, EMI compliant to FCC Part 15(B) Class B
- Warranty: 2-year limited
Regulatory note: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
Manuals & videos
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-105820
- Model / MPN
- SEC-1230UL
- UPC / GTIN
- 622988083020
- Package dimensions (H × W × L)
- 5" X 10" X 14"
- Package weight
- 7.0 lb
- Country of origin
- TAIWAN
Specifications
- Charger Output Voltage
- 12v
- Charger Output - Amps
- 30a
- Charging Banks
- 3
- Portable
- No
- Charger Input - Voltage
- 120/240v
