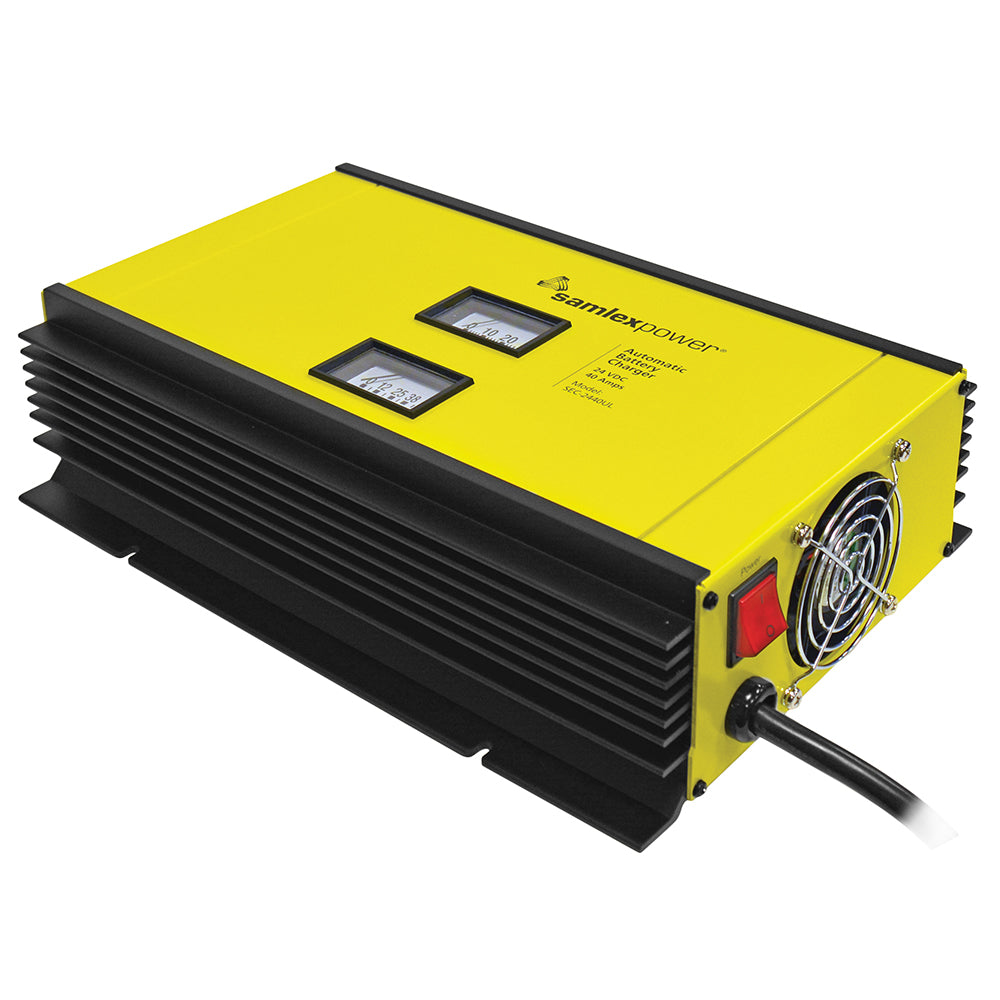

Samlex America SEC-2440UL 40A 24V 2-Bank 3-Stage Battery Charger

The Samlex America SEC-2440UL is a fully automatic, three-stage 40 Amp battery charger designed for 24 Volt lead-acid batteries, including flooded, AGM, and gel cell types. This unit operates from a 120V or 230V AC source and features two-bank charging capabilities, allowing for the simultaneous charging of two separate battery banks without the need for an isolator.

Key Features:

• User-configurable charging algorithms allow for 2-stage or 3-stage operation via DIP switch settings.
• Functions as a battery charger, DC power supply, or DC UPS when used with a battery.
• Includes a "Half Power Mode" to reduce output current for charging lower-capacity batteries safely.
• Equipped with a temperature sensor to optimize charging in varying temperature conditions.
• Integrated voltmeter and ammeter for real-time monitoring.
• Fan-cooled operation with protection against short circuits, overloads, reverse battery connections, and over-temperature.
• Compact, lightweight switch-mode design.
• Certified to UL-1564 safety standards and FCC Part 15(B) Class B EMI compliant.
• Compatible with optional 900-RC remote control.

Technical Specifications:

• Output: 24 VDC at 40 Amps
• AC Input: 120 VAC or 230 VAC, 50/60 Hz
• Dimensions: 15 in. x 9.61 in. x 3.82 in.
• Weight: 9 lbs. (4.1 kg)
• Warranty: 2-Year Limited

Regulatory Note: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
