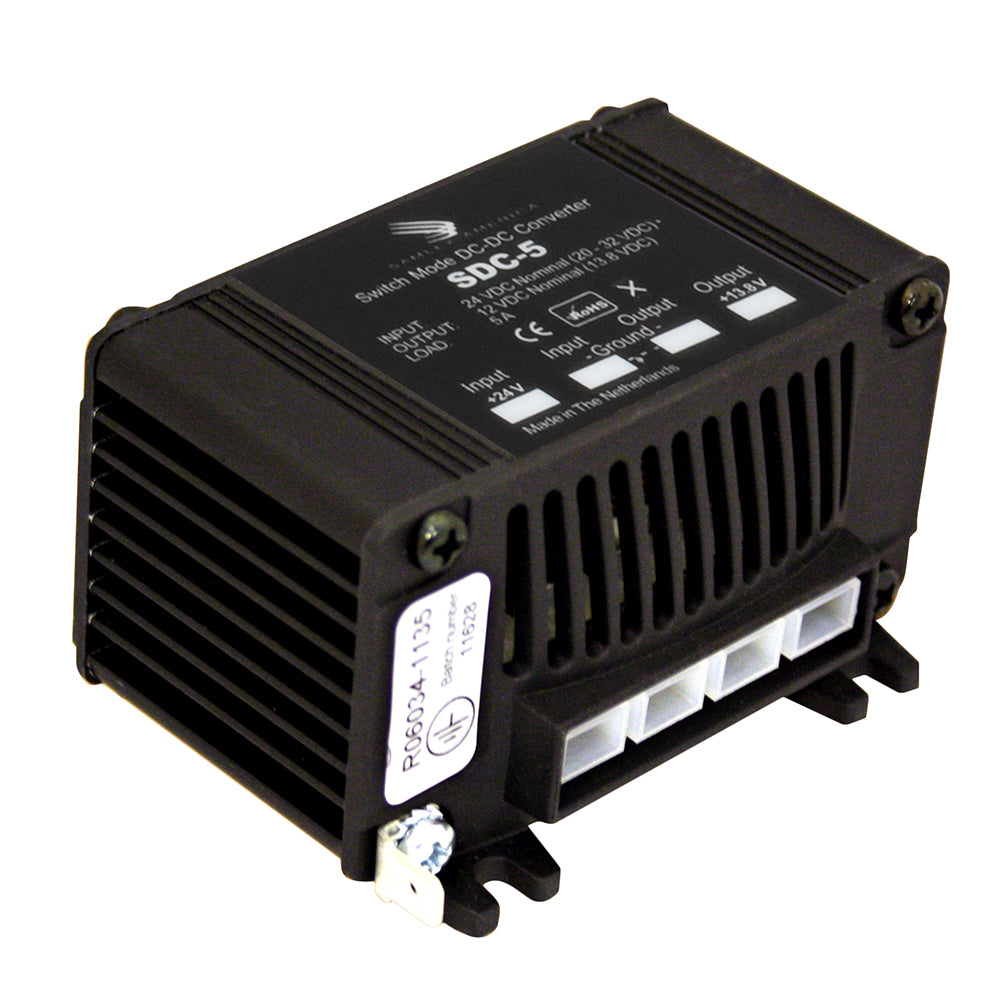

Samlex America SDC-5 5A Non-Isolated 24VDC to 12VDC Step-Down Converter
Samlex America SDC-5 5A Non-Isolated 24VDC to 12VDC Step-Down Converter
3 available
About this product
The Samlex America SDC-5 is a compact, high-efficiency, non-isolated step-down DC-DC converter designed to transform 24 VDC input voltage (20–32 VDC range) into a regulated 13.8 VDC output at 5 Amps. This unit is built for negative ground systems in a variety of applications including marine vehicles, heavy trucks, buses, and earth-moving equipment.
Key Features:
- Advanced switch-mode design for high efficiency
- Lightweight, compact construction allows for flexible mounting
- Integrated protection against reverse polarity, overvoltage, and short circuits
- Cycle-by-cycle current limiting circuit
- Suitable for powering 12V lighting, CB radios, and sound systems
Technical Specifications:
- Model: SDC-5
- Continuous Amperage: 5 Amps
- Input Voltage Range: 20–32 VDC
- Output Voltage: 13.8 VDC
- Dimensions: 3.5" x 2.75" x 1.75"
- Weight: 0.4 lbs (0.18 kg)
- Warranty: 2-Year Limited
Regulatory note: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
Manuals & videos
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-105846
- Model / MPN
- SDC-5
- UPC / GTIN
- 622988060342
- Package dimensions (H × W × L)
- 2" X 3" X 4"
- Package weight
- 0.45 lb
- Country of origin
- TAIWAN
Specifications
- Type
- Samlex 5A Non-Isolated Step-Down 24VDC-12VDC Converter
