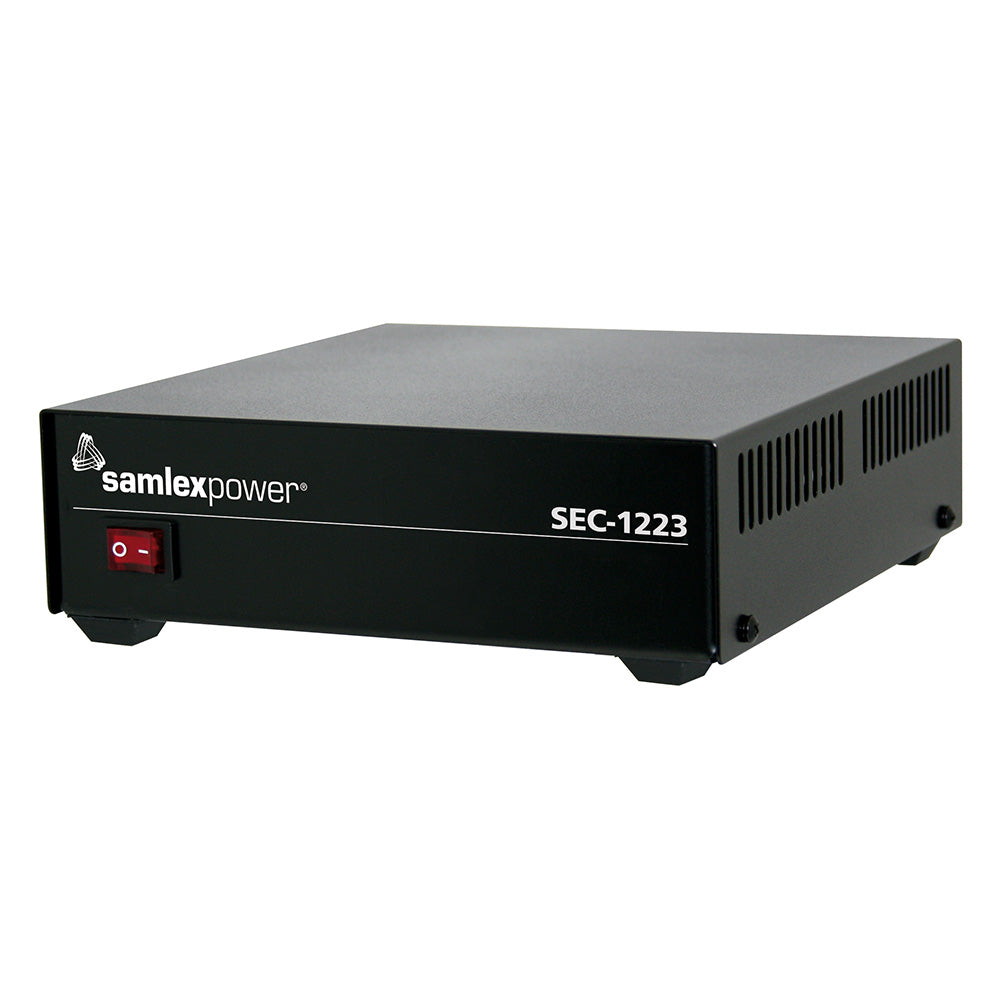

Samlex America SEC-1223 13.8V 23A AC-DC Power Converter

The Samlex SEC-1223 is an advanced switch-mode AC-DC power converter designed to provide a highly regulated 13.8V DC output at 23A from a 120V or 240V AC input. Engineered specifically for land mobile radio (LMR) applications, this power supply delivers clean, filtered power with minimal RFI to ensure reliable performance for communications equipment and other 12V DC systems.

• Advanced technology: Uses high-efficiency switch-mode design to reduce size and weight while maintaining consistent output.
• Safety features: Includes protection against over-current, short-circuits, and over-voltage.
• Certifications: UL listed for USA and Canadian safety standards and conforms to FCC Part 15(B), class B.
• Input range: Operates on 100-130V AC; can be set to 240V AC via an internal jumper.
• Specifications: Output of 13.8V DC at 23A, with a 6.3A internal fuse.
• Dimensions: 7.28 in. x 8.19 in. x 2.40 in.
• Weight: 3.5 lbs (1.6 kg).
• Includes: Detachable power supply cord with NEMA 5-15P plug.

This unit is suitable for use with two-way radio base stations, security systems, test equipment, GPS receivers, automotive and marine displays, and 12V lighting systems.
