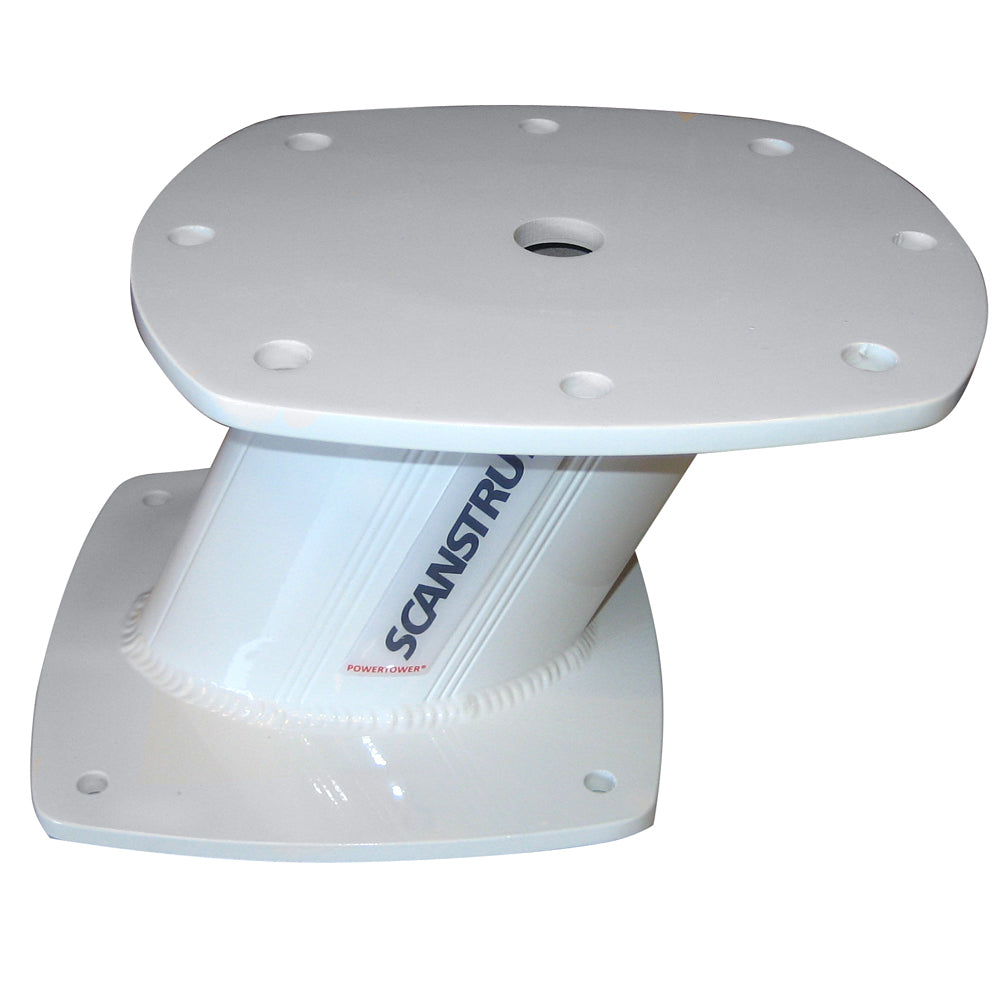

Scanstrut Aluminum PowerTower Open Array Radar Mount, 6" Aft Leaning

Maximize your boat's radar performance with the Scanstrut APT6003 Aluminum PowerTower, expertly designed to provide the clearest view of the horizon. Constructed from premium marine-grade aluminum and finished with Scanstrut's unique 4-step marine paint system, this mount ensures exceptional durability and resistance to the harsh marine environment. Invest in Scanstrut quality for enhanced navigation and safety on the water.

In the Box:

• Scanstrut PowerTower Mount
• Mounting hardware (excluding screws/bolts)
• Installation manual

Key Benefits & Features:

• Marine-Grade Aluminum Construction: Ensures exceptional strength and corrosion resistance in harsh marine environments.
• Optimal 5.91" (150mm) Height: Positions your radar for the clearest possible view, reducing interference and maximizing coverage.
• 25° Aft Leaning Design: Maintains a level radar horizon and a sleek, modern performance look while underway.
• Unique 4-Step Marine Paint System: Provides a superior, long-lasting finish that withstands the most demanding marine elements.
• Pre-Drilled Mounting Holes: Facilitates quick and straightforward installation directly to the PowerTower using the radar's own bolts, eliminating the need for additional hardware or marine sealant.
• Waterproof Seal: Ensures a secure, waterproof seal around radar cables without requiring marine sealant.

Compatibility & Pairings:

The Scanstrut APT6003 is compatible with a wide range of open array radars from leading brands, including:

• Furuno: 1762, 1932, 1934, 1942, 1944, 1954, 851, DRS12A (6'), DRS12A (4'), DRS25A (4'), DRS25A (6'), DRS4A, DRS6A / DRS6A X CLASS, DRS6A-NXT radars.
• Garmin: GMR 1224 xHD2, 1226 xHD2, 2524 xHD2, 2526 xHD2, 404, 406, 424 xHD2, 624 xHDS2, 626 xHD2 radars.
• JRC: JMA 2344 / 5106 / 5206 (4') and JMA 2344 / 5106 / 5206 (6') radars.
• Navman: 8000 Series (8084/8120) 4" radars.
• Onwa: KRA-3002/4001 radars.
• Raymarine: 5S / 9S / RA1048HD / RA1048SHD, 7S / 11S / RA1072HD / RA1072SHD, Cyclone 3'/4'/6', Magnum 4' 4kW/12kW, Magnum 6' 4kW/12kW radars.
• Simrad: HALO 3/4/6 Pulse radars.
• Sitex: MDS - 10 (4'), 10 (5') and RADARpc - 3/54.5 radars.

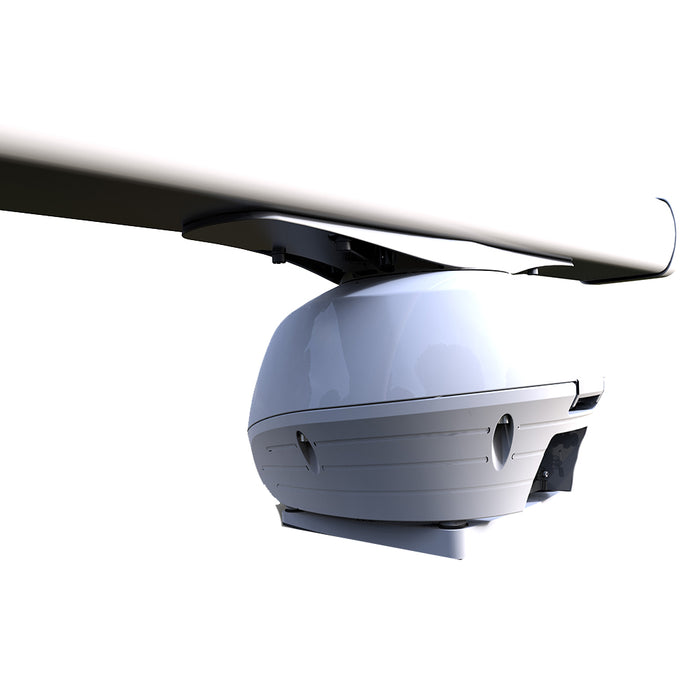

Enhance your setup further with optional Scanstrut accessory light bars and PowerTower Wedges (sold separately) for customized configurations and improved radar pitch.
