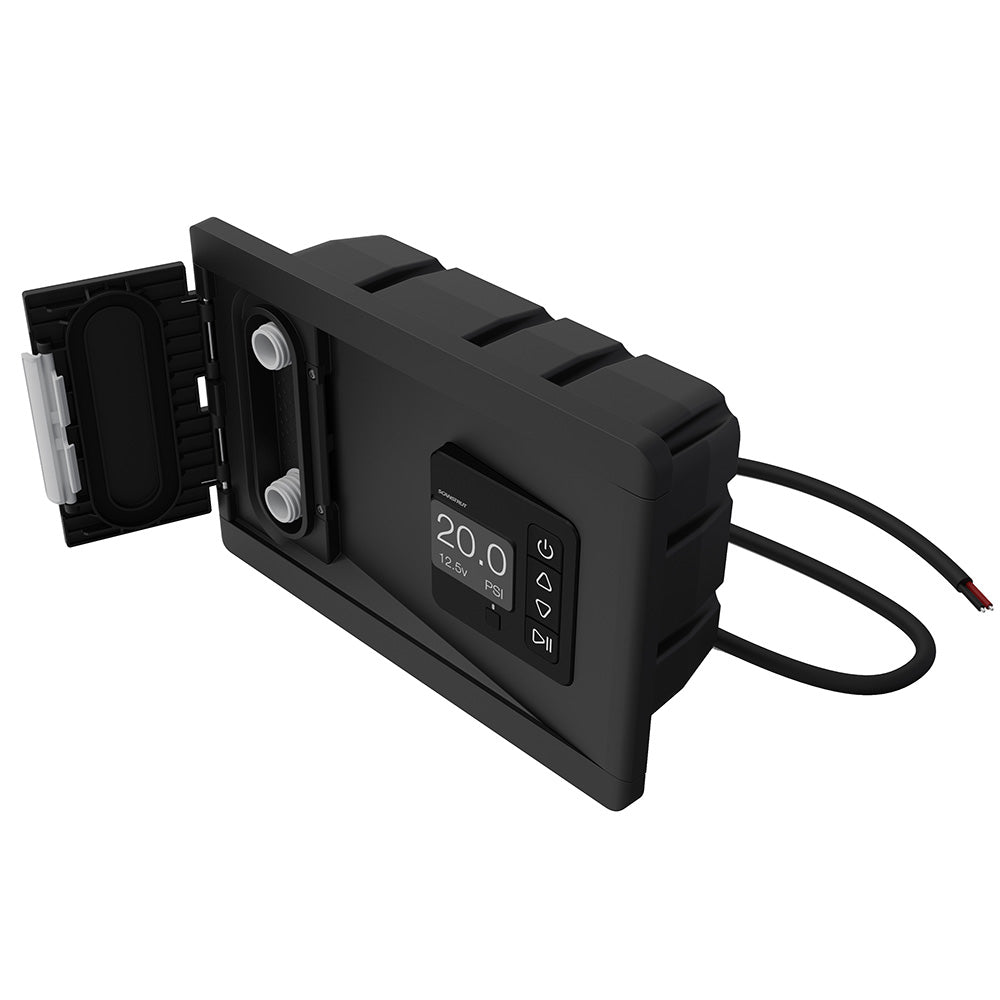

Scanstrut ATMOS 12V Integrated Air Station

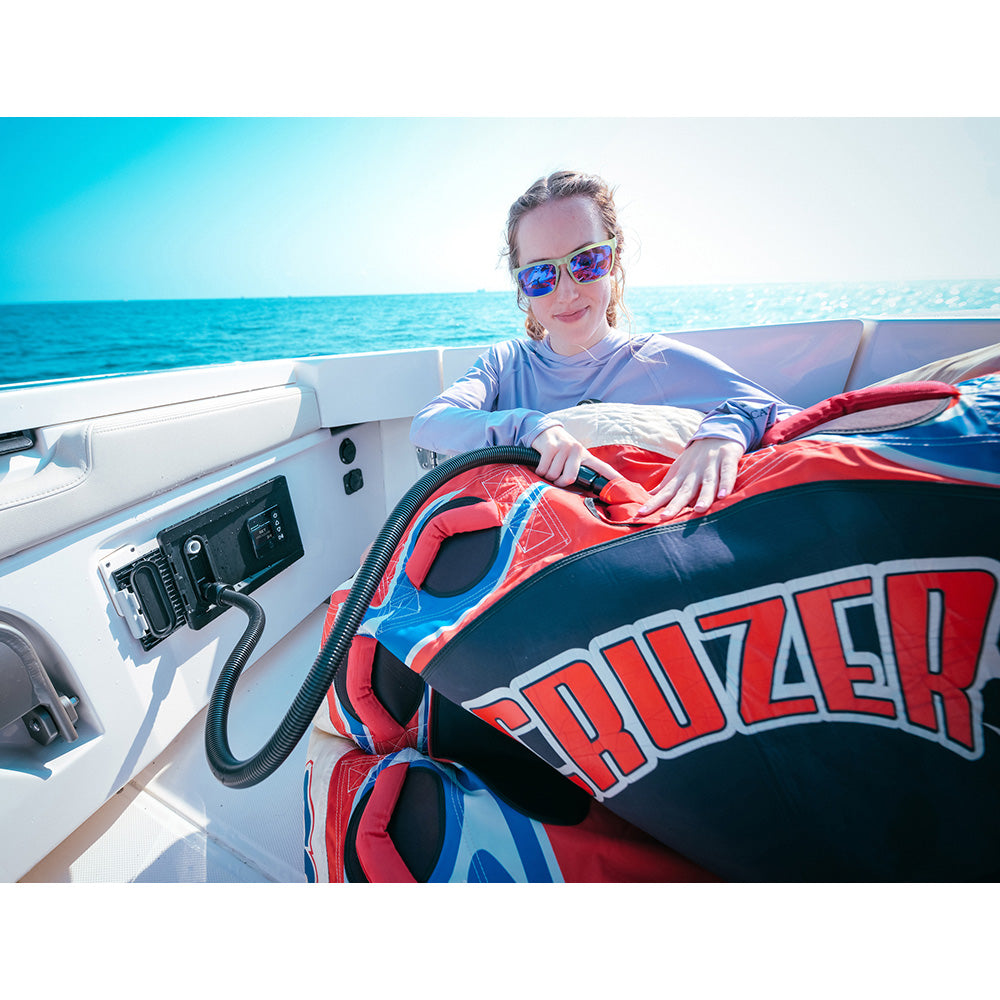

The Scanstrut ATMOS 12V Integrated Air Station is a marine-grade, panel-mounted pump system designed for fast and efficient inflation of paddleboards, towables, and other inflatables. Featuring a two-stage brushless motor, the unit automatically switches between high-volume, low-pressure (HVLP) mode for initial inflation and high-pressure, low-volume (HPLV) mode for final hardening up to 20 PSI.

Key Features and Specifications:

• Marine-Engineered: Features IPX6 waterproof protection on front and rear, conformal-coated electronics, and ignition protection (ISO 8846 and SAE J1171).
• Automatic Operation: Set your target pressure and the unit manages the two-stage inflation process, automatically shutting off once the target is reached.

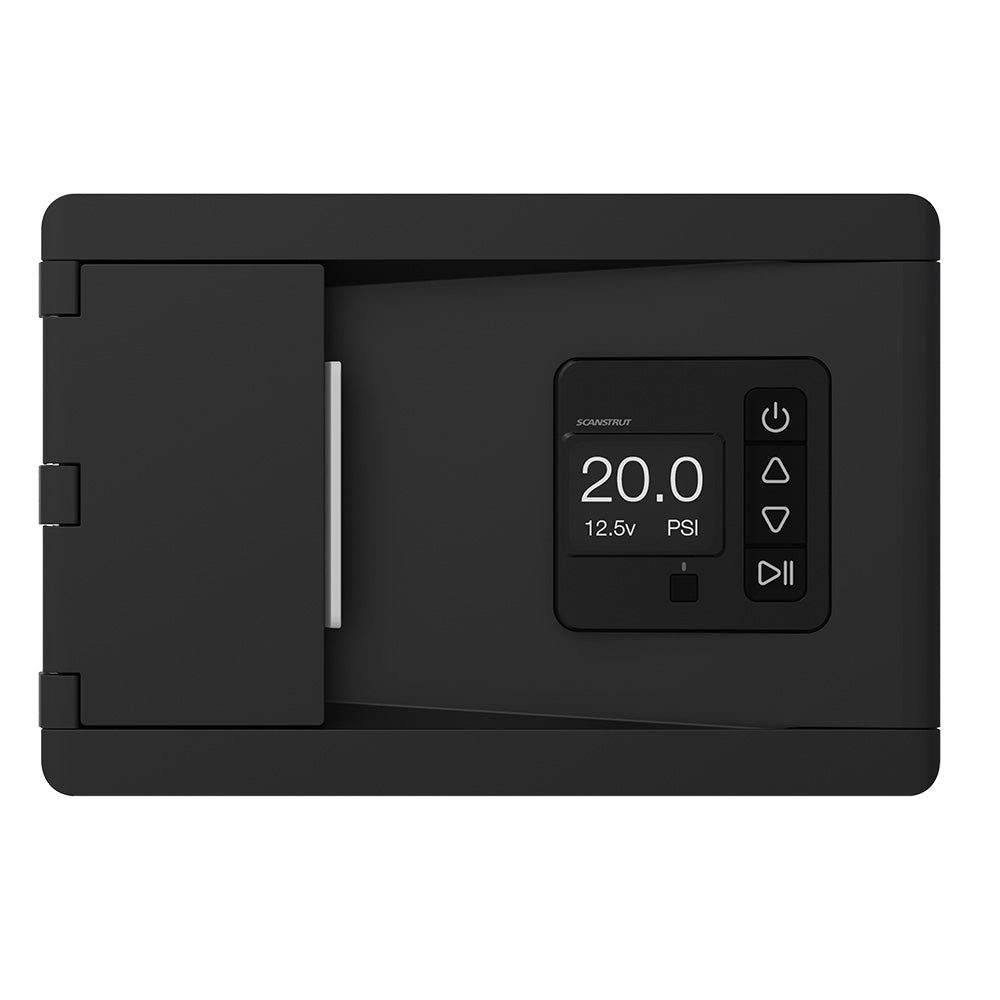

• User Interface: Includes non-slip soft-touch buttons and a bright LCD with a live battery voltage readout.
• Performance: Max pressure output of 20 PSI (1.37 BAR). Stage 1 flow rate of 350 LPM (12.3 CFM) and Stage 2 flow rate of 70 LPM (2.5 CFM).

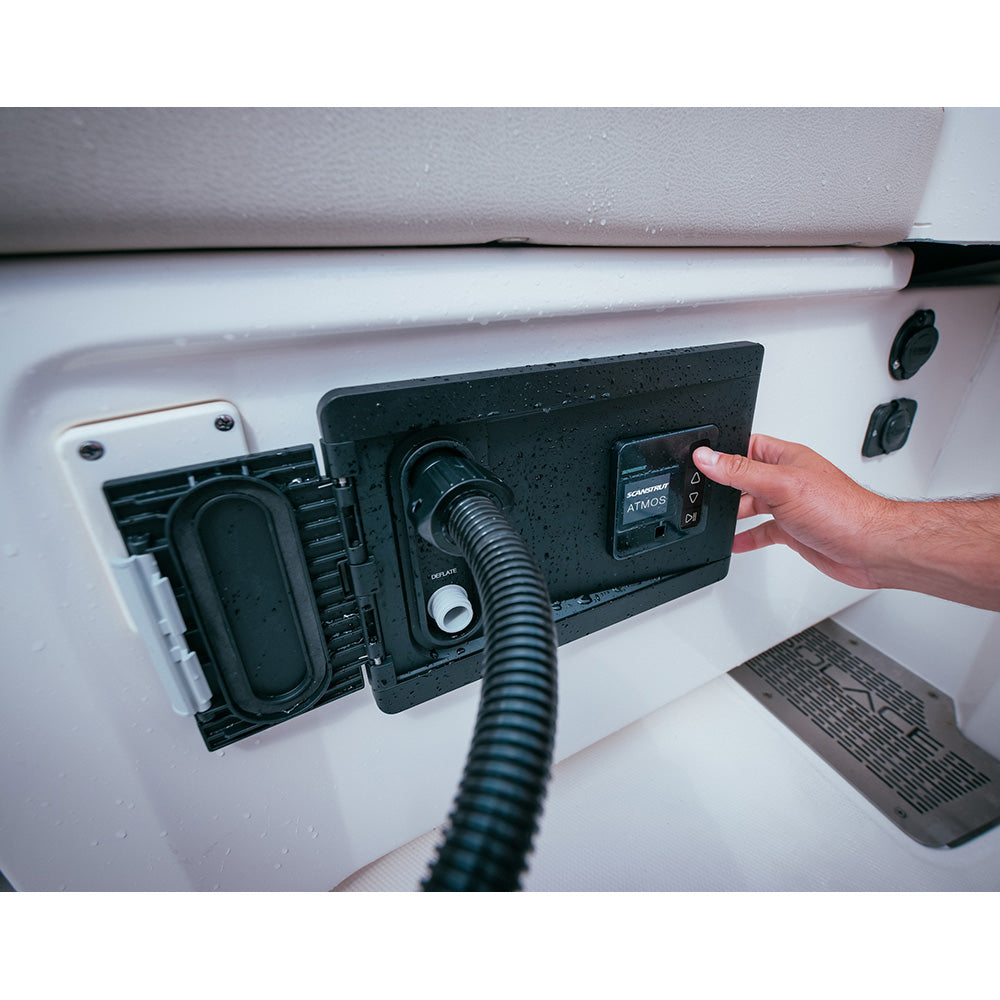

• Installation: Designed for panel mounting in seating, side panels, or consoles; requires a minimum cavity depth of 110mm (4.33").
• Operating Range: Ambient temperature range of -20°C to 50°C (-4°F to 122°F); compatible with 12V battery systems (10-14V).
• Safety: Includes reverse polarity, short-circuit, under-voltage, overload, and over-temperature protection.

What is in the box:

• ATMOS 12V Integrated Air Station
• Heavy-duty sun cover

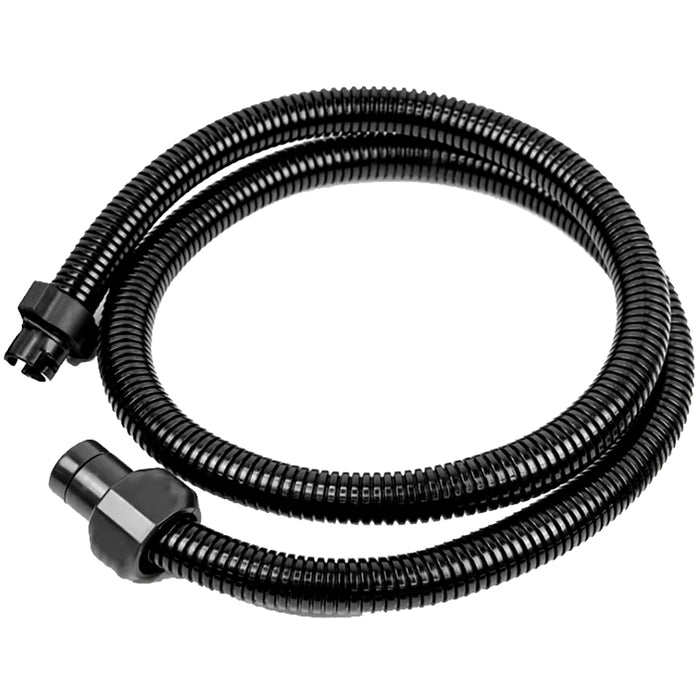

• 2.5M (8 ft.) hose
• 6x Hose valve adapters (Boston, C7, H3/HR, Pinch, and 805 valves)
• Foam mounting gasket

Note: Mounting hardware such as screws or bolts is not included. The unit has no end-user serviceable parts.
