Scanstrut Flip Pro Plus Dual USB-A and USB-C Charger Socket, SC-USB-F4

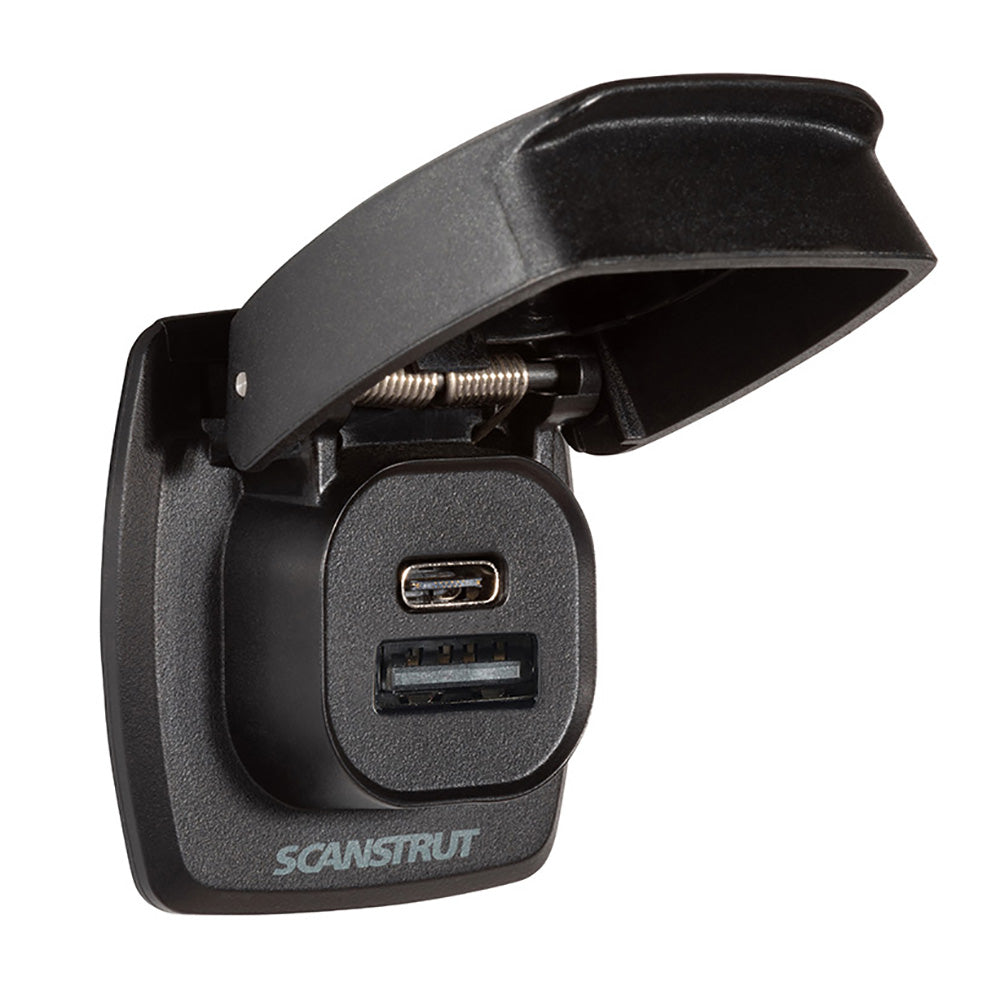

Scanstrut Flip Pro Plus is a low-profile dual USB charger socket with USB-C Power Delivery and USB-A outputs for 12 V and 24 V marine electrical systems. Spring-loaded covers help protect the ports when they are not in use.

• USB-C output: up to 36 W on 12 V systems or 60 W on 24 V systems
• USB-A output: up to 36 W
• Charges up to two devices at a time
• Input voltage: 10–32 V DC for 12 V and 24 V systems
• Maximum input current: 6 A; 10 A fuse recommended
• Standby power draw: less than 0.1 W
• IPX4 waterproof with the cover closed
• Low-profile design with UV-resistant plastics, a protective-coated PCB or electronics, and a 316 stainless steel hinge and spring
• 32 mm (1 1/8 in.) standard USB mounting-hole cutout; matches Scanstrut Flip Pro Max, Duo, and Multi USB sockets
• Optional front-mount bezel supplied
• Manufacturer part number: SC-USB-F4

Use the device’s charge cable to achieve maximum charging performance. Phones charge at the same speed on 12 V and 24 V systems, while the full 60 W USB-C output requires a 24 V system.
