Brand: Scanstrut

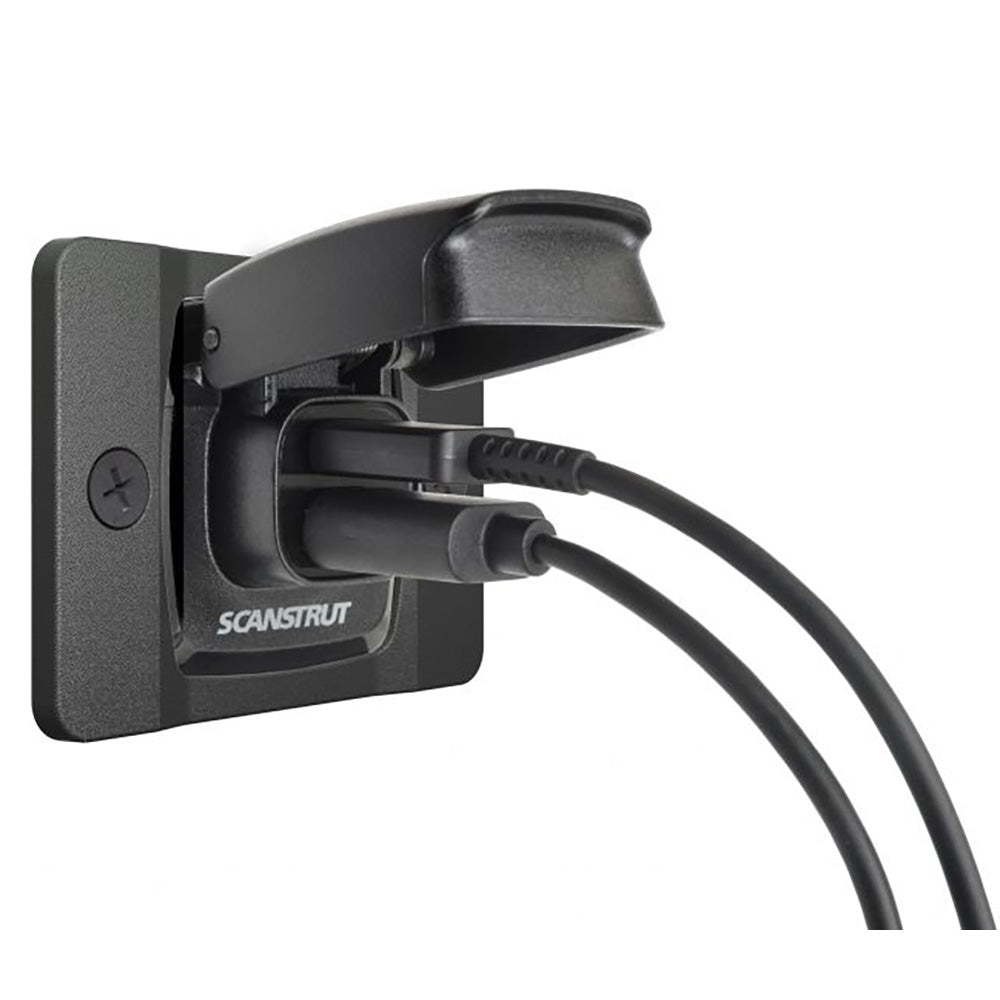

Scanstrut Flip Pro Dual USB-A/USB-C Charging Socket with Front-Fit Bezel, SC-USB-F2
Scanstrut Flip Pro Dual USB-A/USB-C Charging Socket with Front-Fit Bezel, SC-USB-F2
7 available
About this product
Scanstrut Flip Pro is a marine charging socket with one USB-A port, one USB-C port, and a front-fit bezel for installations where access behind the panel is limited. It accepts 10-30V DC input for 12V or 24V systems and uses a spring-loaded cover to protect the ports when not in use.
- Dual USB-A and USB-C charging ports
- Fast charging for up to two devices at once, with output up to 60W
- USB-C output: 60W max on 24V systems and 36W max on 12V systems
- USB-A output: 36W max
- Input voltage: 10-30V DC for 12V or 24V systems
- Maximum input current: 6A; 10A fuse recommended
- Standby power draw: 0.01W
- Front-fit bezel supports screw installation from the front
- Standard USB socket mounting cut-out: 29 mm (1 1/8 in.)
- IPX4 waterproof with the cover closed
- Internal anti-corrosion protective coating, UV-resistant construction, and 316 stainless steel hinge and spring
- Manufacturer part number: SC-USB-F2
- UPC: 5060114798113
Use the charging cable supplied with the device for maximum charging performance. A 24V system is required to achieve the full 60W USB-C output for compatible laptops.
