Brand: Scanstrut

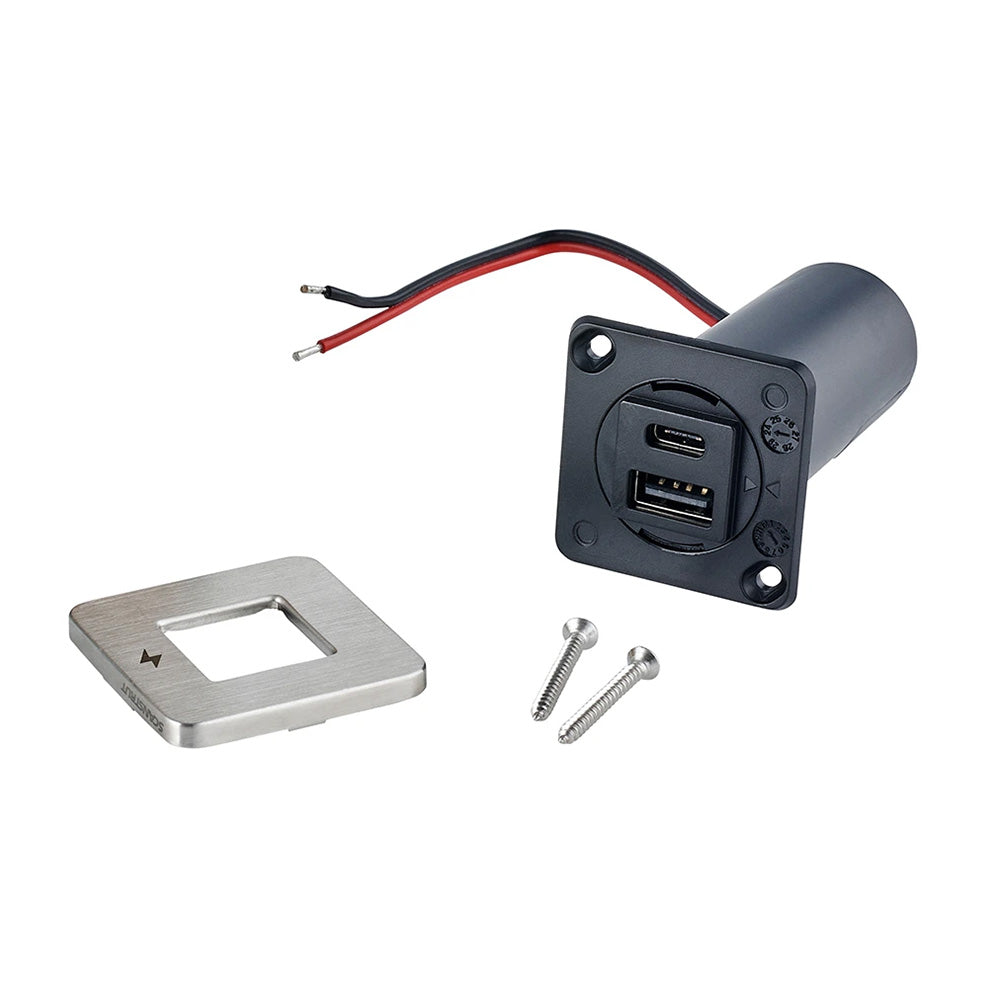

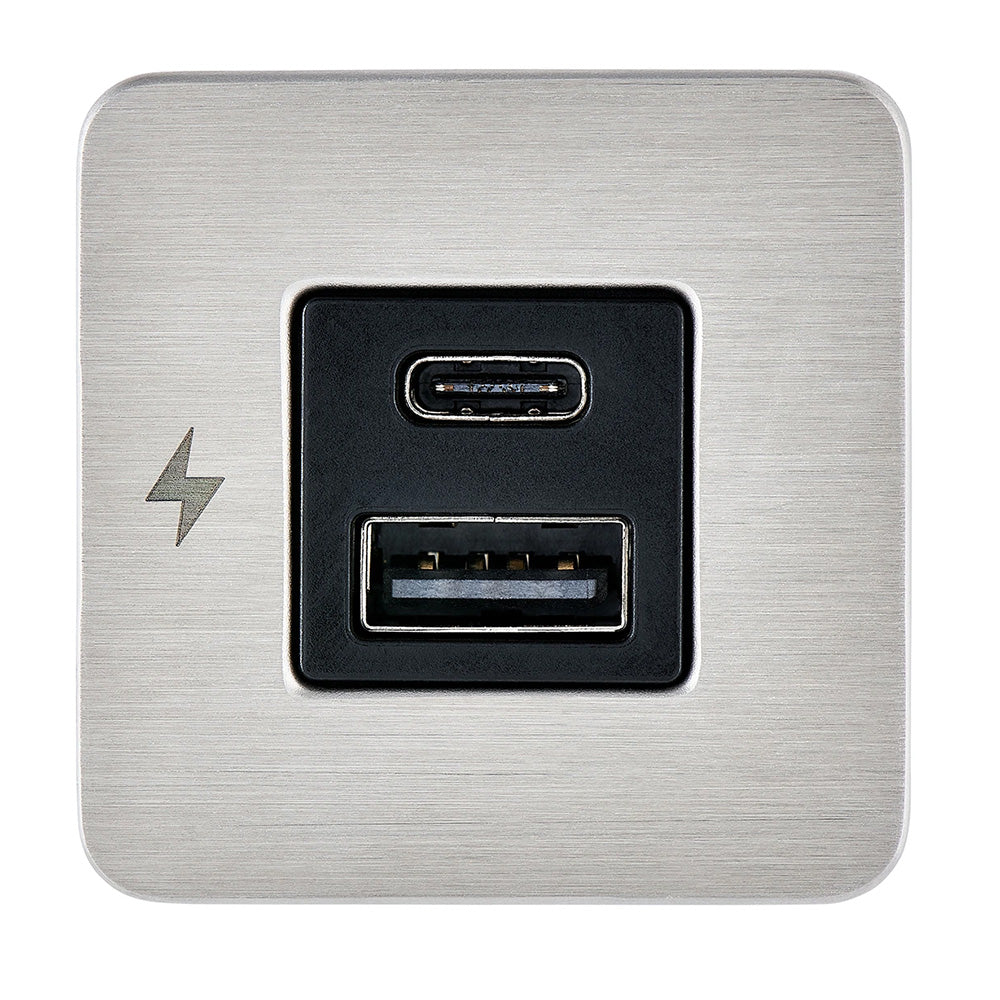

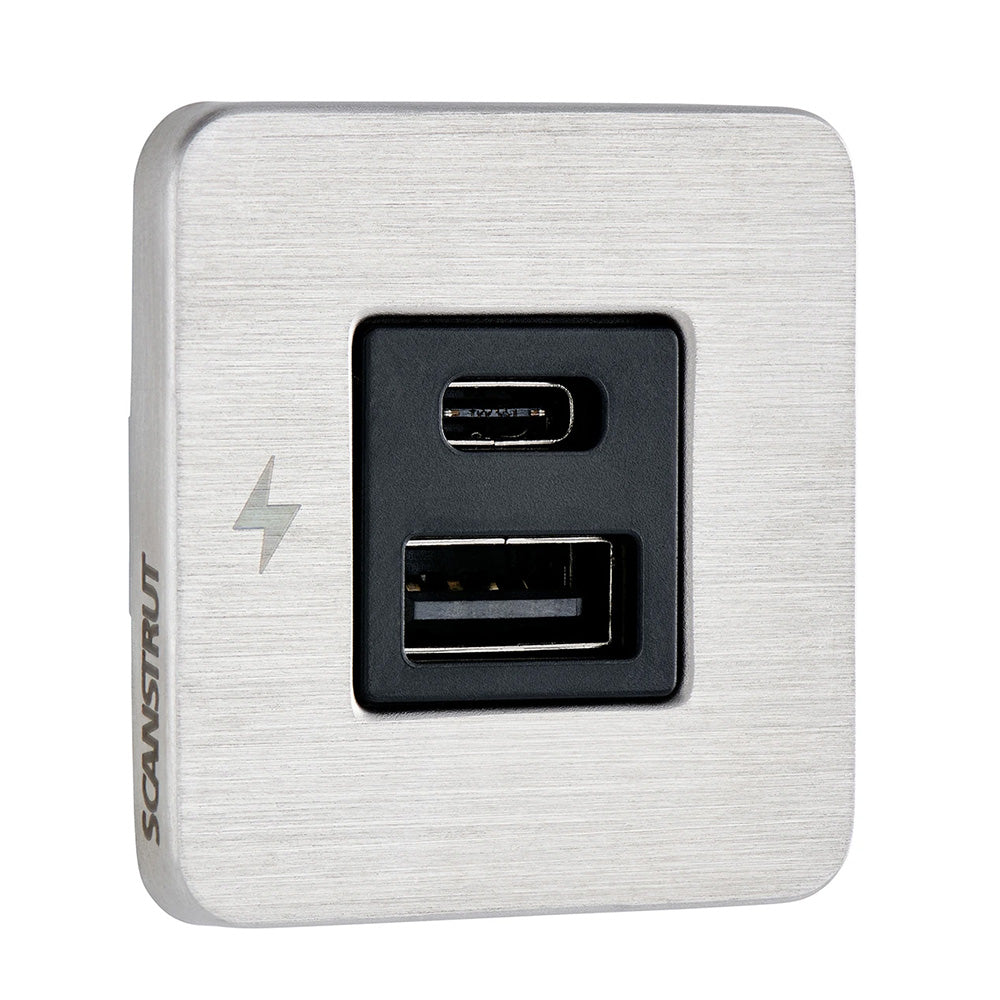

Scanstrut TILE USB-A/USB-C Marine Interior Charging Socket, 12/24V, Stainless Steel Bezel (SC-TILE-11)
Scanstrut TILE USB-A/USB-C Marine Interior Charging Socket, 12/24V, Stainless Steel Bezel (SC-TILE-11)
5 available
About this product
The Scanstrut TILE charging socket provides USB-A and USB-C charging for marine interiors, with a stainless steel bezel and support for 12V and 24V systems.
- Input voltage range: 10–32V DC; maximum input current: 6A. A 10A fuse is recommended.
- USB-A and USB-C ports; charges up to two devices at a time.
- On a 12V system, both outputs support 5V DC at 3A, 9V DC at 3A, or 12V DC at 3A maximum.
- On a 24V system, USB-A supports 5V DC at 3A, 9V DC at 3A, or 12V DC at 3A maximum. USB-C supports 5V DC at 3A, 9V DC at 3A, 12V DC at 3A, 15V DC at 3A, or 20V DC at 3A maximum.
- Maximum output is 36W on 12V and up to 60W on 24V. Use the device manufacturer’s cable for best charging performance; full 60W output requires a 24V system.
- Bezel footprint: 40.40 mm × 40.40 mm. The vendor describes a nominal 40 mm footprint and a 29 mm installation hole.
- Ultra-low-profile, front-fit design with conformal-coated electronics. Standby power is less than 0.1W.
- For interior installation only. Do not install where the socket may be exposed to water.
- Manufacturer part number: SC-TILE-11.
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-116434
- Model / MPN
- SC-TILE-11
- UPC / GTIN
- 5060114799585
- Package dimensions (H × W × L)
- 2" X 3" X 4"
- Package weight
- 0.16 lb
- Country of origin
- CHINA
Specifications
- Bezel footprint
- 40.40 mm × 40.40 mm
- Standby Power
- <0.1W
- USB-A output on 24V system
- 5V DC at 3A, 9V DC at 3A, or 12V DC at 3A maximum
- USB-C output on 24V system
- 5V DC at 3A, 9V DC at 3A, 12V DC at 3A, 15V DC at 3A, or 20V DC at 3A maximum
Fit-sensitive item: confirm measurements, model numbers, and manufacturer details before ordering. Tug & Tow does not guarantee universal compatibility from a product page alone.
