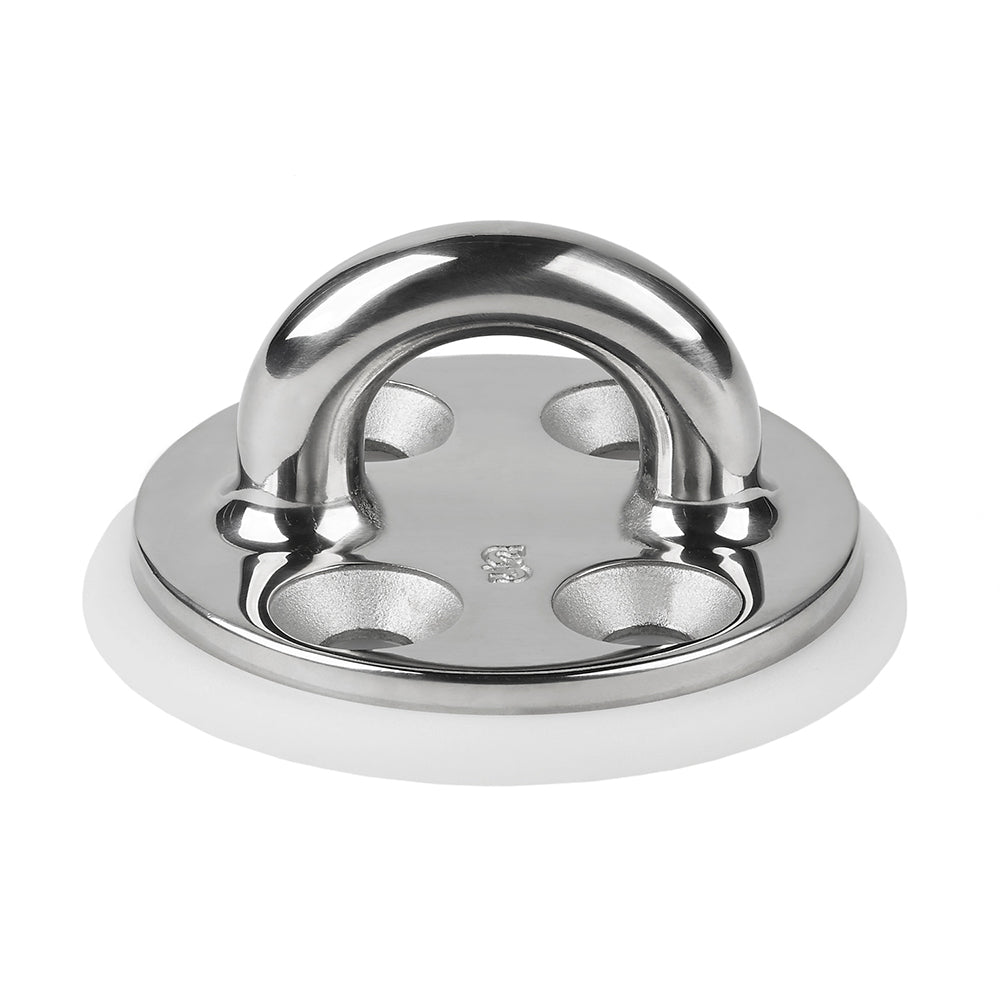

Schaefer Marine 78-17 High-Load Pad Eye, 3" OD, 316 Stainless Steel

Ensure maximum security and durability on your vessel with the Schaefer Marine 78-17 High-Load Investment Cast Pad Eye. Expertly crafted from robust 316 stainless steel, this pad eye is designed for demanding marine environments, providing a reliable anchor point for critical deck hardware, jacklines, and rigging. Its investment cast construction and high safe working load make it an indispensable component for serious sailors and powerboaters. Upgrade your deck fittings for uncompromised performance.

In the Box:

• Schaefer Marine 78-17 Investment Cast Pad Eye
• Delrin™ Base

Key Specifications & Benefits:

• Investment Cast 316 Stainless Steel: Offers superior corrosion resistance and exceptional strength for prolonged use in harsh saltwater conditions.
• High Safe Working Load (SWL): Rated for 8,500 lbs (3800 kg), providing robust support for heavy loads and critical applications.
• 3" (76 mm) OD Base: Ensures a secure and stable mounting platform on various deck surfaces.
• Included Delrin™ Base: Protects mounting surfaces from galvanic corrosion and abrasion, reduces vibration, and enhances overall durability.
• Eye Width: 1-1/8" (29 mm)
• Eye Height: 7/8" (22 mm)
• Eye Stock: 1/2" (13 mm)
• Overall Length: 3" (76 mm)
• Overall Width: 3" (76 mm)
• Required Fasteners: (4) 3/8" FH (10 mm) for a robust and secure installation (fasteners sold separately).
• Mounting Holes Center-to-Center (A): 1-1/8" (29 mm)
• Mounting Holes Center-to-Center (B): 1-11/16" (43 mm)

Recommended Pairings:

• For complete installation, order Schaefer Marine Backing Plate 97-54 separately.
