Brand: Schaefer Marine

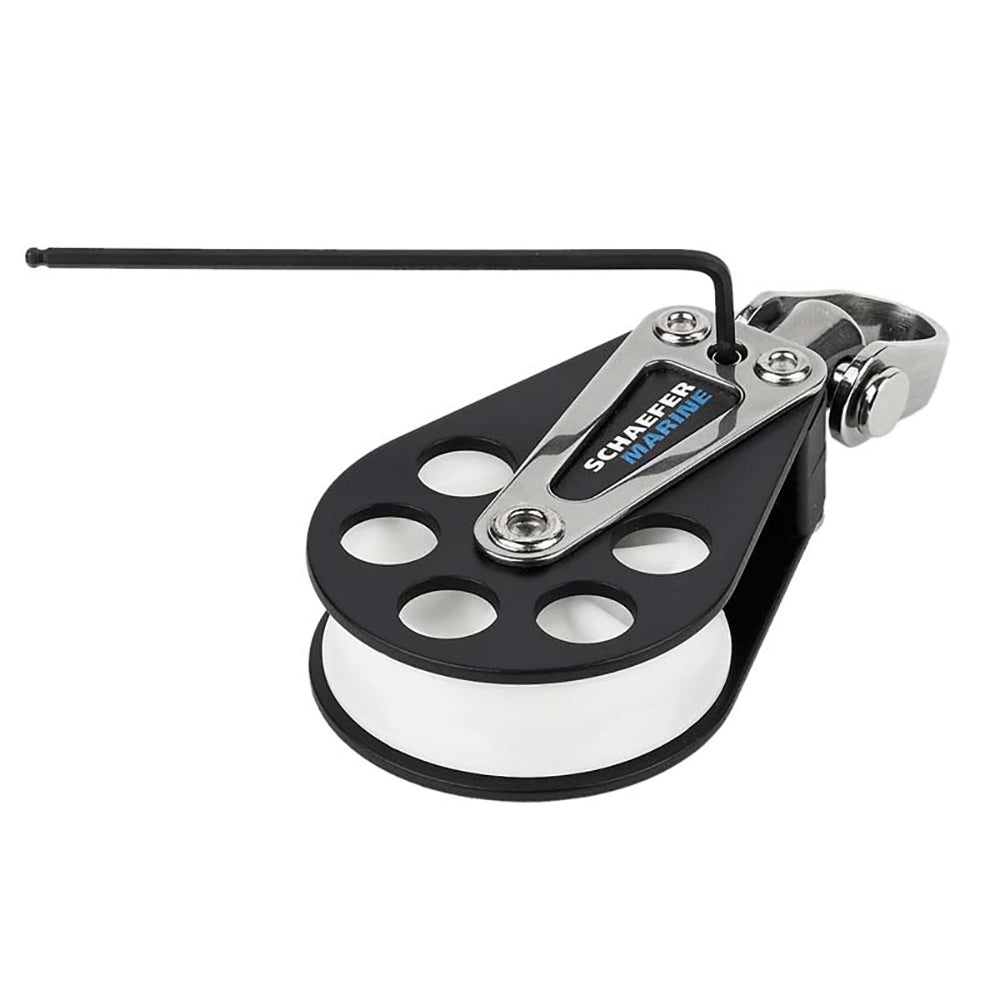

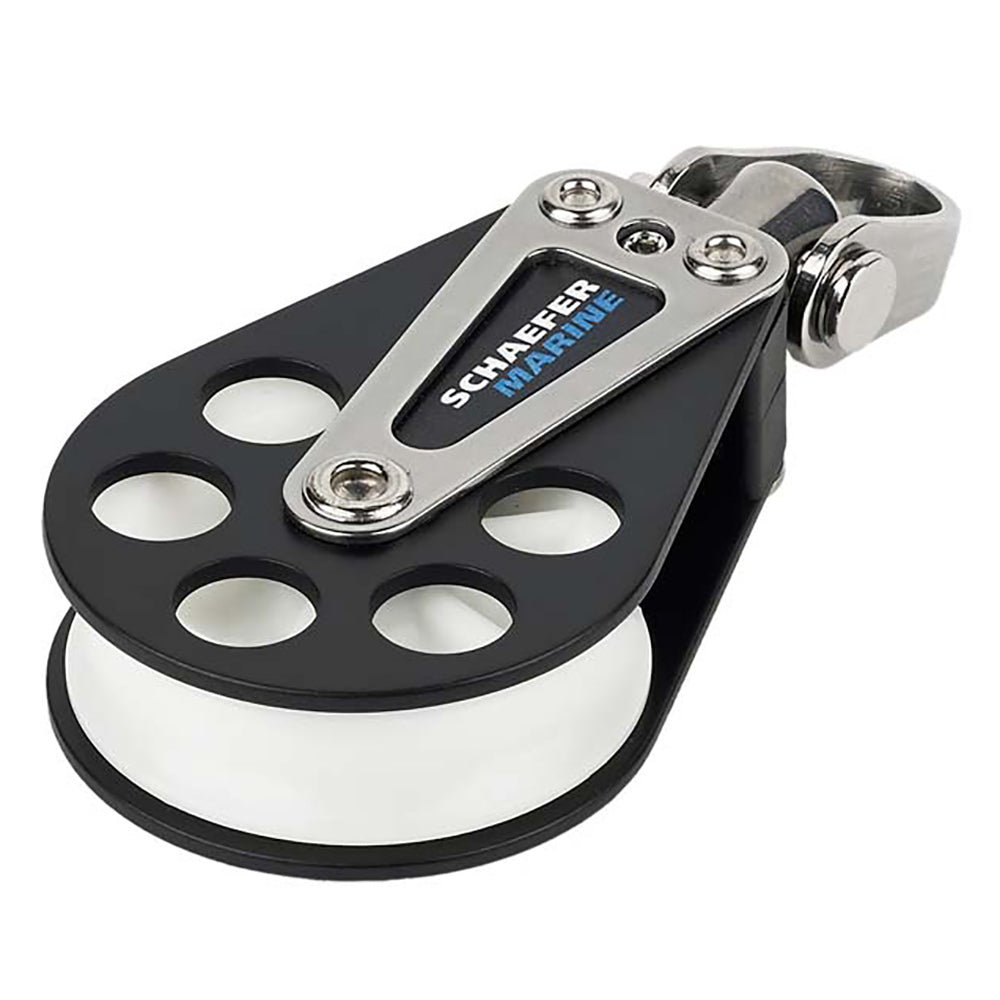

Schaefer Marine Single Aluminum Block, 51mm Sheave
Schaefer Marine Single Aluminum Block, 51mm Sheave
2 available
The Schaefer Marine Single Aluminum Block is a reliable, high-performance component featuring durable anodized aluminum cheeks and a Delrin sheave for smooth, efficient operation under load. The integrated swivel head can be locked into a fixed position to prevent line twist during use.
- Sheave Diameter: 2 in. (51mm)
- Maximum Line Size: 7/16 in. (11mm)
- Safe Working Load: 1750 lbs. (795kg)
- Dimensions: 4 13/32 in. (112mm) long x 2 1/8 in. (54mm) wide x 15/16 in. (24mm) thick
- Weight: 5 oz. (142g)
- Model Number: 504-05
