Brand: Schaefer Marine

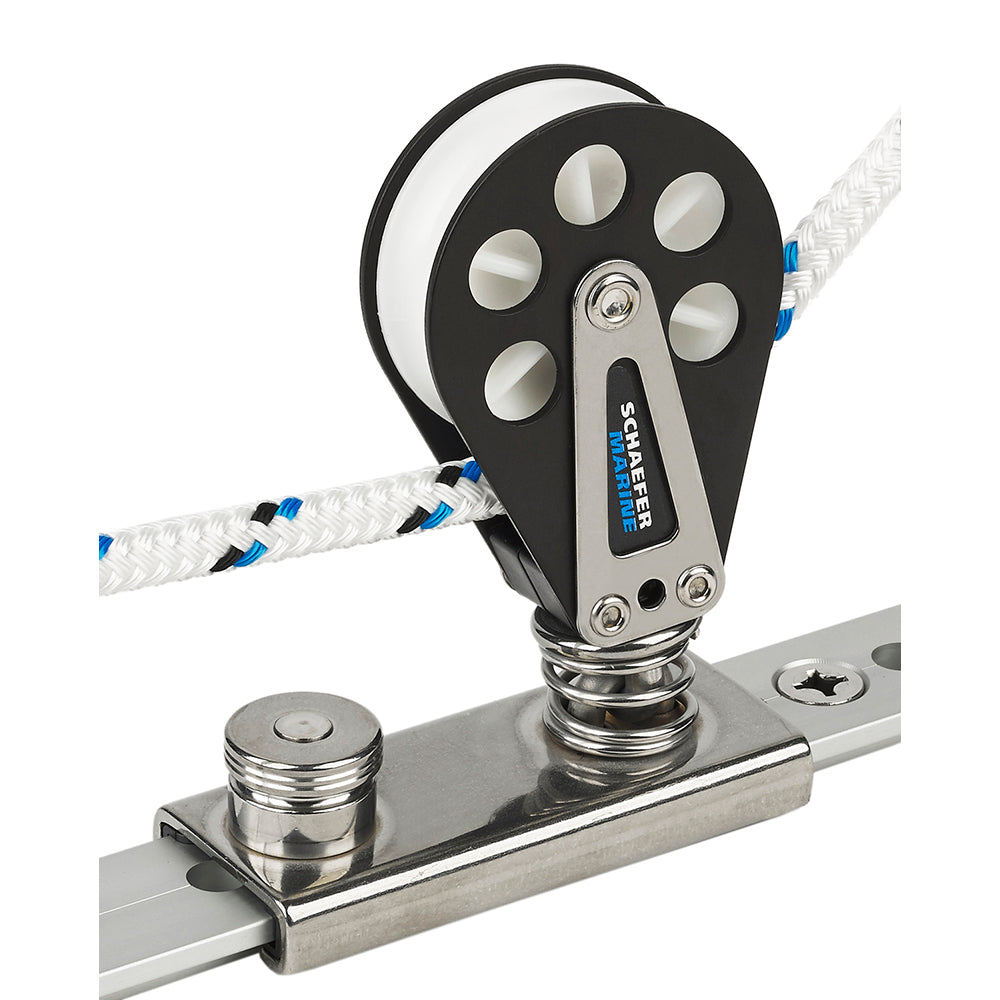

Schaefer Marine Spring-Loaded Lined Slide for 1-1/4 in. T-Track
Schaefer Marine Spring-Loaded Lined Slide for 1-1/4 in. T-Track
Sold out
About this product
The Schaefer Marine Spring-Loaded Lined Slide is designed for 1-1/4 in. T-Track systems. Featuring a durable Delrin sheave, this slide provides smooth operation and high safe working load capacity. It is constructed with anodized aluminum cheeks and a stainless steel slider for long-term reliability, while the polyethylene liner and pin stop design allow for easy, secure adjustments.
Key Specifications:
- Track Compatibility: 1-1/4 in. x 3/16 in. (32 mm x 5 mm)
- Sheave Diameter: 2-3/8 in. (60 mm)
- Maximum Line Size: 1/2 in. (12 mm)
- Safe Working Load (SWL): 2250 lbs. (1020 kg)
- Maximum Boat Length: 33 ft. (10 m)
- Maximum Boat Weight: 12000 lbs. (5455 kg)
- Maximum Sail Area: 520 sq. ft. (48 m2)
- Dimensions: 4 in. L x 1-9/16 in. W x 4-15/16 in. H
- Bearing Height: 2-3/8 in. (67 mm)
- Weight: 12 oz. (340 g)
- Manufacturer Part Number: 704-92
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-107261
- Model / MPN
- 704-92
- UPC / GTIN
- 740507022449
- Package dimensions (H × W × L)
- 2" X 4" X 5"
- Package weight
- 1.0 lb
- Country of origin
- UNITED STATES
Specifications
- Type
- Schaefer Spring Loaded/Lined Slide/Aluminum f/1-1/4" T-Track
Fit-sensitive item: confirm measurements, model numbers, and manufacturer details before ordering. Tug & Tow does not guarantee universal compatibility from a product page alone.
