Schaefer Marine Spring Loaded T-Track Slide for 1-1/4 in. Track, 705-92
Schaefer Marine Spring Loaded T-Track Slide for 1-1/4 in. Track, 705-92
Last one
About this product

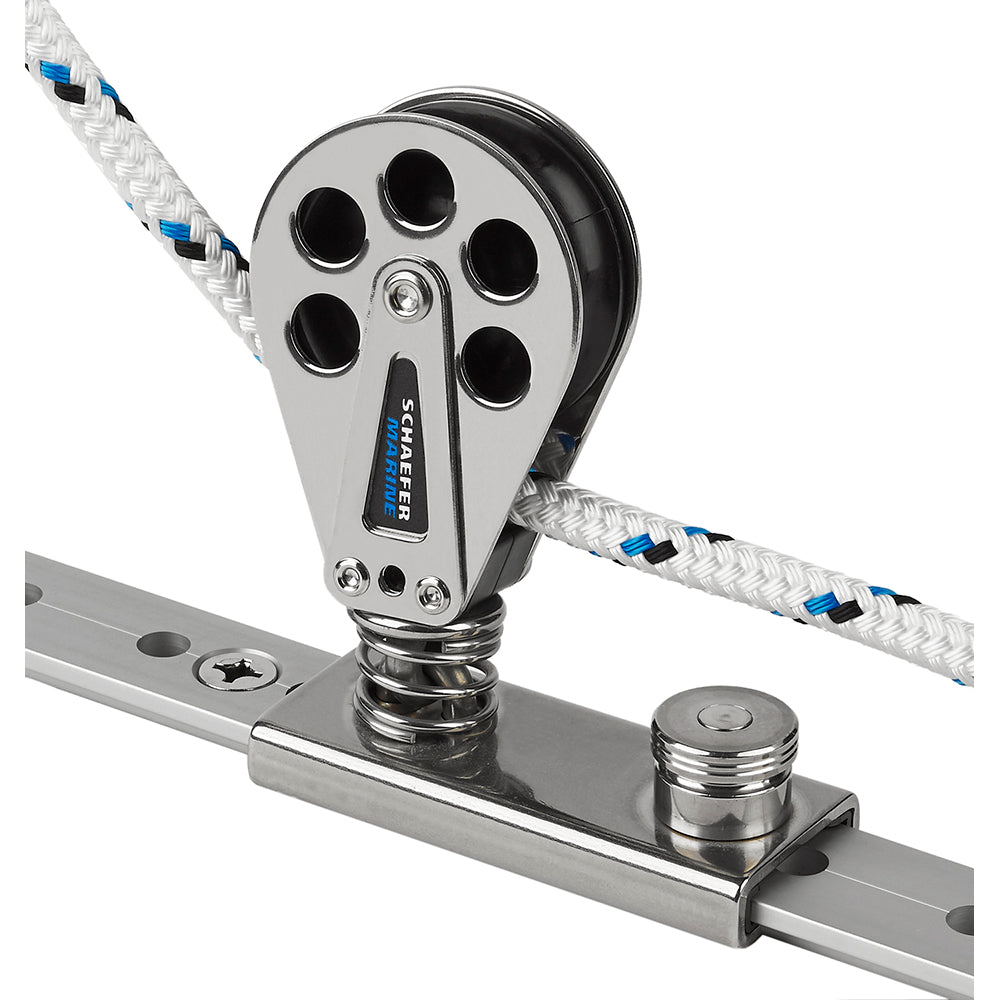

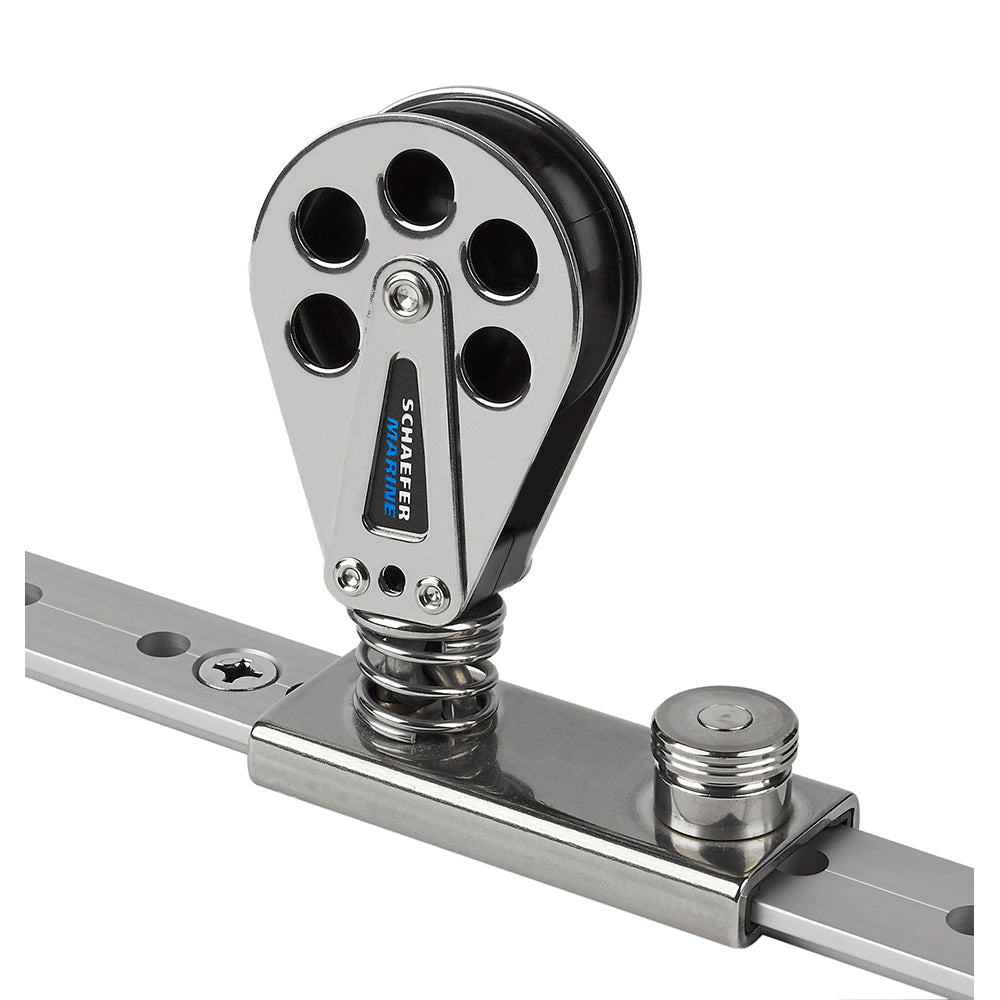

This Schaefer Marine spring-loaded slide is designed for 1-1/4" T-track systems, featuring a Delrin sheave for smooth operation and reliable performance. Built with stainless steel cheeks and a stainless steel slider, it includes a polyethylene liner and pin stop for straightforward adjustment.
Key Specifications:
- Track Size: 1-1/4" x 3/16" (32 mm x 5 mm)
- Sheave Diameter: 2-3/8" (60 mm)
- Maximum Line Size: 1/2" (12 mm)
- Safe Working Load (SWL): 2250 lbs. (1020 kg)
- Maximum Boat Length: 33' (10 m)
- Maximum Boat Weight: 12000 lbs. (5455 kg)
- Maximum Sail Area: 520 sq. ft. (48 m2)
- Dimensions: 4" L x 1-9/16" W x 4-15/16" H (102 mm x 39 mm x 126 mm)
- Bearing Height: 2-3/8" (67 mm)
- Weight: 14 oz. (397 g)
- Manufacturer Part Number: 705-92
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-107262
- Model / MPN
- 705-92
- UPC / GTIN
- 740507021305
- Package dimensions (H × W × L)
- 2" X 4" X 5"
- Package weight
- 1.17 lb
- Country of origin
- UNITED STATES
Specifications
- Type
- Schaefer Spring Loaded/Lined Slide/Stainless Steel f/1-1/4"
