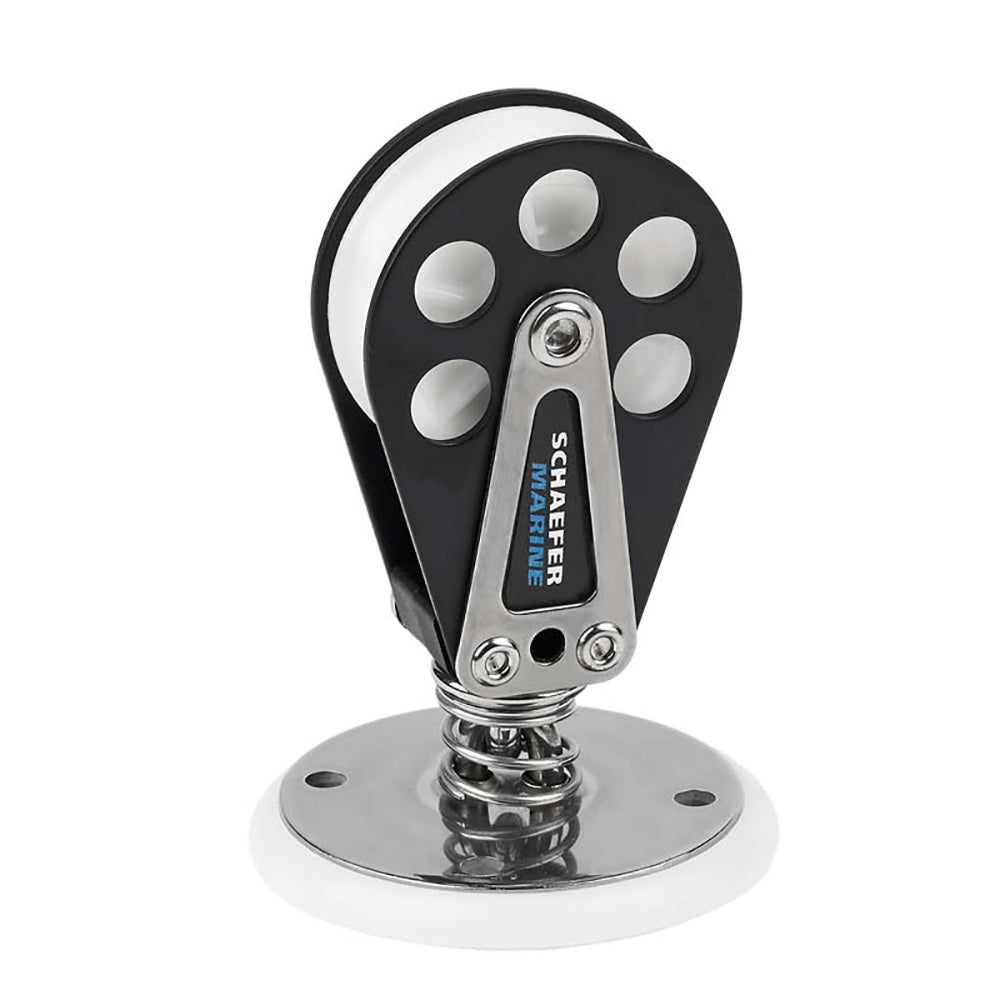

Schaefer Marine 5 Series Stand-Up Swivel Block, 2" Sheave, 1750 lbs SWL

Schaefer Marine 5 Series Stand-Up Swivel Block, 2" Sheave, 1750 lbs SWL

SKUCT-107252

$193.98
$193.98
Sale Sold out
Shipping calculated at checkout.
Shipping rewards at $100 U.S. orders of $100 or more get free standard shipping, plus $10 off Expedited and Overnight.

Out of stock

Use the Tug & Tow SKUInclude this SKU when you contact us about fit, availability, or reorders.
Delivery shown at checkoutShipping options, final costs, and delivery estimates appear before payment.
Check fit before orderingReview dimensions, part numbers, model details, and compatibility notes.
Confirm the details before checkoutFit can depend on your boat, RV, trailer, vehicle, or equipment. Contact us before ordering if compatibility is critical.Ask a product question

Product details

Review the details before ordering.

Ensure smooth and reliable rigging operation on your vessel with the Schaefer Marine 5 Series Stand-Up Swivel Block. Engineered for demanding marine environments, this robust block features hardcoat anodized aluminum cheeks and a UV-protected Delrin™ sheave for superior durability and minimal friction. Its innovative design allows for full 360° swivel and tilt, preventing line entanglement and optimizing performance for fixed-position halyard, sheet, or control line fairleads. Invest in Schaefer Marine's legendary strength and innovation for your boat today.

Key Benefits & Features:

  • Durable Construction: Built with tough hardcoat anodized aluminum cheeks to withstand harsh marine elements and potential impacts.
  • Smooth, Efficient Operation: Equipped with a UV-protected Delrin™ sheave, ensuring high safe working load and friction-free line movement.
  • Optimized Articulation: Block swivels 360° and tilts in all directions, providing versatile rigging options and preventing line tangles.
  • Deck Protection: A heavy-gauge stainless steel spring prevents the block from contacting the deck, protecting your vessel's surface.
  • Superior Load Distribution: Features a large diameter base designed to distribute loads over a greater surface area, enhancing stability and safety.
  • High Strength-to-Weight Ratio: Offers exceptional strength without adding unnecessary weight to your rigging system.

Specifications:

  • Sheave Diameter: 2 inches (51 mm)
  • Maximum Line Diameter: 7/16 inch (11 mm)
  • Safe Working Load (SWL): 1750 lbs (790 kg)
  • Overall Height: 4 1/32 inches (103 mm)
  • Diameter (includes urethane base): 2 7/8 inches (73 mm)
  • Weight: 7.0 oz (198 g)
  • Required Fasteners: (4) #10 RH (5 mm)
  • Center-to-Center Fastener Distance: 1 13/32 inches (36 mm)

Recommended Pairings:

  • Pair with the Schaefer Marine Backing Plate #97-48 (sold separately) for enhanced installation and load distribution.
