Scout Wave Omnidirectional TV/FM Antenna with 25dB Amplifier

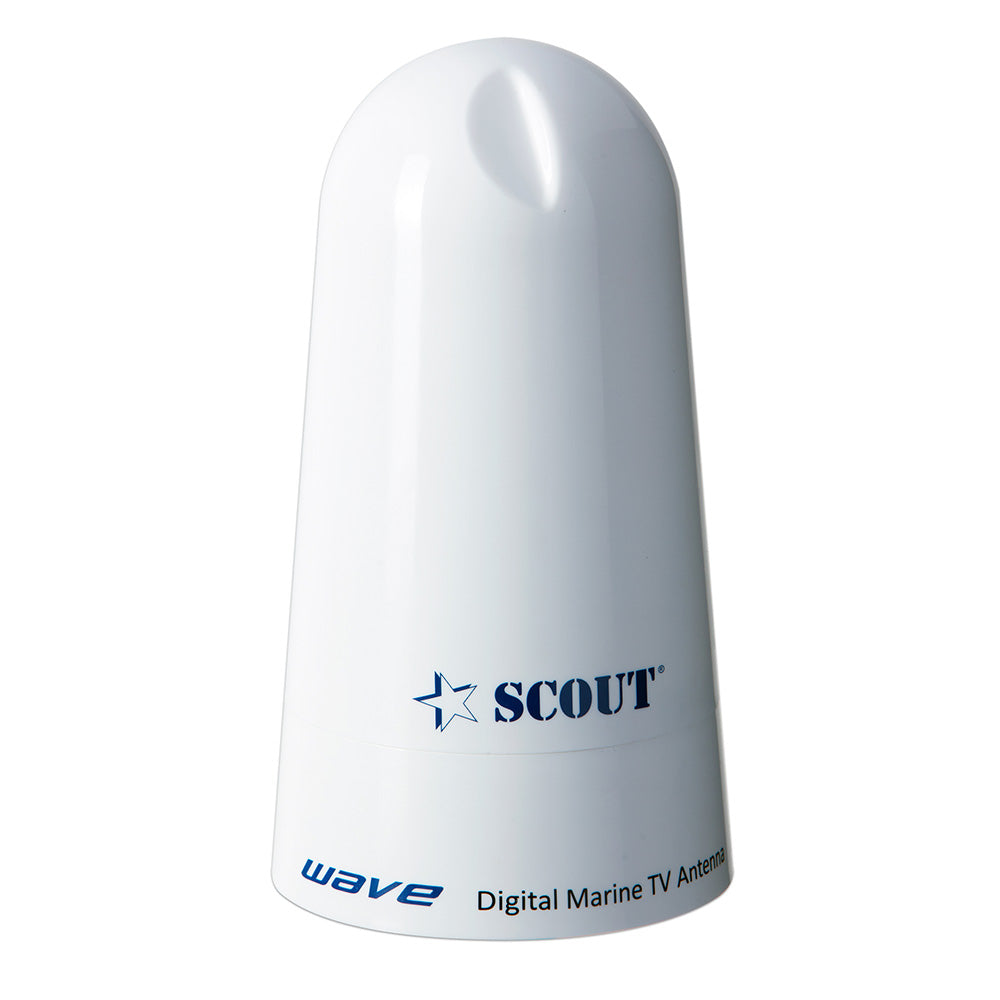

The Scout Wave is a compact, omnidirectional TV and FM antenna designed for marine environments. Measuring 4 in. in diameter and 8 in. in height, this antenna provides 360-degree reception of digital and analog terrestrial signals, eliminating the need to manually orient the device toward a transmitter.

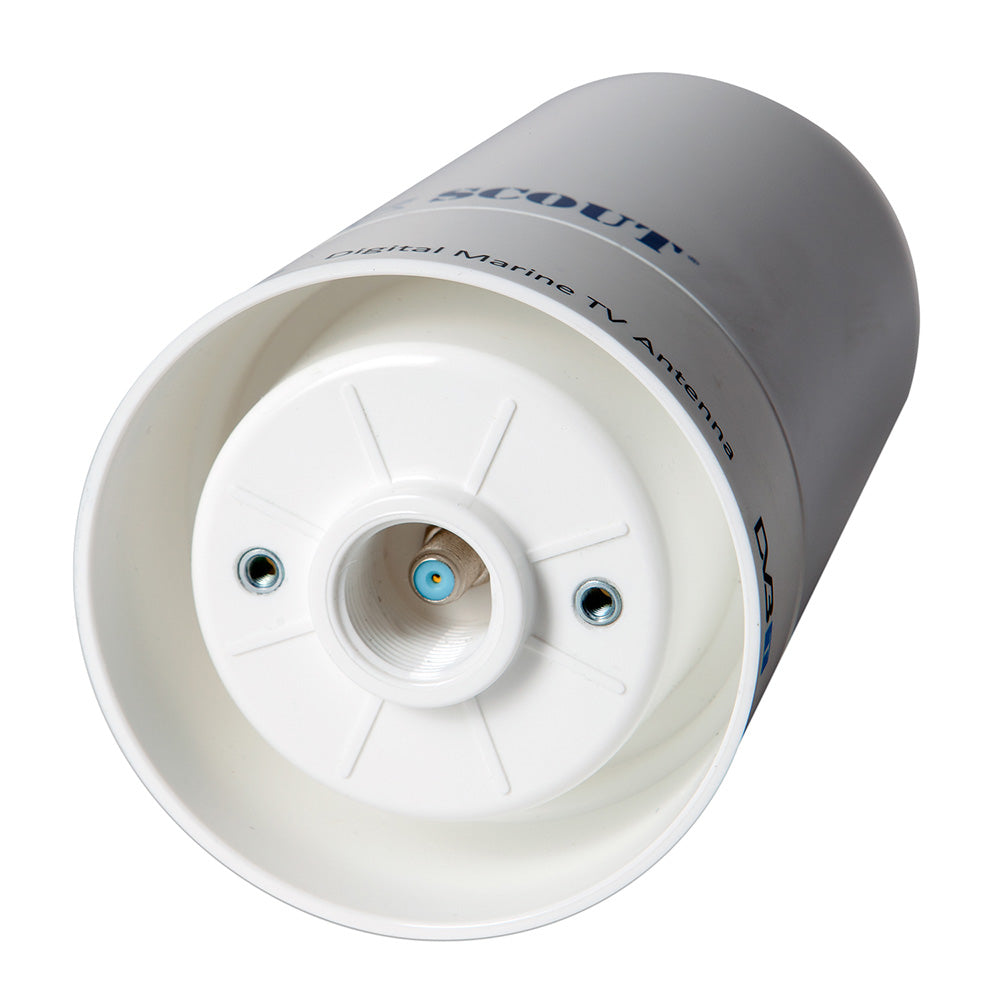

Equipped with a built-in 25 dB high-gain, low-noise amplifier, the Wave ensures clear signal reception for both horizontal and vertical polarization. The included 12V power inserter/splitter features two outputs, allowing simultaneous connection of a TV and an FM radio. The antenna is housed in a durable, UV-resistant ASA casing and can be mounted on standard 1 in. x 14 threaded mounts or as a permanent through-hole deck installation.

Key Specifications and Features:

• Reception: 360-degree omnidirectional
• Frequency Range: 40-860 MHz
• Channels: 2-69
• Gain: 25 dB
• Impedance: 75 ohms
• Noise Figure: <1.7 dB
• Power Requirements: 12V DC
• Connector Type: F-connector
• Dimensions: 4 in. diameter; 8 in. height

Installation Kit Includes:

• 12V fused power cable
• 10 m (33 ft.) 75 Ohm coaxial cable
• 1 m (3.3 ft.) TV cable
• 2 F-type connectors
• Mounting hardware: 2 screws, 4 washers, 2 grower washers, and 4 nuts
