Sea-Dog USB A and USB C Square Surface Mount Power Socket

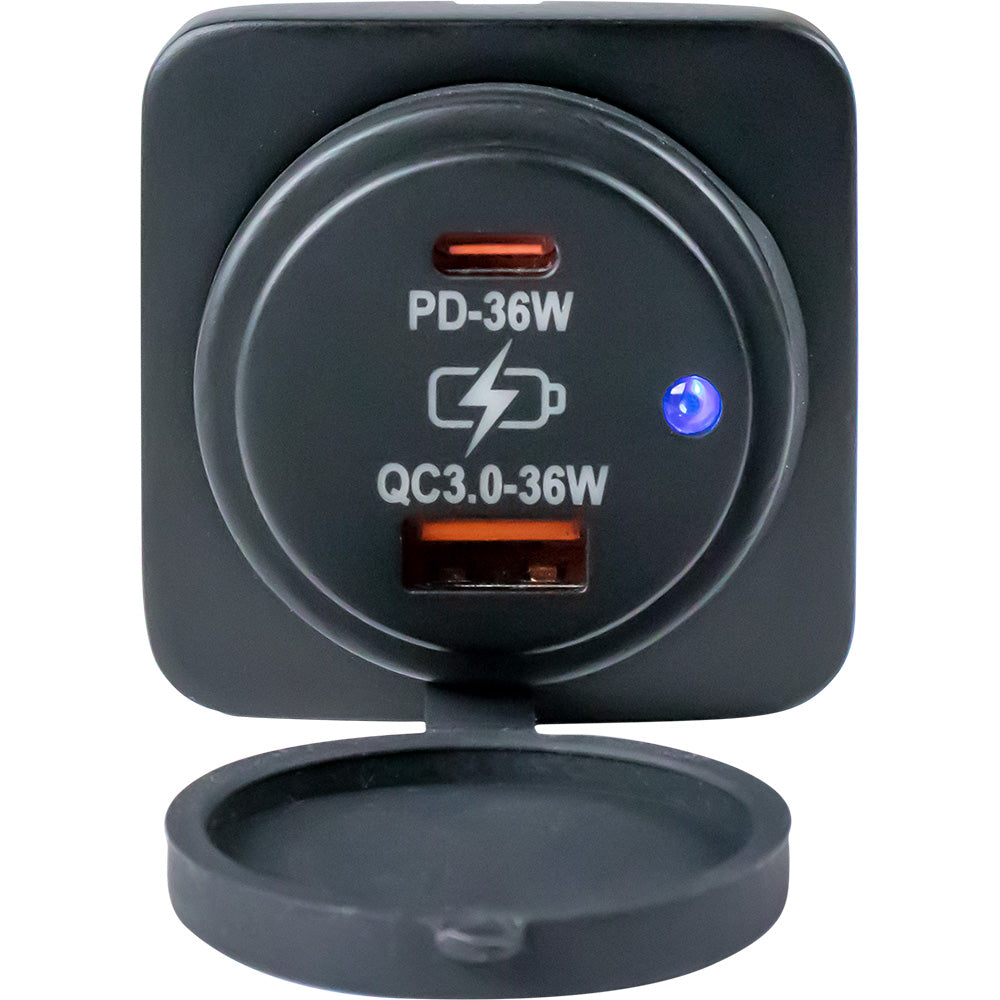

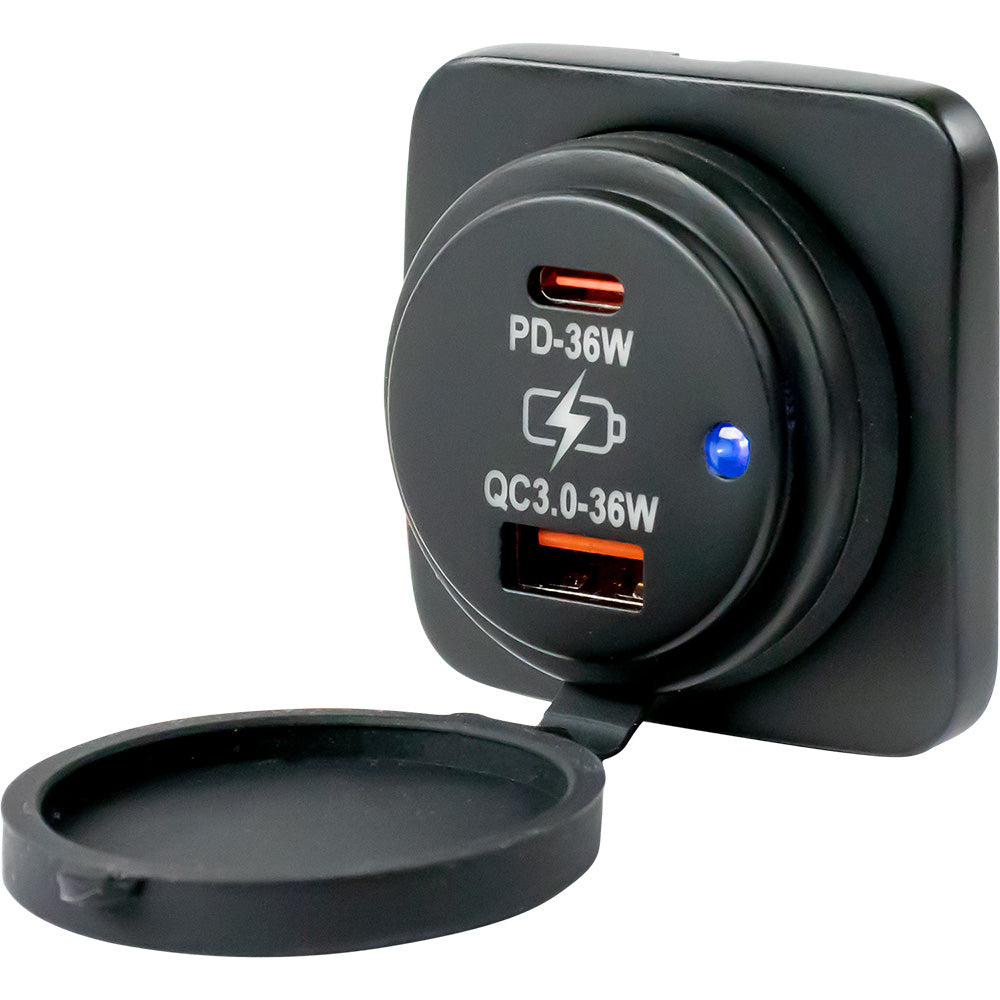

The Sea-Dog USB A and USB C Square Surface Mount Power Socket allows for the simultaneous charging of two devices. It features a total output of 6A, providing 3A per side when both ports are in use. Designed with blue LED illumination and an IP65 rating, this socket is built for durability and convenience in marine or vehicle electrical systems.

Features:

• USB 3.0 port with Quick Charging (QC) support for phones, tablets, and pads
• USB-C port with Power Delivery (PD) for fast and flexible charging

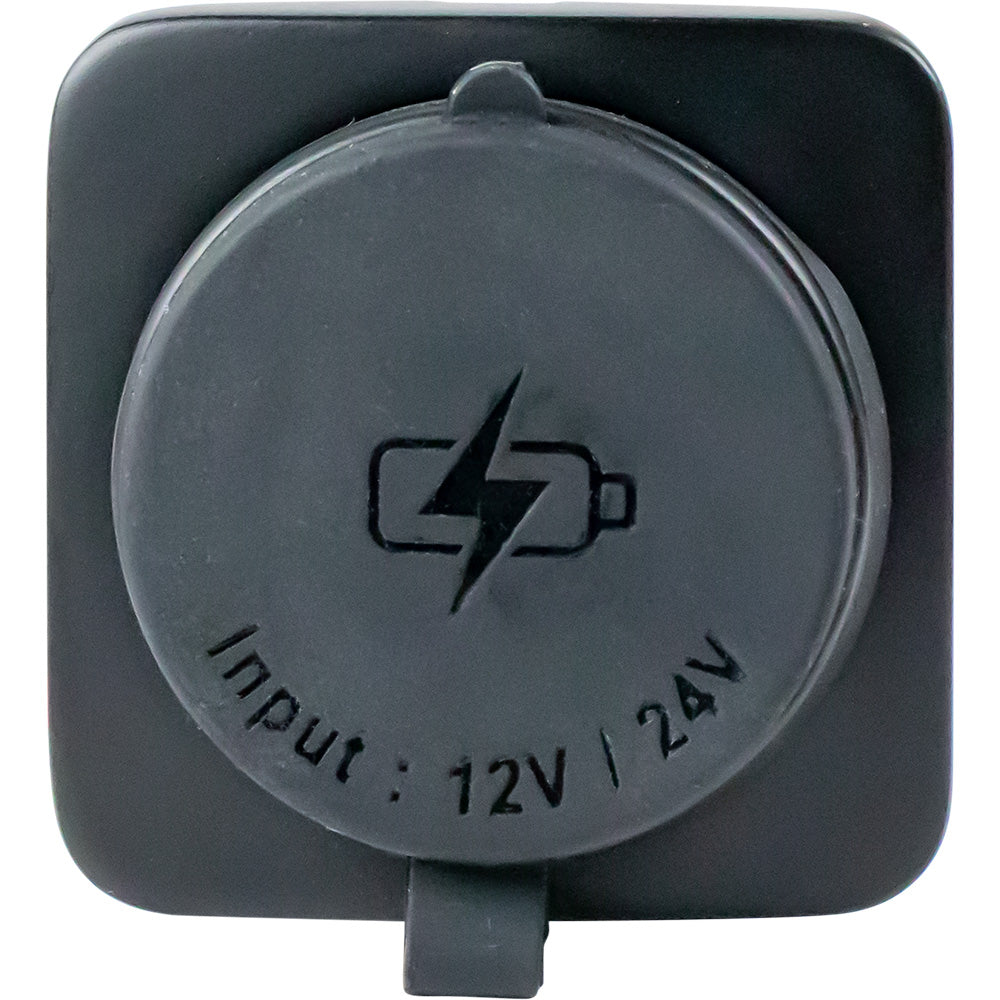

• Constructed from injection-molded nylon with an integrated protective dust cap
• Blue LED illumination indicates power availability
• IP65-rated for dust and moisture resistance
• CE and RoHS compliant

Technical Specifications:

• Input: 8-32VDC
• Total Output: 5V/6A
• USB-C Capacity: 60W at 24V
• USB 3.0 Capacity: 36W at 12V
• Dimensions: 1-15/16 in. x 1-15/16 in.
• Depth: 3/4 in.
• Weight: 0.07 lbs.
• Mounting: Requires a 3/16 in. hole for wiring and two #6 screws for surface mounting (screws not included)

Regulatory note: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
