• Seatronx 17" Pilothouse Touch Screen Display
1 1
1 product view Open images for a closer look Compare photos with product details

Seatronx

Seatronx 17" Pilothouse Touch Screen Display

Seatronx 17" Pilothouse Touch Screen Display

SKUCT-110503

$3,336.33
$3,336.33
Sale Sold out
Shipping calculated at checkout.
Shipping rewards at $100 U.S. orders of $100 or more get free standard shipping, plus $10 off Expedited and Overnight.

Out of stock

Use the Tug & Tow SKUInclude this SKU when you contact us about fit, availability, or reorders.
Delivery shown at checkoutShipping options, final costs, and delivery estimates appear before payment.
Check fit before orderingReview dimensions, part numbers, model details, and compatibility notes.
Confirm the details before checkoutFit can depend on your boat, RV, trailer, vehicle, or equipment. Contact us before ordering if compatibility is critical.Ask a product question

Product details

Review the details before ordering.

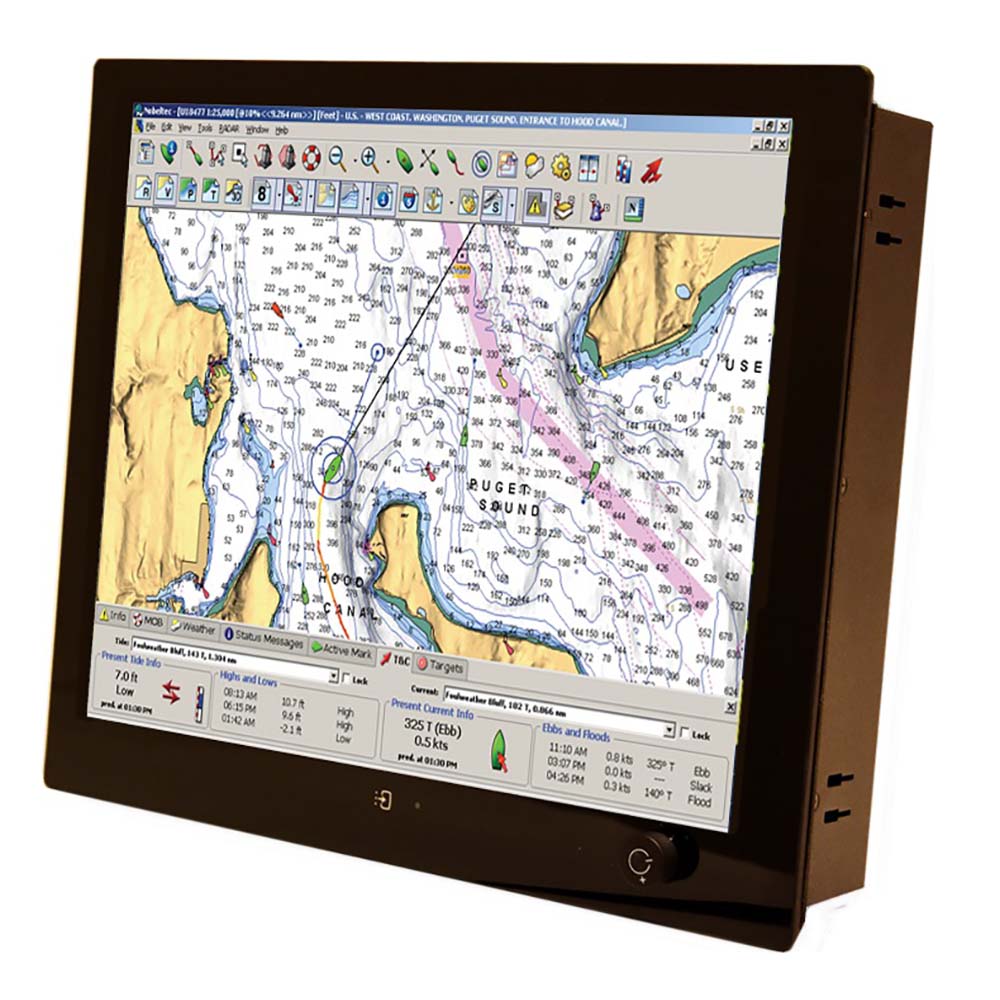

17" Pilothouse Touch Screen Display

Seatronx glass bridge displays are the perfect fit for those looking for rugged design combined with attractive styling.

The pilothouse displays feature up to 300 nits of low-power LED backlighting, which makes them a perfect fit for pilothouses where brightness is not a problem. They can also be completely dimmed for nighttime use using the front panel control.

Features:

  • Mounting - Panel Mount , Vesa Mount
  • Dimensions - 15.62" x 13.46" x 2.28"
  • Cutout Dimensions -  14.92" x 12.75" x 2.40"
  • Projected Capacitive Touch
  • Optical Bonding
  • Optional Remote Control

Technical Specifications:

  • Diagonal (active area) Inch - 17"
  • Native Resolution (Pixels) - 1280x1024
  • Contrast Ratio - 1000:1
  • Brightness - 350
  • Viewing Angle (left, right) - 85, 85
  • Viewing Angle (up, down) - 80, 80
  • Backlight Dimming - 0 - max
  • Backlight Lifetime (Hrs) - 50,000
  • Input terminal x1 HDCP HDMI - HDMI, DVI, VGA, Comp
  • Power Source - 9-34V + and -
  • Power Consumption (AMPS @ 24VDC) - 3
  • Inlet Plug DC Power - Screw Terminal
  • Sealing Front - IP68 with Potentiometer
  • Operating Temperature (°C) - -30 to 85
  • Storage Temperature (°C) - -30 to 85
