Shadow-Caster LED Lighting

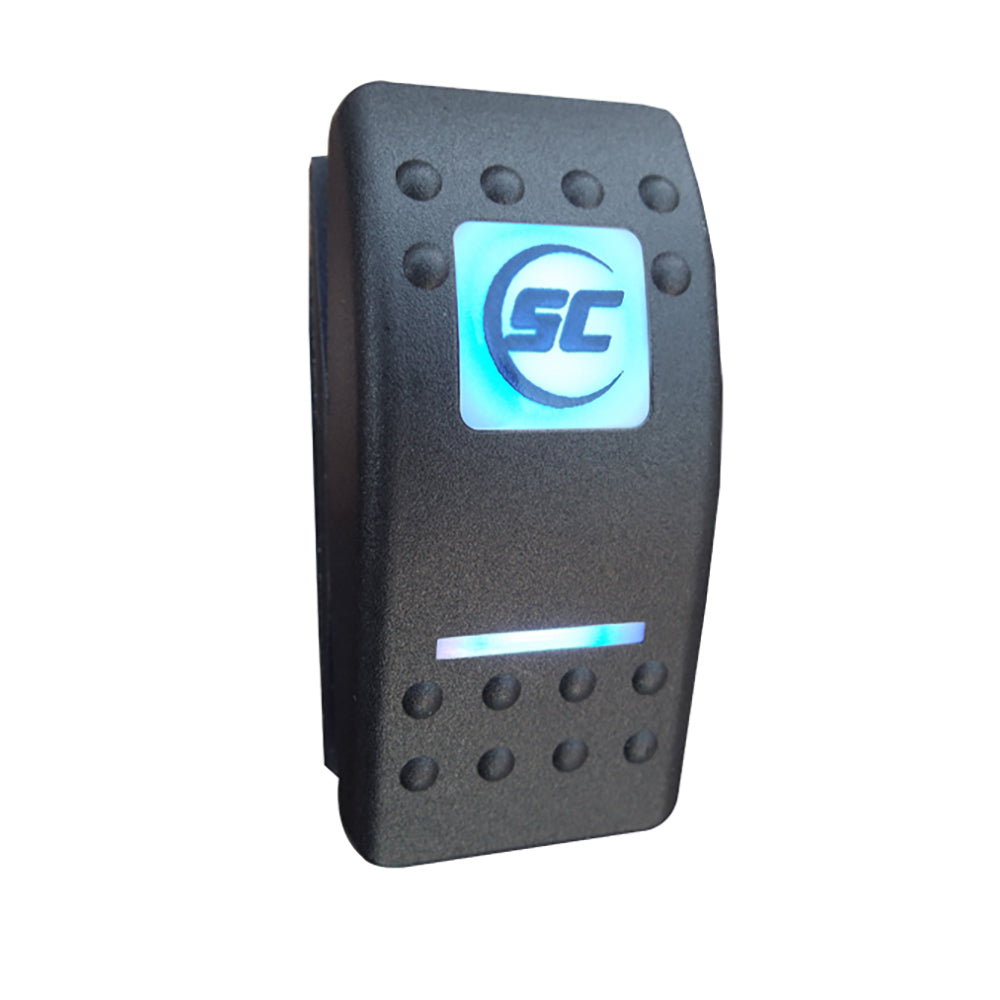

Shadow-Caster 3-Position On/Off/Momentary Marine LED Lighting Switch

Shadow-Caster 3-Position On/Off/Momentary Marine LED Lighting Switch

SKUCT-109884

$40.25
$40.25
Sale Sold out
Shipping calculated at checkout.
Shipping rewards at $100 U.S. orders of $100 or more get free standard shipping, plus $10 off Expedited and Overnight.

Low stock

Use the Tug & Tow SKUInclude this SKU when you contact us about fit, availability, or reorders.
Delivery shown at checkoutShipping options, final costs, and delivery estimates appear before payment.
Check fit before orderingReview dimensions, part numbers, model details, and compatibility notes.
Confirm the details before checkoutFit can depend on your boat, RV, trailer, vehicle, or equipment. Contact us before ordering if compatibility is critical.Ask a product question

Product details

Review the details before ordering.

Effortlessly control your marine LED lighting with versatile color and mode selection using the Shadow-Caster 3-Position On/Off/Momentary Marine LED Lighting Switch. Designed for harsh marine environments, this switch provides intuitive control over your lighting system, enhancing both functionality and ambiance on your vessel. Its robust IP66/68 sealing ensures protection against the elements, making it a reliable choice for any boat. Upgrade your lighting control today.

Key Benefits:

  • 3-Position Control: Offers flexible management with distinct On, Off, and Momentary settings to intuitively select lighting colors and activate special operation modes like strobes or fades.
  • Dual Voltage Compatibility: Supports both 12VDC and 24VDC systems, with a clear method for adapting to 24V operation using an optional 600-ohm resistor, providing broad application flexibility.
  • Robust Current Handling: Rated for 20 amps at 12VDC and 15 amps at 24VDC, ensuring safe and reliable power delivery to your LED lighting setup.
  • Superior Sealing: Features an IP66/68 rating for above-panel components, offering excellent protection against dust ingress and water submersion, ideal for marine conditions.
  • Wide Operating Temperature Range: Functions reliably in extreme conditions, from -40°C to +85°C, ensuring performance in diverse climates.
  • Durable Connections: Equipped with 1/4" (6.3mm) brass or copper/silver plated quick-connect terminals for secure, corrosion-resistant, and easy electrical connections.

Compatibility & Pairings:

  • For full ShadowNET® lighting control functionality, use with the Shadow-Caster SCM-SNLC single-zone lighting controller.
