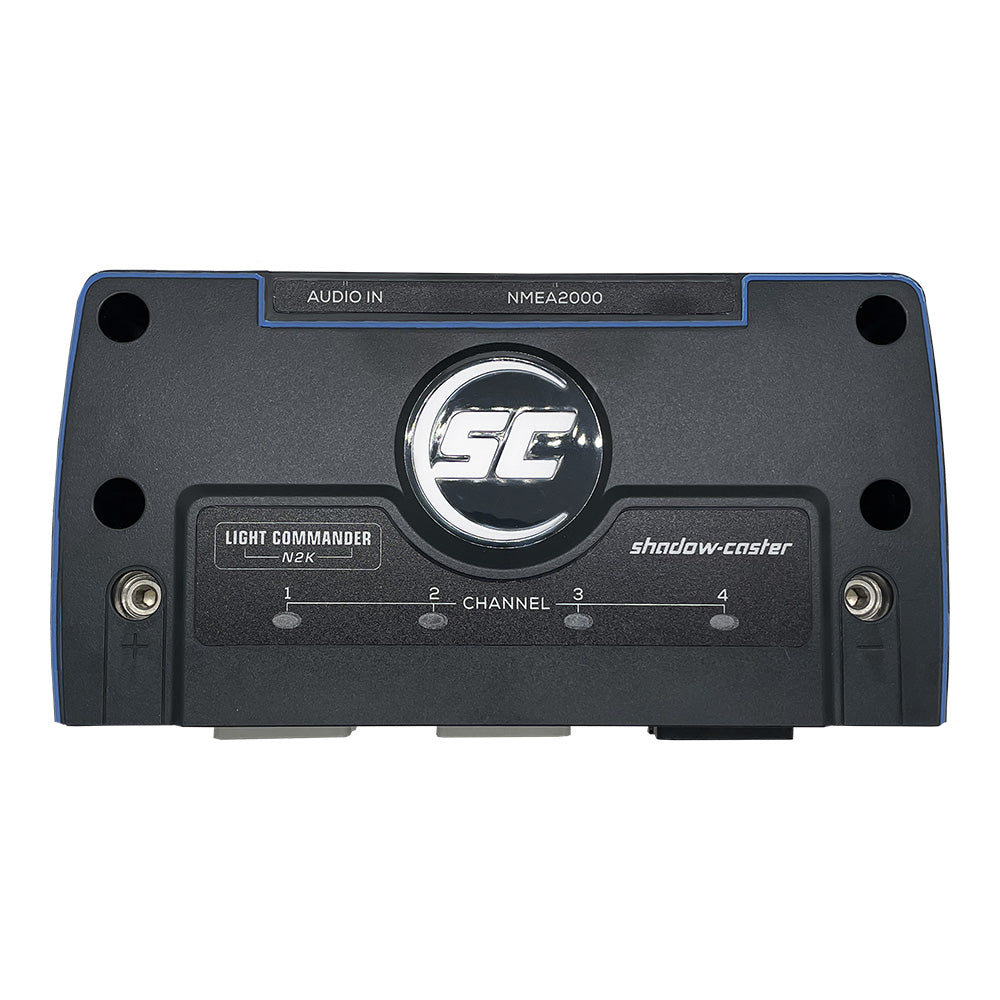

Shadow-Caster Light Commander SCM-LC-N2K NMEA 2000 6-Zone Lighting Controller

Shadow-Caster Light Commander SCM-LC-N2K is a marine LED lighting controller that connects through an NMEA 2000 backbone to compatible multifunction displays with built-in NMEA 2000 lighting support. It controls up to six lighting zones per module and supports RGB and RGBW lighting, scene effects, music synchronization, and system expansion through Shadow-NET.

• Controls up to six lighting zones per module; additional modules can expand control to 12 or 18 zones
• Supports up to four RGB or RGBW lighting zones
• Connects through an NMEA 2000 backbone to compatible MFDs with built-in NMEA 2000 lighting support
• Six instant-on switch inputs enable lighting control without MFD operation
• Supports color change, fade, rotation, strobe, and music synchronization effects
• Built-in 3.5mm female audio input and microphone for music synchronization
• IP67-rated enclosure with Deutsch-style IP67 connections
• Digital overcurrent protection rated at 15 amps per channel, with 60 amps maximum
• Supports over 600 watts of RGB lighting and Shadow-NET-connected modules
• 24-bit color support with gamma correction
• Input voltage range: 10 to 30V
• Enclosure dimensions: 8.9 in. x 4.75 in. x 1.8 in.
• Compatible with the Shadow-Caster SCM-ZC-REMOTE backlit zone controller keypad for control of four lighting zones
• Ethernet network interface connectivity is available on PLUS models
• Manufacturer part number: SCM-LC-N2K
• UPC: 8500243422314
