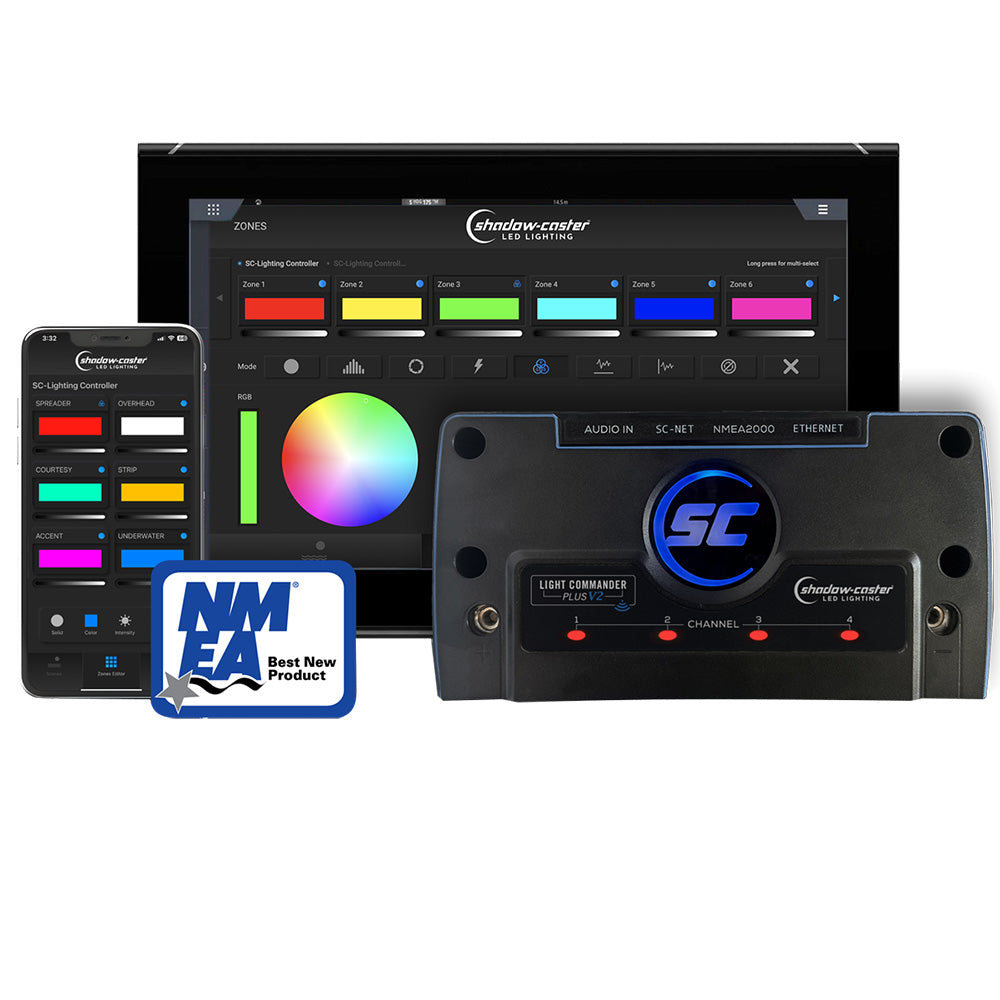

Shadow-Caster Light Commander V2, 6-Zone NMEA 2000 Lighting Controller

Transform your marine vessel's ambiance and functionality with the Shadow-Caster Light Commander V2. This pioneering 6-zone lighting controller offers unparalleled control over your LED system, engineered in compliance with the latest NMEA 2000 lighting control standards for seamless integration and enhanced interoperability. Command your lights with precision through a multifunction display, mobile app, or dedicated switch inputs, crafting dynamic lighting scenes from vibrant color changes to music-synchronized effects. Upgrade your marine lighting experience for both aesthetic appeal and advanced control.

Key Benefits & Specifications:

• Multi-Zone Control: Manages up to 6 independent lighting zones, expandable to 12 or 18 with additional SCM-LC-N2K modules, providing comprehensive vessel-wide illumination.
• Advanced Connectivity: Offers versatile control via NMEA 2000 backbone, MFD network port, built-in Bluetooth/Wi-Fi, and HTML Ethernet interface for ultimate flexibility.
• NMEA 2000 Certified: Crafted in compliance with the latest NMEA 2000 lighting control standards, ensuring seamless integration and interoperability with your marine electronic systems.
• Dynamic Music Synchronization: Features an integrated 3.5mm audio port and onboard Digital Signal Processing (DSP) for dynamic music synchronization, bringing your boat's lighting to life with your favorite tunes.
• Robust Marine Construction: Encased in a durable IP67 water-resistant housing with Deutsch-style IP67 connections, guaranteeing reliable performance and longevity in harsh marine environments.
• Instant Activation: Includes six dedicated 'Instant ON' switch inputs, allowing direct light activation and control for individual zones without requiring MFD interaction.
• High Power Output: Supports over 600 watts of RGB lighting, delivering 15 amps per RGB(W) zone with a 60-amp maximum, capable of handling extensive lighting setups.
• Broad Voltage Compatibility: Operates within a wide 10 to 30V input range, ensuring broad compatibility with various marine electrical systems.
• Vivid Color Support: Provides 24-bit color support and gamma correction for universal color accuracy and a vast spectrum of customizable lighting options.
• Integrated Safety Features: Equipped with digitally fused over-current protection circuits, set at 15 amps per channel, to enhance safety and protect your lighting system.

Compatibility & Pairings:

• Compatible with select multifunction displays from Garmin, Simrad, Lowrance, B&G, Raymarine, and Furuno.
• Expand your system by connecting additional SCM-LC-N2K modules for more lighting zones.
• Integrates seamlessly with Shadow-NET™ enabled lighting devices.
• Control via the Shadow-Caster mobile app, available for iOS and Android devices.
