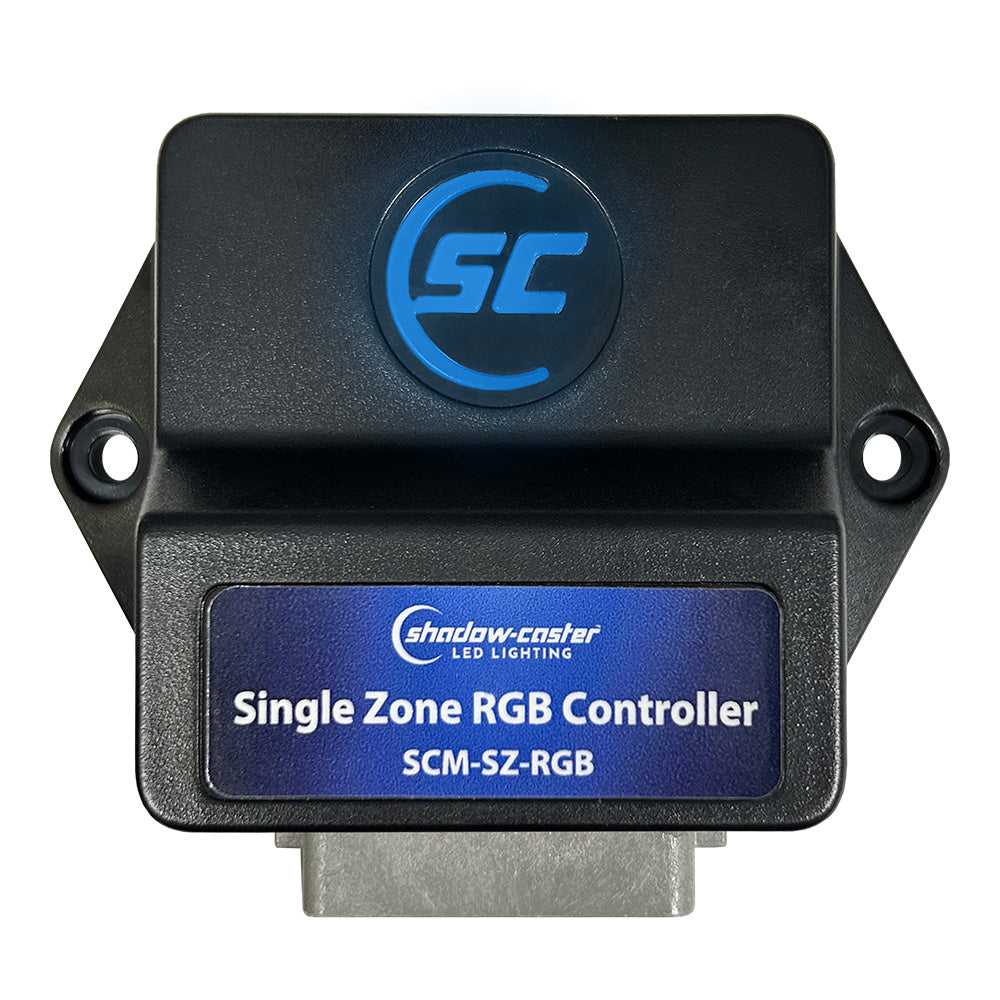

Shadow-Caster Single Zone RGB(W) LED Lighting Controller SCM-SZ-RGB

The Shadow-Caster Single Zone RGB(W) Controller is a marine-grade lighting controller designed for simple, effective management of your RGBW LED lighting system. This controller allows for color and brightness adjustments using a standard push-button or off/on/momentary switch. It features an integrated Shadow-NET interface to synchronize performance with other compatible Shadow-Caster devices, such as underwater and interior lights.

Key Features:

• Shadow-NET enabled for device synchronization and system expansion
• Built-in backlit SC logo serves as a status indicator for brightness, color, and fault detection
• Supports color rotation, single-color fade, and multi-color fade modes
• Includes auto-detect functionality for the white channel
• Integrated overcurrent protection
• Compatible with 12V and 24V power systems
• Expandable with the optional SCM-RGB-EXP module for additional lighting zones

Technical Specifications:

• Maximum Current Draw: 10A
• Ingress Protection Rating: IP67 (housing and connector)
• Dimensions: 3.5 in. x 2.9 in. x 1.2 in. (88 mm x 72.4 mm x 30.6 mm)
