Brand: Shakespeare

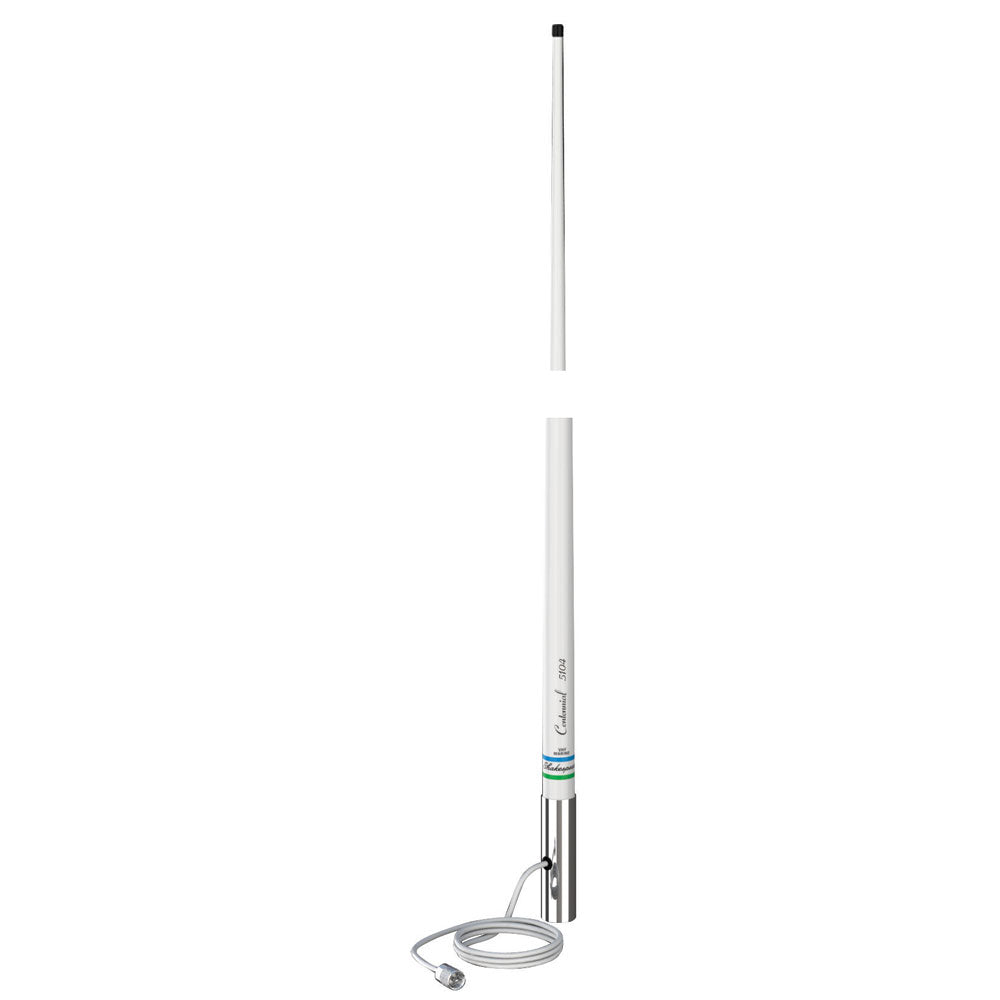

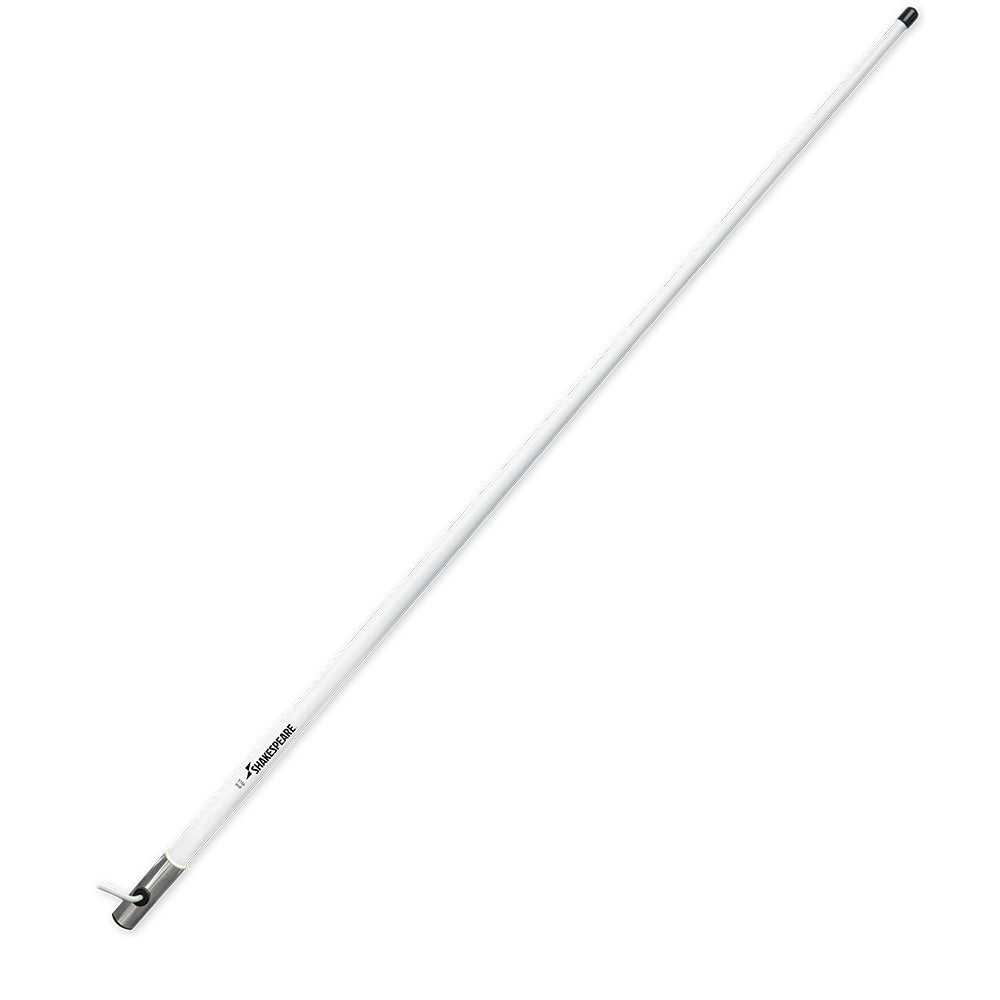

Shakespeare 5104 4' VHF Marine Band Antenna
Shakespeare 5104 4' VHF Marine Band Antenna
10+ available
The Shakespeare 5104 is a 4' (1.2m) VHF marine band antenna designed for reliable performance. It features brass and copper elements encased in a durable, high-gloss white polyurethane finish that is resistant to sun-induced yellowing.
- Band: VHF Marine Band
- Gain: 3dB
- Max input power: 50W
- SWR: Nominally 1.5:1 at 156.8 MHz
- Bandwidth: 5 MHz within 2.0:1 VSWR

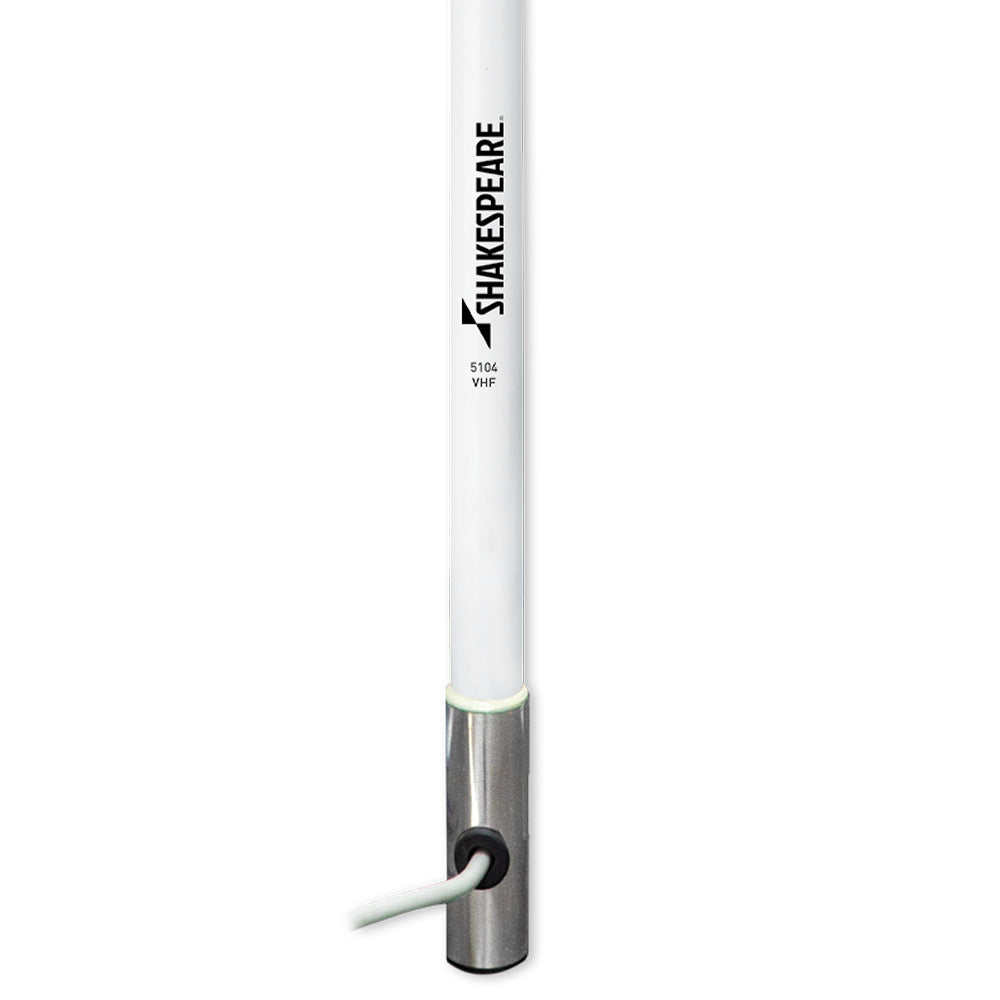

- Ferrule: Chrome-plated brass with standard 1"-14 thread
- Coaxial cable: 15' of RG-58 cable included
- Connector: PL-259 connector included (not installed)
- One-section design
- Suggested mount: Style 4187 or 5187 ratchet mount (sold separately)
- Warranty: 2-year limited warranty
This end-fed antenna with matching stub is designed for vertical polarization and provides 50 ohms impedance.
Product facts
- CT SKU
- CT-102222
- Model / MPN
- 5104
- UPC / GTIN
- 719441100896
- Package dimensions
- 3" X 3" X 55"
- Package weight
- 2.1 lb
- Specifications
- Antenna Band = VHF\nColor = White\nFerrule Type = Chrome Plated\nLength (Inches) = 48"
