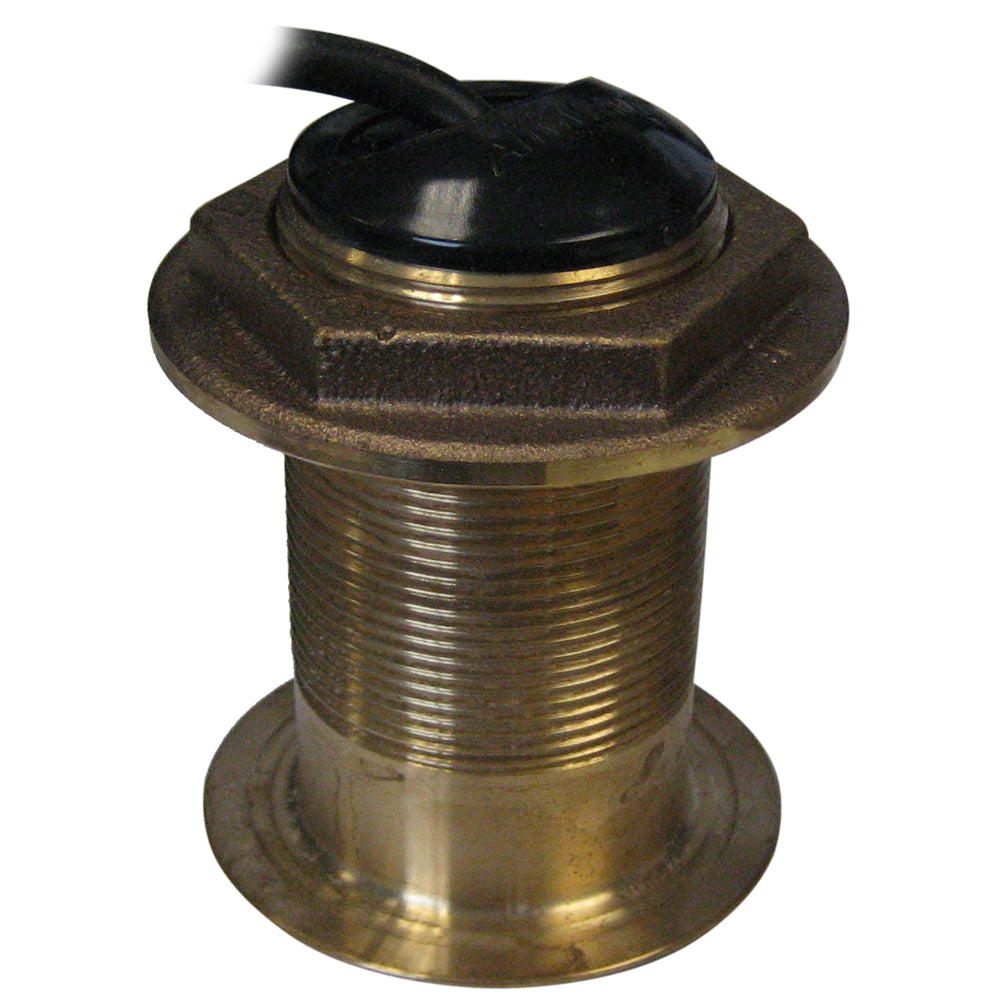

SI-TEX B-60-20-ES Bronze Tilt Element Transducer, 50/200 kHz, 30' Cable

Gain clear underwater insights with the SI-TEX B-60-20-ES Tilt Element Transducer. Engineered for accuracy and durability, this bronze thru-hull transducer provides essential depth and temperature data to enhance your marine navigation and fishing success. Its robust construction ensures reliable performance in demanding marine environments. Upgrade your vessel's electronic capabilities and explore the depths with confidence.

Key Benefits:

• Durable Bronze Construction: Offers superior corrosion resistance and longevity in saltwater conditions.
• Optimized Signal Transmission: Features a 20-degree tilt element to compensate for hull deadrise angles from 16 to 24 degrees, ensuring a true vertical beam for accurate readings.
• Versatile Dual-Frequency Performance: Operates at 50 kHz with a wide 45-degree beam for deep water detection and 200 kHz with a narrow 12-degree beam for detailed shallow water target identification.
• Integrated Temperature Sensor: Provides real-time water temperature data, crucial for fishing and understanding water conditions.
• Extended Installation Flexibility: Comes with a 30-foot cable to accommodate various boat layouts and installation requirements.
• Powerful Signal Output: Delivers 600W RMS power for clear and precise echo returns, enabling maximum depth readings of up to 1200 ft.

Specifications:

• Mount Type: Thru-Hull
• Housing Material: Bronze
• Tilt Angle: 20 degrees
• Hull Deadrise Compatibility: 16-24 degrees
• Frequency: Dual 50/200 kHz
• Beam Angles: 45° @ 50kHz / 12° @ 200kHz
• Power Output: 600W RMS
• Cable Length: 30 ft
• Connector: 8-pin
• Integrated Temperature Sensor: Yes
• Maximum Depth Range: 800-1200 ft (50 kHz) / 400-700 ft (200 kHz)
• Acoustic Window Material: Urethane
• Compatible Hull Materials: Fiberglass or wood
• Installation Hole Diameter: 2-3/8"
• Dimensions: 3.75" H x 3.44" OD

Compatibility:

• SI-TEX EC5F, EC7F, ES502 Fishfinder/Chartplotter models.
