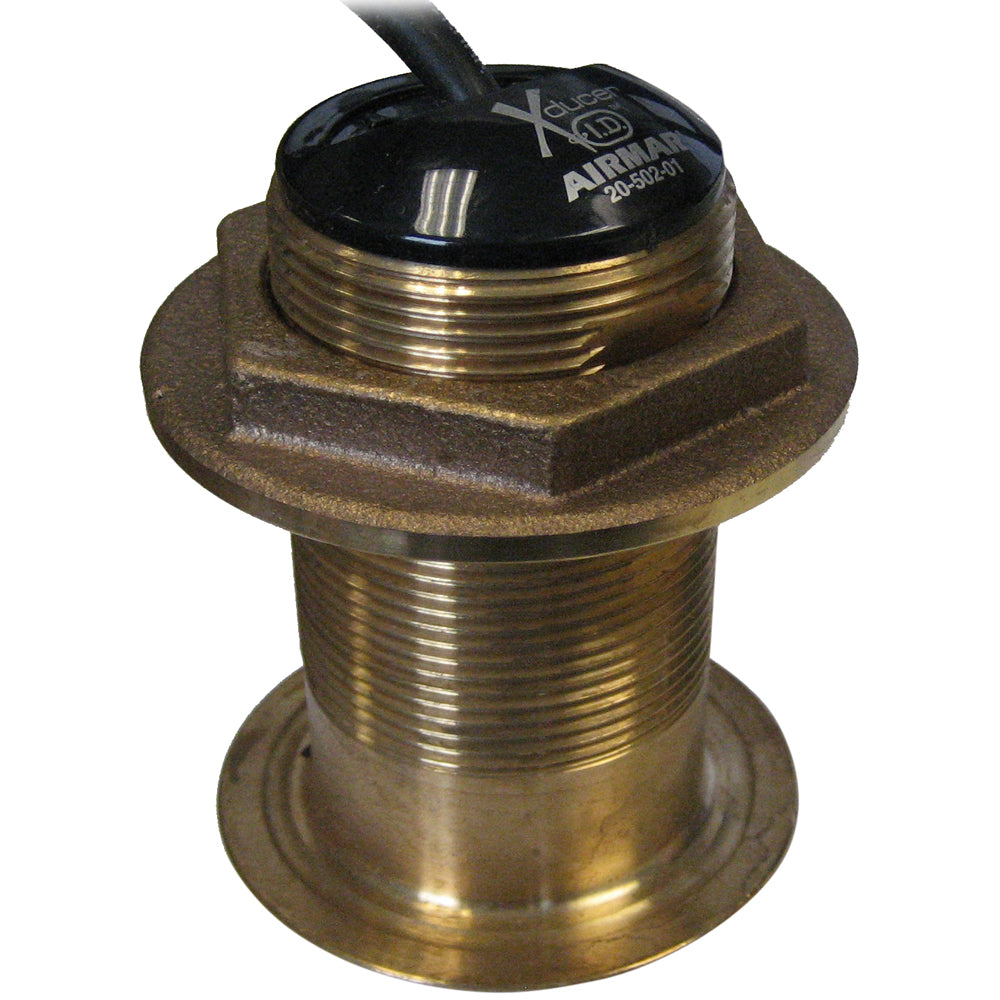

SI-TEX B-60-20-CX Bronze Tilted Element Thru-Hull Transducer, 600W w/Temp

Unlock superior underwater visibility with the SI-TEX B-60-20-CX Bronze Tilted Element Thru-Hull Transducer. Engineered for optimal performance on vessels with 16° to 24° hull deadrise, this low-profile transducer eliminates the need for a fairing block by integrating a fixed 20° tilted ceramic element. It ensures your sonar beam is always directed straight down for the most accurate depth readings and precise target detection. Upgrade your fishing and navigation capabilities today for clearer insights beneath the waves.

Key Benefits & Features:

• Deadrise Compensation: Features a fixed 20° tilted element to compensate for 16° to 24° hull deadrise, providing a vertical beam without a fairing block.
• Powerful Dual-Frequency Sonar: Operates at 600W RMS across dual 50/200kHz frequencies, delivering versatile performance for both shallow and deep-water fishing.
• Exceptional Depth Capability: Achieves maximum depths of 1200 ft (366 m) at 50 kHz and 700 ft (213 m) at 200 kHz for comprehensive bottom tracking.
• Integrated Temperature Sensor: Provides fast-response water temperature data directly to your display, crucial for finding optimal fishing grounds.
• Low-Profile Design: Its bronze housing extends only 3/16 inch (5 mm) outside the hull, minimizing drag and maintaining your boat's running performance.
• Robust Construction: Durable bronze housing is suitable for fiberglass or wood hulls.
• Wide Beamwidth: Features a 45° beam at 50 kHz for broad coverage and a 12° beam at 200 kHz for detailed target separation.
• Optimized for Smaller Vessels: Ideal for center-console and trailered boats up to 26 feet (8m) in length.
• Extended Cable Length: Comes with a 30-foot (9m) cable and an 8-pin connector for flexible installation and reliable data transfer.

Compatibility & Pairings:

• Directly compatible with SI-TEX CVS-126 and CVS-128 fishfinders.
• The CX model also supports SI-TEX SVS-560CF and SVS-560CF-E units.
