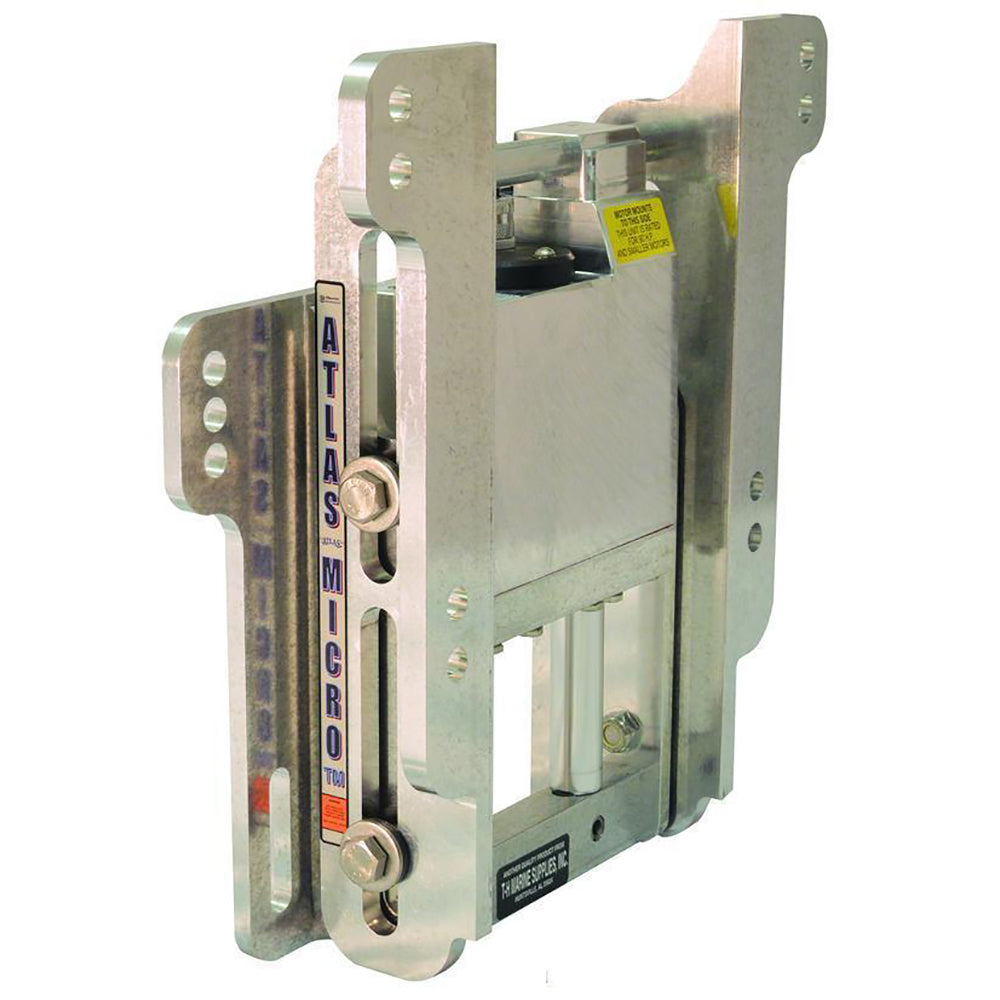

T-H Marine Atlas Micro Jacker 4 in. Setback Hydraulic Jack Plate for Small Outboards
T-H Marine Atlas Micro Jacker 4 in. Setback Hydraulic Jack Plate for Small Outboards
Sold out
About this product
The T-H Marine Atlas Micro Jacker is a compact hydraulic jack plate for small outboards, providing 4 in. of setback and self-contained hydraulic lift.
- Supports outboards up to 425 lb. dry weight and 115 HP
- Hydraulic lift operates in approximately 8 seconds
- Product weight: 23 lb.
- Overall footprint: 14-5/8 in. wide by 11-1/2 in. high
- Adjustment range with the Micro Jacker in place: approximately 8.5 in., including 1.5 in. at the transom, 1 in. on the motor side, 1 in. with the motor, and 5 in. of hydraulic lift
- Designed for shallow-water boats including Gheenoes, river runners, jon boats, and skiffs
- Optional 4 in. setback clamp-on motor adapter, part AHJM-CMA-DP, is available for smaller engines with clamp-on brackets that do not use the standard BIA engine hole pattern
- Manufacturer part number: AHJM-4-DP
- Regulatory note: This product may expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. See P65Warnings.ca.gov for more information.
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-109252
- Model / MPN
- AHJM-4-DP
- UPC / GTIN
- 733572073201
- Package dimensions (H × W × L)
- 5" X 15" X 18"
- Package weight
- 27.75 lb
- Country of origin
- UNITED STATES
Fit-sensitive item: confirm measurements, model numbers, and manufacturer details before ordering. Tug & Tow does not guarantee universal compatibility from a product page alone.
