Brand: Trident Marine

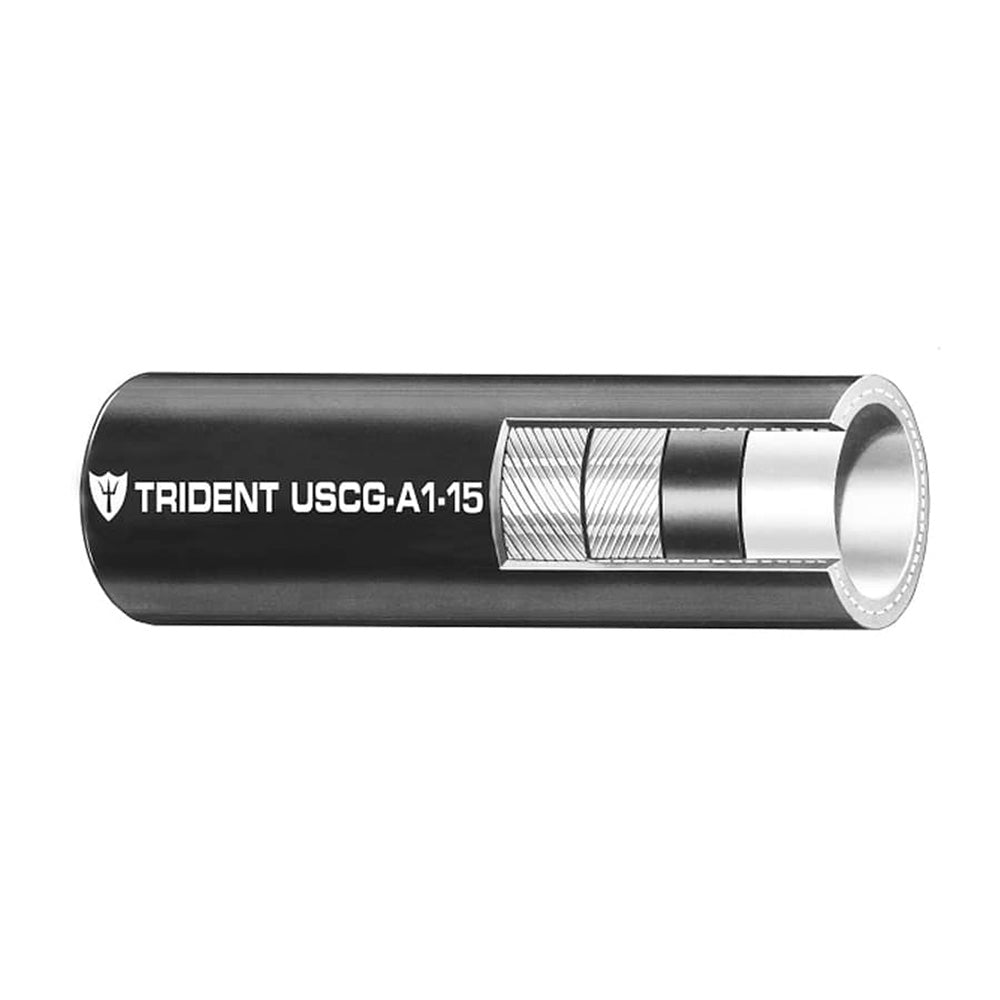

Trident Marine 3/8 in. x 50 ft. Type A1-15 Low Permeation Fuel Line Hose
Trident Marine 3/8 in. x 50 ft. Type A1-15 Low Permeation Fuel Line Hose
6 available
About this product
The Trident Marine 3/8 in. x 50 ft. Fuel Line Hose is a barrier-lined, Type A1-15 rated hose designed for use in marine fuel distribution, return, vent, and transfer systems. Featuring a nylon internal barrier, this hose prevents fuel from coming into direct contact with the rubber, providing significant resistance to permeation, fire, heat, cold, and aging.
Key Specifications and Construction:
- Inner Diameter: 3/8 in. (9.5 mm)
- Outer Diameter: 0.681 in. (17.3 mm)
- Length: 50 ft. (boxed)
- Temperature Range: -20°F to 212°F (-28°C to 100°C)
- Working Pressure: 100 psi (0.69 MPa)
- Burst Pressure: 400 psi (2.76 MPa)
- Bend Radius: 2 in. (50.8 mm)
- Construction: Nylon internal barrier with NBR tube, polyester 2-spiral reinforcement, and NBR/PVC blend cover
- Compatibility: Suitable for gasoline (including ethanol blends up to 85%), diesel, and bio-diesel (up to B100)
- Certifications: NMMA Type Accepted, CE certified, exceeds ABYC H-24 & H-33, SAE J1527, and ISO 7840 standards; USCG Type A1-15, CARB Executive Order RM-17-008, and EPA certified
Manuals & videos
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-112569
- Model / MPN
- 365-0386
- UPC / GTIN
- 704917010571
- Package dimensions (H × W × L)
- 3" X 18" X 18"
- Package weight
- 8.7 lb
- Country of origin
- UNITED STATES
Specifications
- ID Diameter (inches)
- 3/8"
- Length (Feet)
- 50'
Fit-sensitive item: confirm measurements, model numbers, and manufacturer details before ordering. Tug & Tow does not guarantee universal compatibility from a product page alone.
