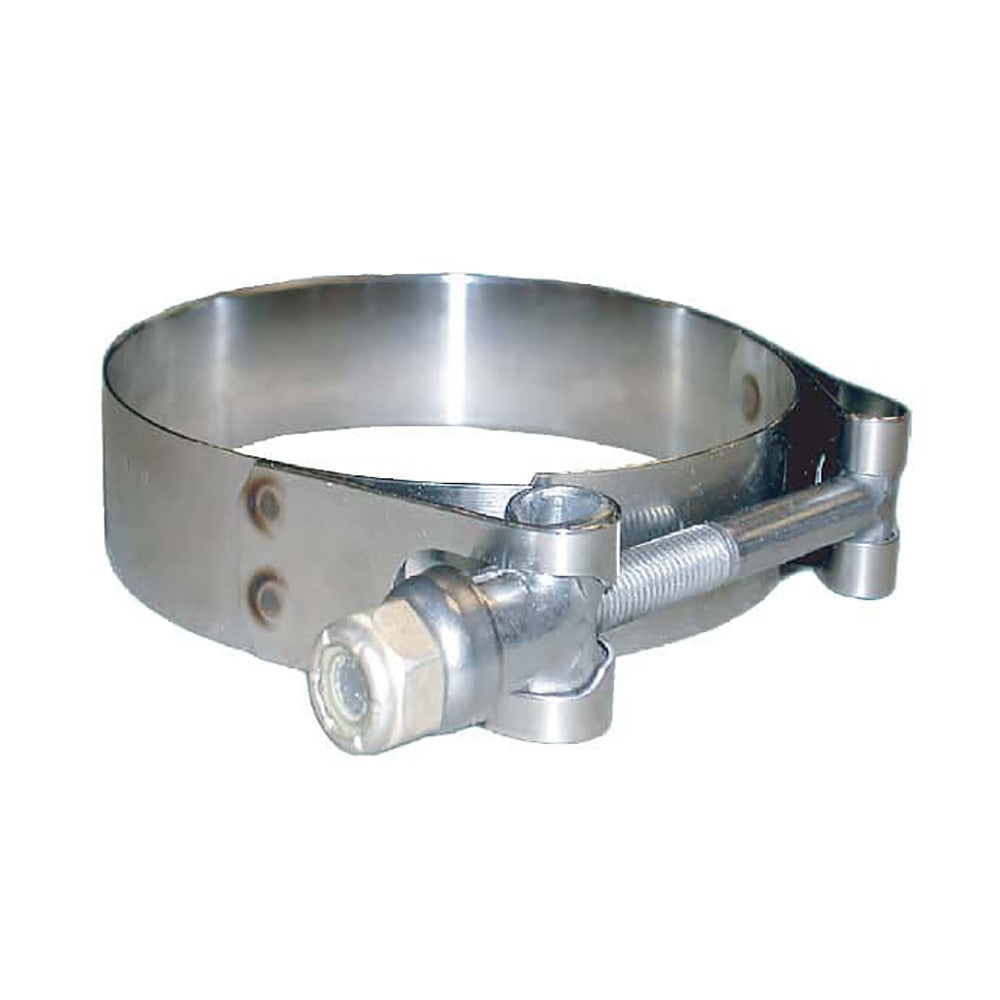

Trident Marine 720 Series T-Bolt Clamp, 316 SS, 2.28-2.59" Range

Ensure a robust, leak-free connection in your critical marine installations with the Trident Marine 720 Series T-Bolt Clamp. Engineered with safety and durability in mind, this heavy-duty clamp provides superior fastening for marine engine exhaust and cooling system hoses. Ideal for below-the-waterline applications, it meets stringent ABYC standards for peace of mind. Invest in Trident Marine for unparalleled security and longevity.

Key Benefits & Features:

• Superior Corrosion Resistance: Constructed with a 3/4" (19 mm) wide band and housing from durable 316 stainless steel, ensuring exceptional longevity and performance in harsh marine environments.
• Secure, Vibration-Resistant Fastening: Features an 18-8 stainless steel T-bolt and a nylon insert lock nut, providing superior strength and preventing loosening due to vibration.
• Optimal Sealing & Hose Protection: The wide 3/4" (19 mm) band ensures a greater area of uniform 360° clamping pressure, preventing hose extrusion and protecting soft rubber hose materials from damage.
• Versatile Fit: Designed to accommodate hose outer diameters (OD) from 2.28" to 2.59" (57.9 - 65.8 mm).
• Recommended for 1-7/8" to 2" Hoses: Specifically crafted for nominal hose inner diameters (ID) ranging from 1-7/8" to 2" (47.6 - 50.8 mm).
• ABYC Compliant: Meets ABYC standards for marine exhaust installations, ensuring high levels of safety and reliability.
• Recommended Torque: Max 75 inch-pounds (8.5 Nm) for optimal security.
• 3-Year Warranty: Backed by a 3-year warranty for assured quality and performance.

Compatibility & Pairings:

• Recommended for use with marine engine exhaust and cooling system hoses, elbows, and bellows, particularly thicker-walled rubber hoses.
• For wet exhaust installations, it is recommended to use two clamps on each end of the connection for maximum safety and a positive union.
