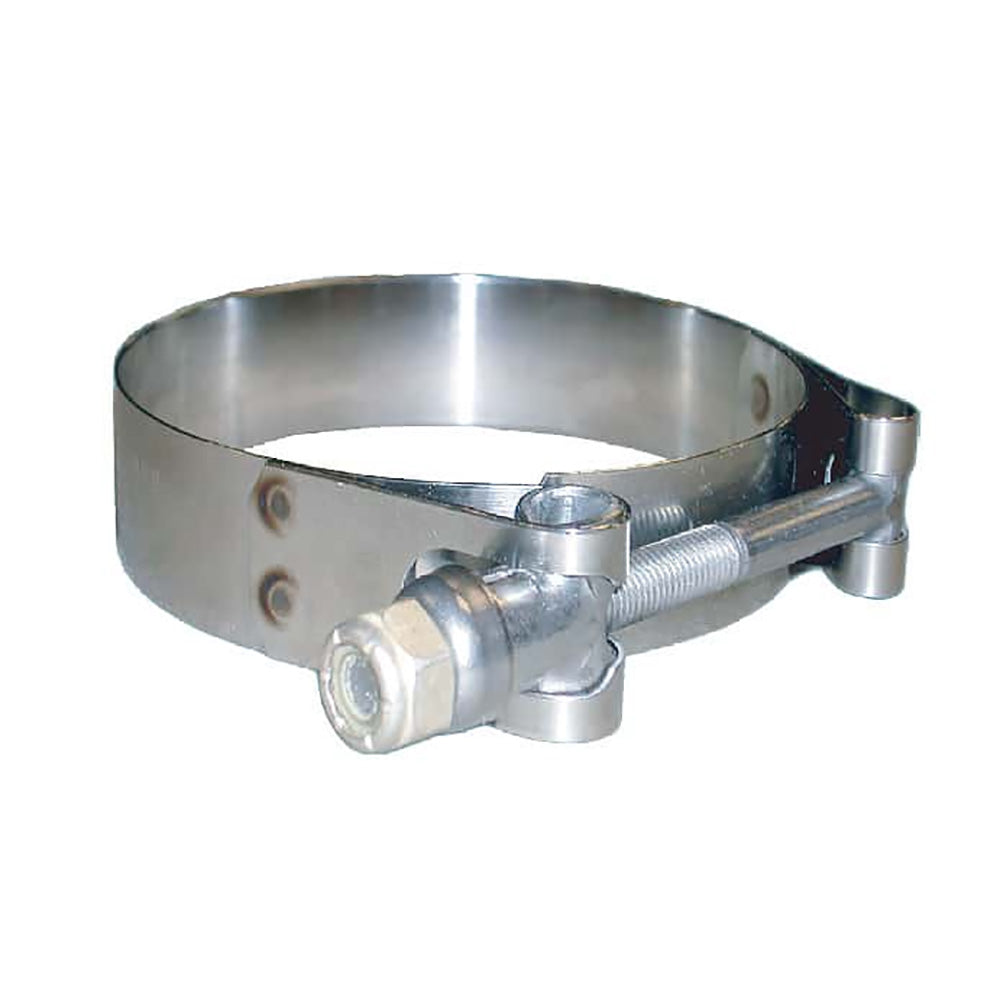

Trident Marine 316 SS T-Bolt Exhaust Hose Clamp, 3/4" Band, 2.78"-3.09" Range

Ensure critical marine connections are strong and secure with the Trident Marine Series 720 316 SS T-Bolt Clamp. Engineered with safety as a priority, this clamp is ideal for demanding applications, including wet exhaust installations and below-the-waterline connections. Its robust design provides uniform 360° clamping pressure for a positive and reliable seal, delivering peace of mind for the long haul. Backed by a 3-year warranty, this clamp is built to last. Upgrade your vessel's integrity with Trident Marine.

Key Benefits & Specifications:

• Superior Corrosion Resistance: Constructed with durable 316 stainless steel for both the band and housing, ensuring exceptional longevity in harsh marine environments.
• Secure & Positive Union: Features a 3/4-inch (19 mm) wide band that provides a greater area of coverage and uniform 360° clamping pressure, significantly reducing the risk of leaks.
• Vibration-Resistant Fastening: Equipped with an 18-8 stainless steel T-bolt and a nylon insert lock nut for a robust connection that resists loosening under vibration. Maximum torque is 75 inch-pounds.
• Versatile Fitment: Designed for hose outer diameters ranging from 2.78" to 3.09" and suitable for hose inner diameters between 2-3/8" and 2-1/2", accommodating a variety of marine hoses.
• ABYC Compliant: Meets ABYC standards for marine exhaust installations, ensuring compliance and safety.

Compatibility & Recommendations:

• Recommended for use with Silicone and PVC hose products.
• For critical installations, it is recommended that two clamps be used on each end of a wet exhaust joint to meet ABYC standards and ensure maximum security.
