Trident Marine 5/16 in. x 50 ft. Barrier Lined B1-15 Fuel Hose - Gray

The Trident Marine 305-0566 is a 5/16 in. x 50 ft. boxed, barrier-lined fuel hose designed for outboard fuel systems. Engineered for durability, this hose features a fluoroplastic internal barrier that prevents direct contact between fuel and rubber, minimizing permeation and protecting the engine from ethanol-related degradation. The gray CPE rubber cover provides resistance to heat, cold, aging, and ozone, while the flexible construction allows for easy routing and reliable fitting retention.

Key Specifications:

• Inner Diameter: 5/16 in. (7.92 mm)
• Outer Diameter: 0.500 in. (12.7 mm)
• Working Pressure: 35 psi (0.24 MPa)
• Burst Pressure: 175 psi (1.21 MPa)
• Temperature Range: -20°F to 212°F (-28°C to 100°C)
• Bend Radius: 2.5 in. (63.5 mm)

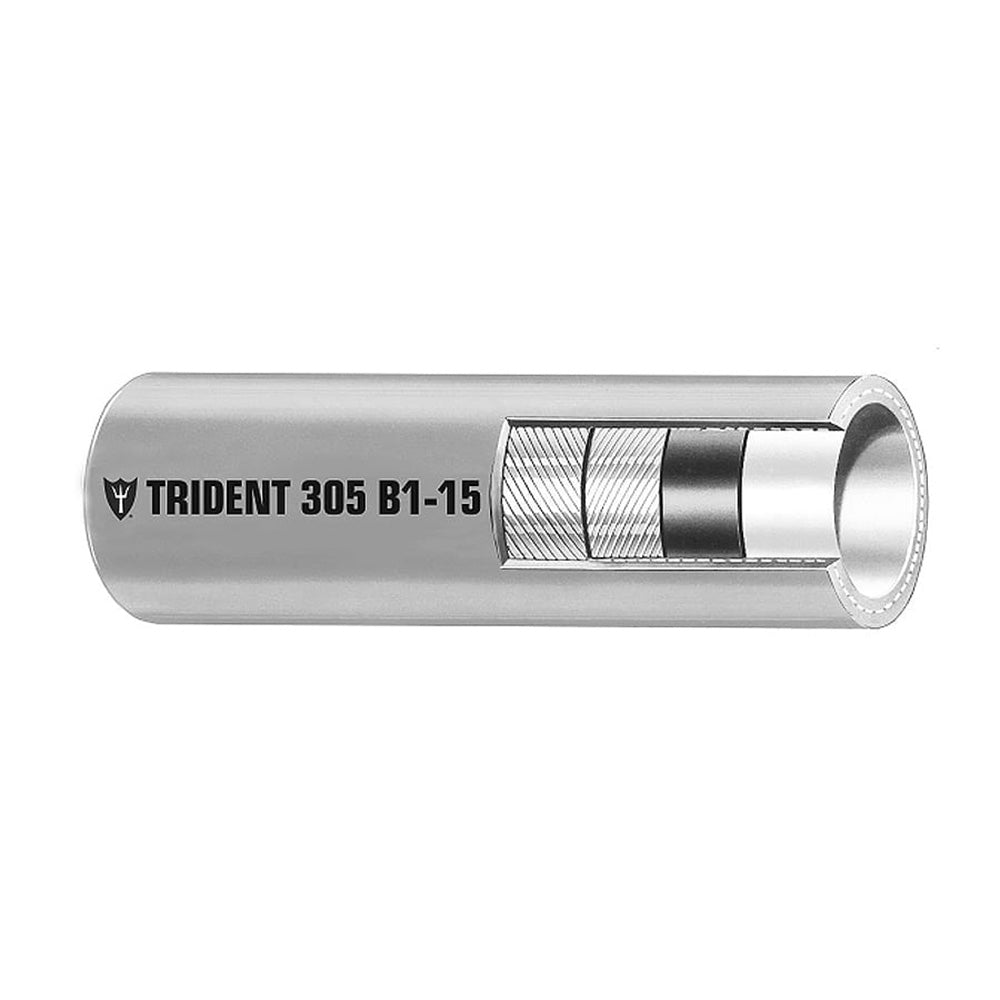

• Construction: Fluoroplastic internal barrier, 2-spiral polyester reinforcement, and gray CPE rubber cover

Certifications and Compatibility:

• Compatible with gasoline (including ethanol blends up to E85) and diesel (including biodiesel blends up to 100%)
• EPA Certified and CARB Executive Order for low permeation Type B1-15
• Meets ABYC H-24, SAE J1527, ISO 8469 B1, and USCG Type B1-15 standards
• NMMA Type Accepted and CE certified
• Suitable for fuel distribution, return, vent, and transfer applications
