Uflex USA Power A Electronic Control Package for Dual Engine, Dual Station

The Uflex USA Power A Electronic Control Package (ME22) is a sophisticated control system engineered for dual-engine and dual-station marine configurations, utilizing mechanical throttle and electronic shift functionality. This modular system features a private protocol CAN bus for reliable data transmission and supports up to four control stations.

Key System Features:

• Direct communication with electronic engines via SAE J1939 or NMEA 2000 protocols
• Plug-and-play connectivity with automatic engine synchronization
• Built-in Dock Assist and fully programmable shift delays
• Integrated LED diagnostic and programming screen

Package Includes:

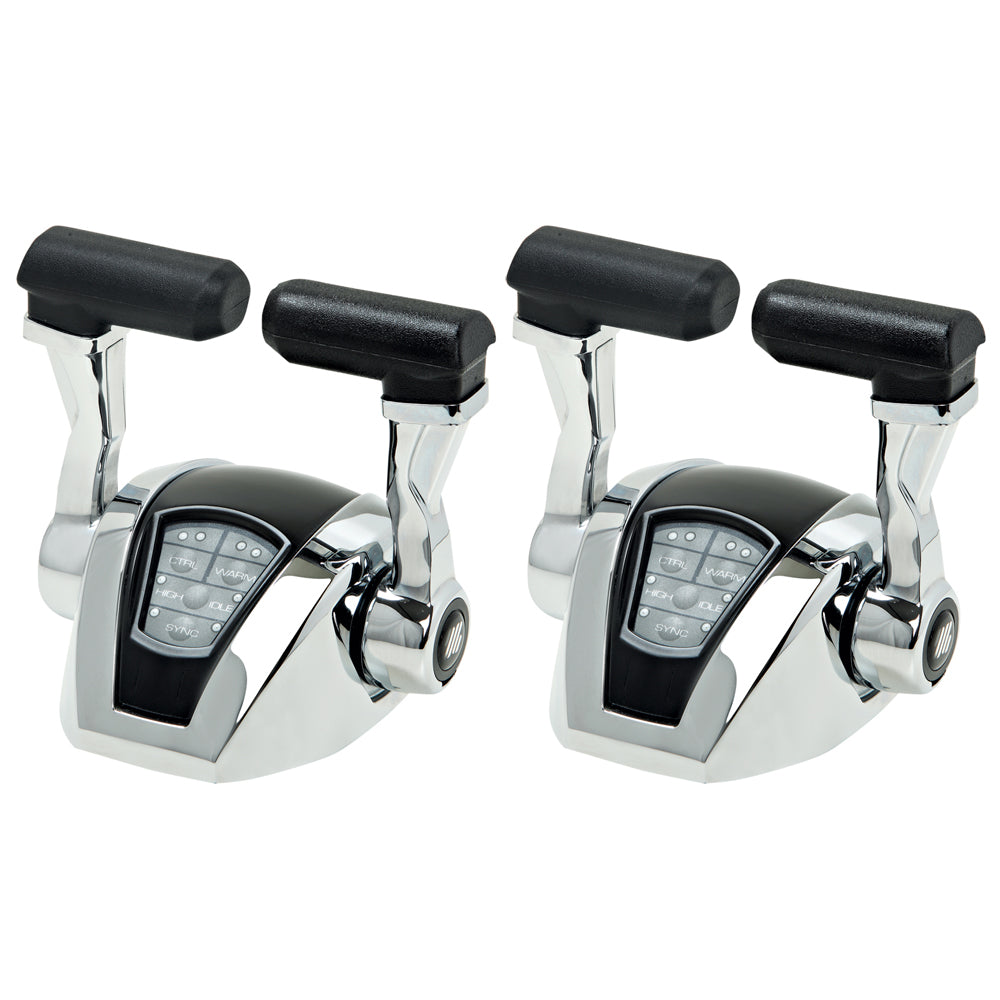

• 2 x PA2-B2 Dual Lever Control (w/o Trim)
• 1 x PA2-CU Control Unit with programming screen
• 2 x PA2-MA Electro-Mechanical Actuators
• 1 x PA2-PU Power Supply Unit (12V)
• 1 x PA2-SU Electronic Shift Unit
• 1 x PA2-NT Network Terminator
• 1 x M-P3 Main Power Supply Cable (9.8')
• 2 x CAN-10 Network Connection Cables (33')
• 3 x CAN-1 Network Connection Cables (3')
• 3 x M-PE1 Power Extension Cables (3.3')
• 2 x M-S1 Solenoid Shift Cables (3.3')
