Uflex USA Power A ME21 Electronic Control Package - Dual Engine/Single Station

The Uflex USA Power A ME21 is an electronic control package designed for dual-engine, single-station applications with mechanical throttle and electronic shift configurations. This modular system utilizes a private CAN bus protocol for secure data transmission and integrates directly with electronic engines using SAE J1939 or NMEA 2000 standards.

Key Features:

• Supports up to 4 control stations
• Plug-and-play connectivity
• Automatic engine synchronization
• Built-in dock assist functionality
• Fully programmable shift delays

Package Includes:

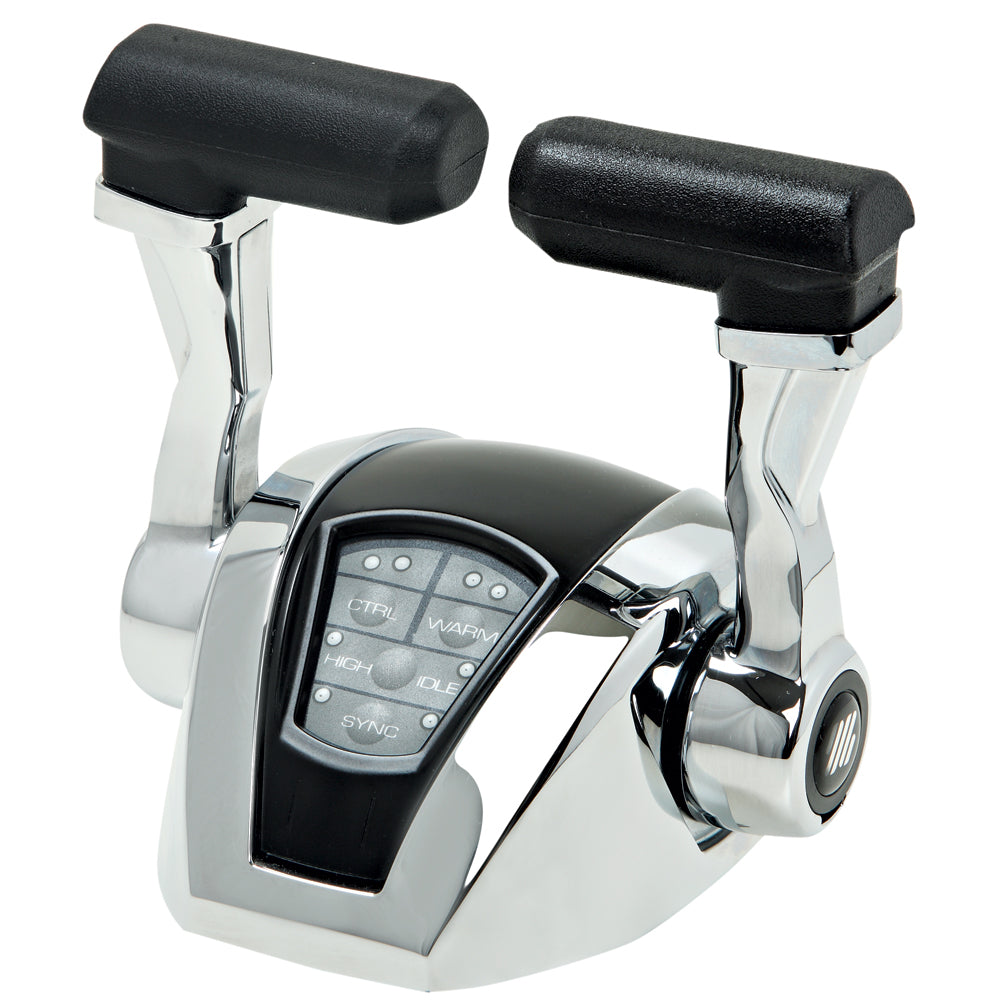

• 1 PA2-B2 Dual Lever Control (no trim)
• 1 PA2-CU Control Unit with LED diagnostic and programming screen
• 2 PA2-MA Electro-mechanical actuators for shift and/or throttle
• 1 PA2-NT Network Terminator
• 1 M-P3 Main power supply cable (9.8')
• 1 PA2-PU Power supply unit for 12V systems
• 1 PA2-SU Electronic shift unit
• 2 CAN-10 Network connection cables (33')
• 2 CAN-1 Network connection cables (3')
• 3 M-PE1 Power extension cables (3.3')
• 2 M-S1 Solenoid shift cables (3.3')
