Uflex USA Power A Electronic Control Package, Dual Engine, Single Station (MM21T)

The Uflex USA Power A Electronic Control Package (MM21T) is an advanced control system designed for dual-engine, single-station boat configurations requiring mechanical throttle and mechanical shift operation with trim control. This modular system utilizes a private protocol CAN bus for reliable data transmission and offers plug-and-play connectivity for ease of installation.

Key System Features:

• Supports connection for up to 4 control stations
• Direct communication with electronic engines via SAE J1939 or NMEA 2000
• Includes automatic engine synchronization, dock assist, and programmable shift delays
• Integrated LED diagnostic and programming screen

Package Includes:

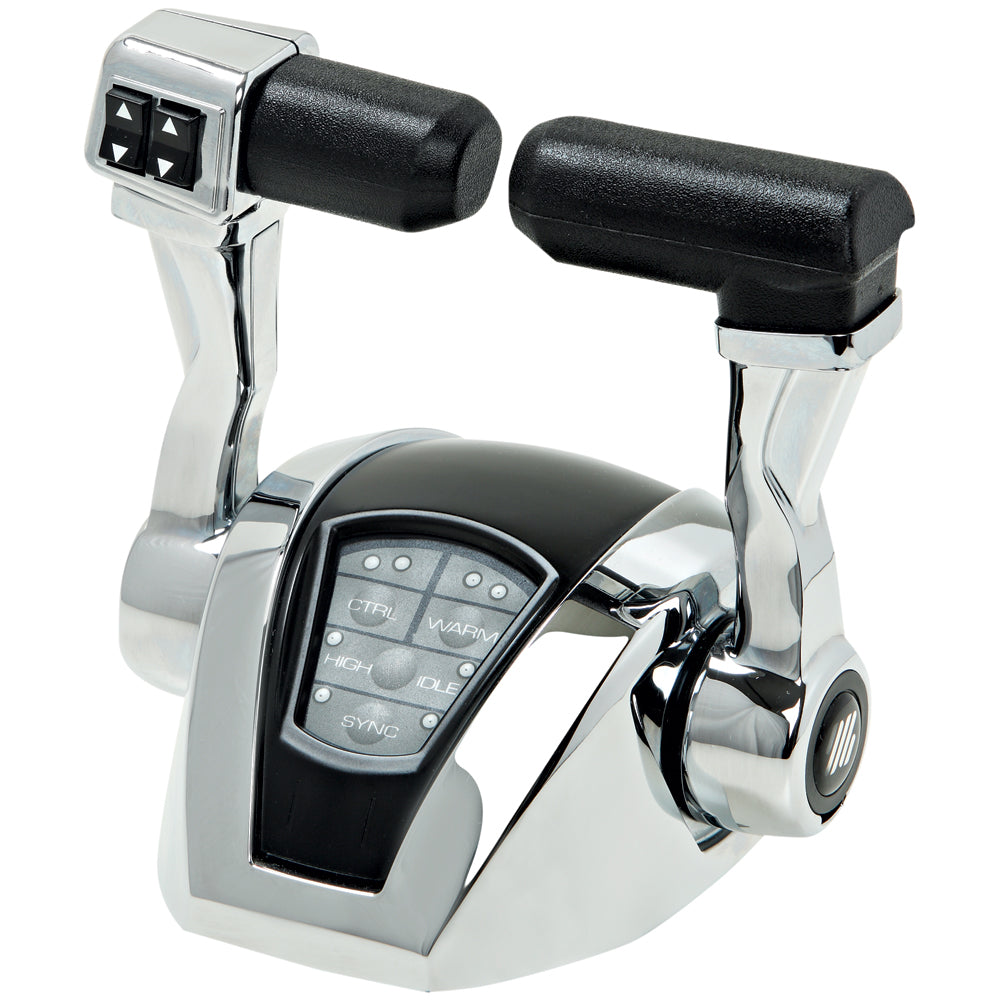

• 1 x Dual Lever Control with Trim (PA2-B2T)
• 1 x Control Unit with Diagnostic and Programming Screen (PA2-CU)
• 4 x Electro-Mechanical Actuators for Shift and Throttle (PA2-MA)
• 1 x Network Terminator (PA2-NT)
• 1 x Main Power Supply Cable, 9.8' (M-P3)
• 1 x Power Supply Unit for 12V Systems (PA2-PU)
• 2 x Network Connection Cables, 33' (CAN-10)
• 3 x Network Connection Cables, 3' (CAN-1)
• 4 x Power Extension Cables, 3.3' (M-PE1)
