Uflex USA Power A MM12 Electronic Control Package for Single Engine, Dual Station

The Uflex USA Power A MM12 is an electronic control system package designed for single-engine, dual-station marine applications with mechanical throttle and shift. The modular system utilizes a private protocol CAN bus for data transmission and supports connection of up to 4 stations. It features plug-and-play connectivity, automatic engine synchronization, and dock assist functionality, with compatibility for electronic engines via SAE J1939 or NMEA 2000 protocols.

Package Includes:

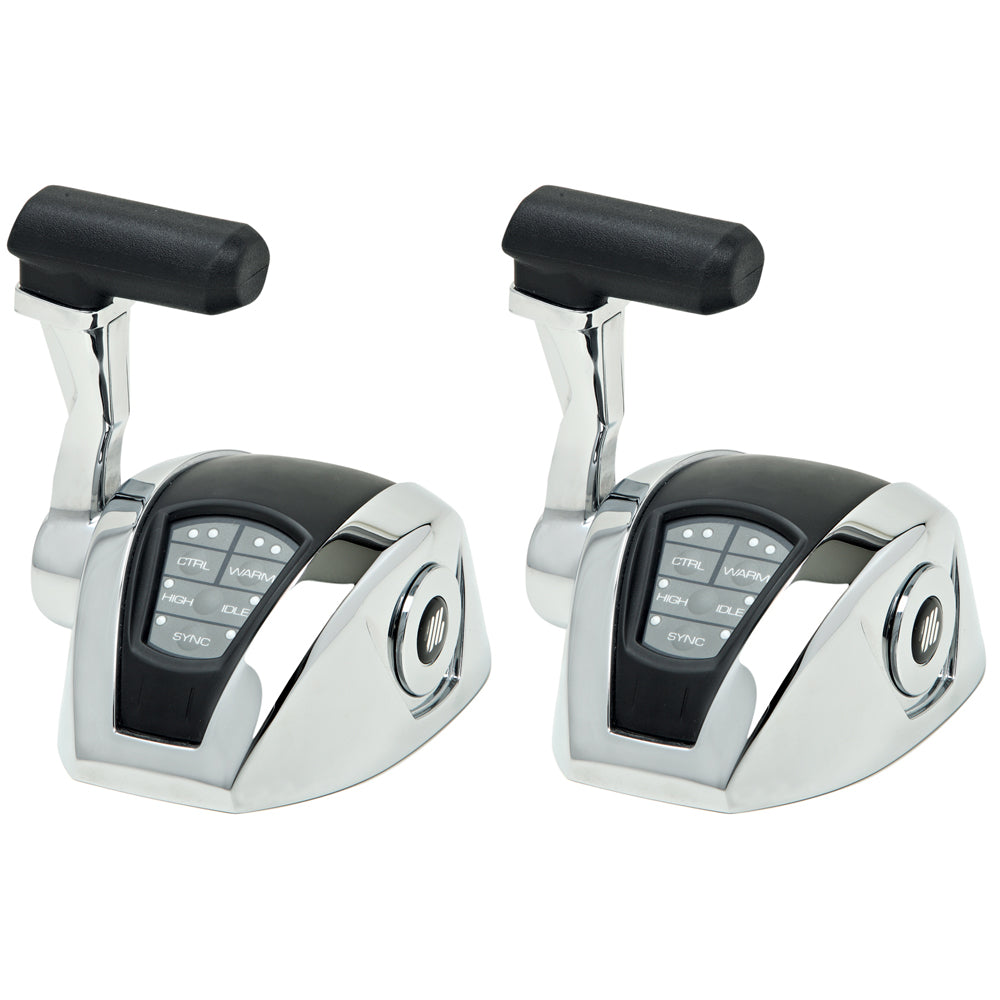

• 2 x PA2-B1 single lever controls (without trim)
• 1 x PA2-CU control unit with LED diagnostic and programming screen
• 2 x PA2-MA electro-mechanical actuators for shift/throttle
• 1 x PA2-NT network terminator
• 1 x M-P3 main power supply cable, 9.8 ft.
• 2 x CAN-10 network connection cables, 33 ft.
• 2 x CAN-1 network connection cables, 3 ft.
• 1 x PA2-PU power supply unit for 12V systems
• 2 x M-PE1 power extension cables, 3.3 ft.
