Uflex USA Power A Mark II Electronic Control Package, Single Engine/Station

Experience unparalleled control and precision with the Uflex USA Power A Mark II Electronic Control Package. Engineered for seamless operation on single-engine, single-station vessels, this system expertly converts mechanical throttle input to electronic shift output, delivering responsive and intuitive command over your marine propulsion. Upgrade to digital reliability for smoother, more efficient boating.

In the Box:

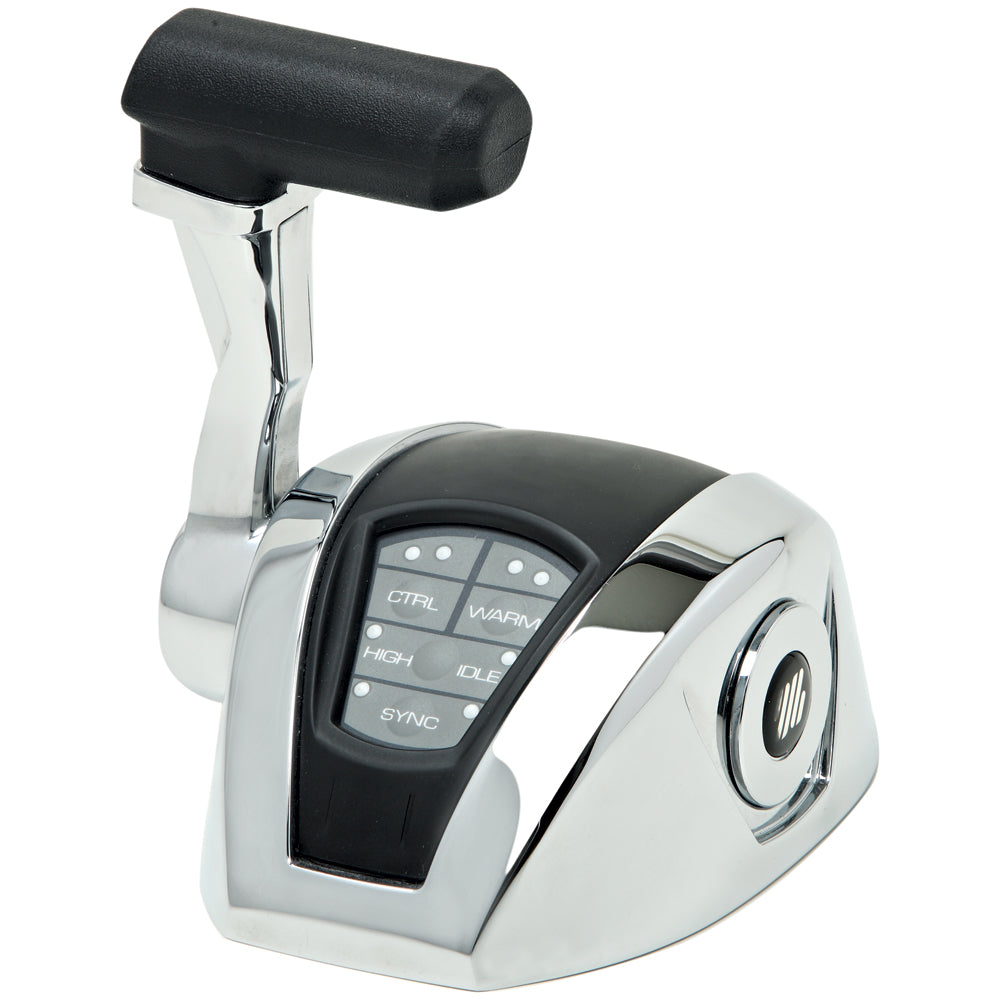

• (1) PA2-B1 - Single Lever Control w/o Trim (42009G)
• (1) PA2-CU - Control Unit w/LED Diagnostic & Programming Screen (42017F)
• (1) PA2-MA - Electro-Mechanical Actuator for Shift and/or Throttle (42027J)
• (1) PA2-NT - Network Terminator (42028L)
• (1) M-P3 - Main Power Supply Cable, 9.8' (42053K)
• (1) CAN-10 - Network Connection Cable, 33' (71021K)
• (2) CAN-1 - Network Connection Cable, 3' (73639T)
• (1) PA2-PU - Power Supply Unit for 12V Systems (42026G)
• (2) M-PE1 - Power Extension Cable, 3.3' (42056S)
• (1) PA2-SU - Electronic Shift Unit (42023A)
• (1) M-S1 - Solenoid Shift Cable, 3.3' (42060G)

Key Benefits & Features:

• Fingertip Control: Enjoy effortless and precise operation of throttle and shift levers, enhancing your command at sea.
• Digital Data Transmission: Utilizes a private protocol CAN bus for reliable and accurate data communication.
• Engine Compatibility: Features direct communication with electronic engines via SAE J1939 or NMEA 2000, ensuring broad compatibility.
• Enhanced Maneuverability: 'Dock Assist' functionality reduces throttle sensitivity for superior control in tight docking situations.
• Optimized Performance: 'RPM Synchronization' minimizes engine vibration and improves fuel efficiency during cruising.
• Cold Start Management: Includes a 'High Idle' feature for increased RPM during cold engine operations or when needed.
• Safety Assurance: Incorporates a 'Start-in-Gear Protection' safety device to prevent accidental engine starts while in gear.
• Modular & Expandable: Designed as a modular system, allowing for connection of multiple control stations up to four (ME11 is for single station).
• Diagnostic Feedback: Provides audible and visual diagnostic failure alarms with clear messages on the control unit display.
• Certified Reliability: Meets rigorous CEI EN 60945 and UNI-EN ISO 11547 international standards for marine equipment.

Compatibility & Pairings:

This system is designed to seamlessly integrate with a wide range of mechanically controlled, electronic, and electro-hydraulic gas and diesel inboards, sterndrives, and outboards.
